Xinje XDH Series User Manual

296
6-5 Read write serial port parameters
In addition to modifying communication parameters through serial configuration panel, it can
also be realized by reading instruction [CFGCR] of serial parameters and writing instruction
[CFGCW] of serial parameters.

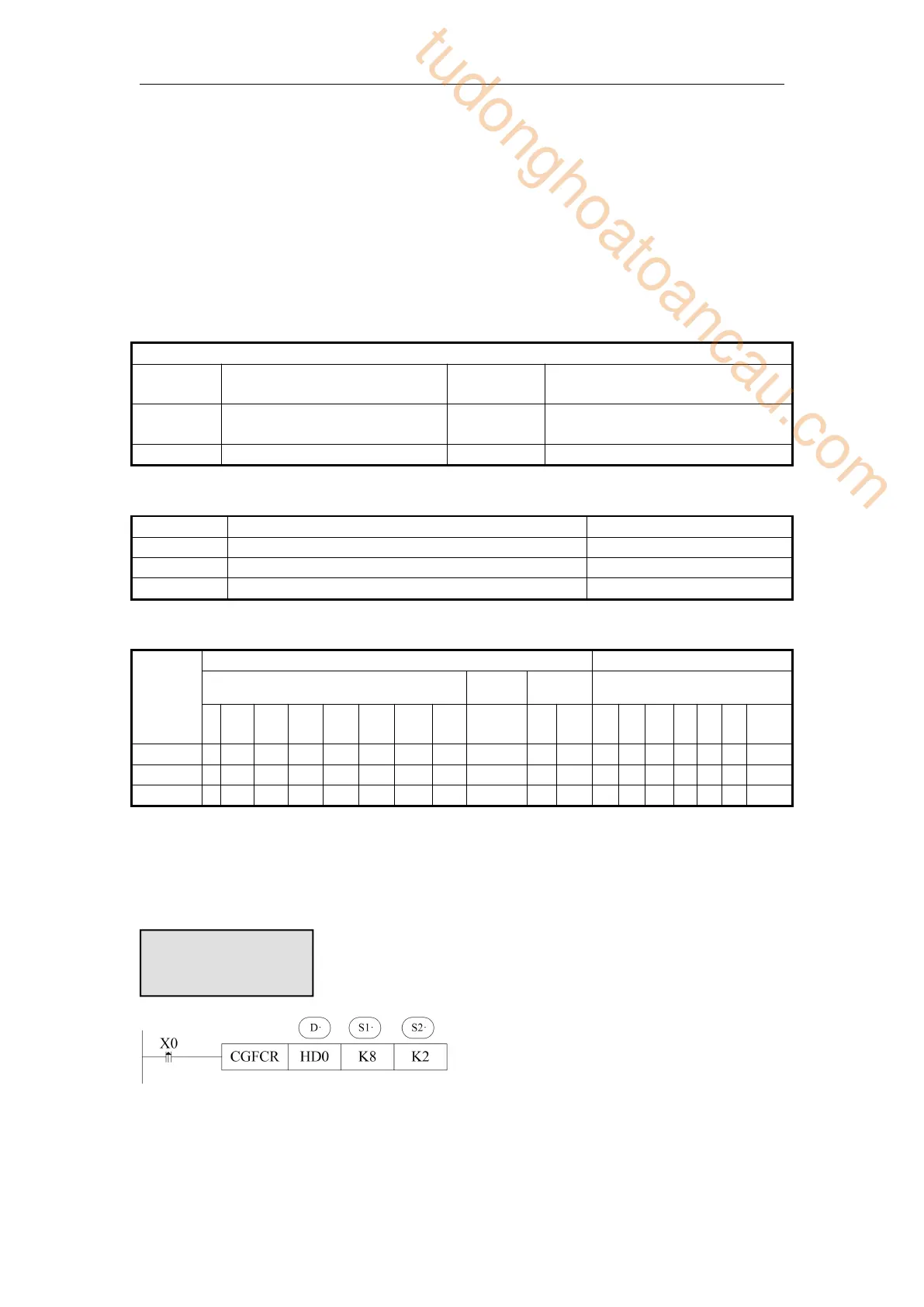

6-5-1 Read serial port parameters [CFGCR]
1)Summary
Read the serial port parameters to local specified registers.
Read serial port parameters[CFGCR]
16-bit
instruction
CFGCR
32-bit
instruction
-
Execution
condition
Normally ON/OFF, rising
edge triggering
Suitable
model
XD, XL
Hardware
-
Software
V3.4 and higher version
2)Operands
Operand s
Function
Type
D
Local register starting address
16-bit, BIN
S1
Read serial port parameters number
16-bit, BIN
S2
Serial port no.
16-bit, BIN
3)Suitable soft component
Operands
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
D
●
S1
●
●
●
S2
●
K
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
 Operator S1: The number of registers used to read serial parameters is generally 8
(XD5E/XDME series is 9).
 Operator S2: Serial port range: K0 ~ K5. K0: Port0, K1: Port1, K2: Port2 or Port2-
RS232 or Port2-RS485, K3: Port3, K4: Port4, K5: Port5.
Function and action
