Xinje XDH Series User Manual

162
Ignore the 1 of bit 2
Ignore the 1 in bit2,
bit5, bit8, bit10, bit12
 If multiple bits in the source address is 1, the low side is ignored, and if the source address is
0, the instruction will not be executed.
 When the driver input is OFF, the instruction is not executed and the coding output is
unchanged.
 When n ≤ 3, the high 8 bits in D0 are neglected.

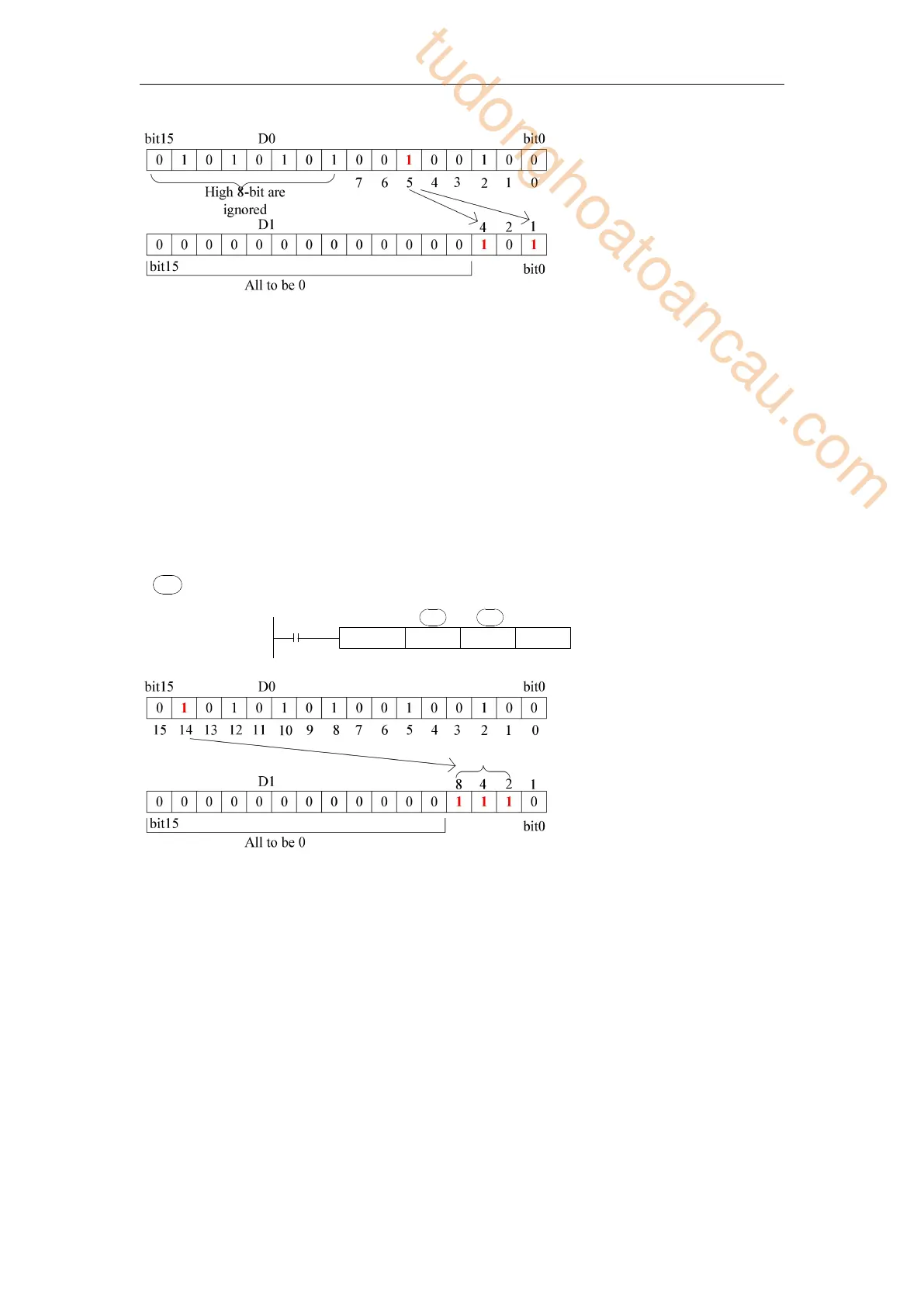

 When n=3, the encoding object has 2
3
= 8 bits, that is, bit7 ~ bit0 in D0. The encoding result
is stored in the lower 3 bits in D1, that is, bit2 ~ bit0.
 When bit5 and bit2 in D0 are both 1, bit2 is ignored, and bit5 is coded, bit2-bit0 represent 5,
bit2 and bit0 are 1.
< is word soft component > n≤4
D0ENCO D1 K4
X1
n
S· D·
 If the number of bits in the source address is 1, the low side is ignored, and if the source
address is 0, the instruction will not be executed.
 When the driver input is OFF, the instruction is not executed and the coding output is
unchanged.
 n = 4, the encoded object has 2
4
=16 bits, that is, bit15 ~ bit0 in D0. The encoding result is
stored in the lower 4 bits in D1, that is, bit3 ~ bit0.
 The highest bit of 1 in D0 is bit14, ignoring all low bits 1, and encoding bit14, bit3-bit0
represent 14, bit3, bit2 and bit1 are 1.
4-8-15 Low bit coding [ENCOL]
1) Summary
Find the position where the low bit is ON.
S·
