Xinje XDH Series User Manual

188

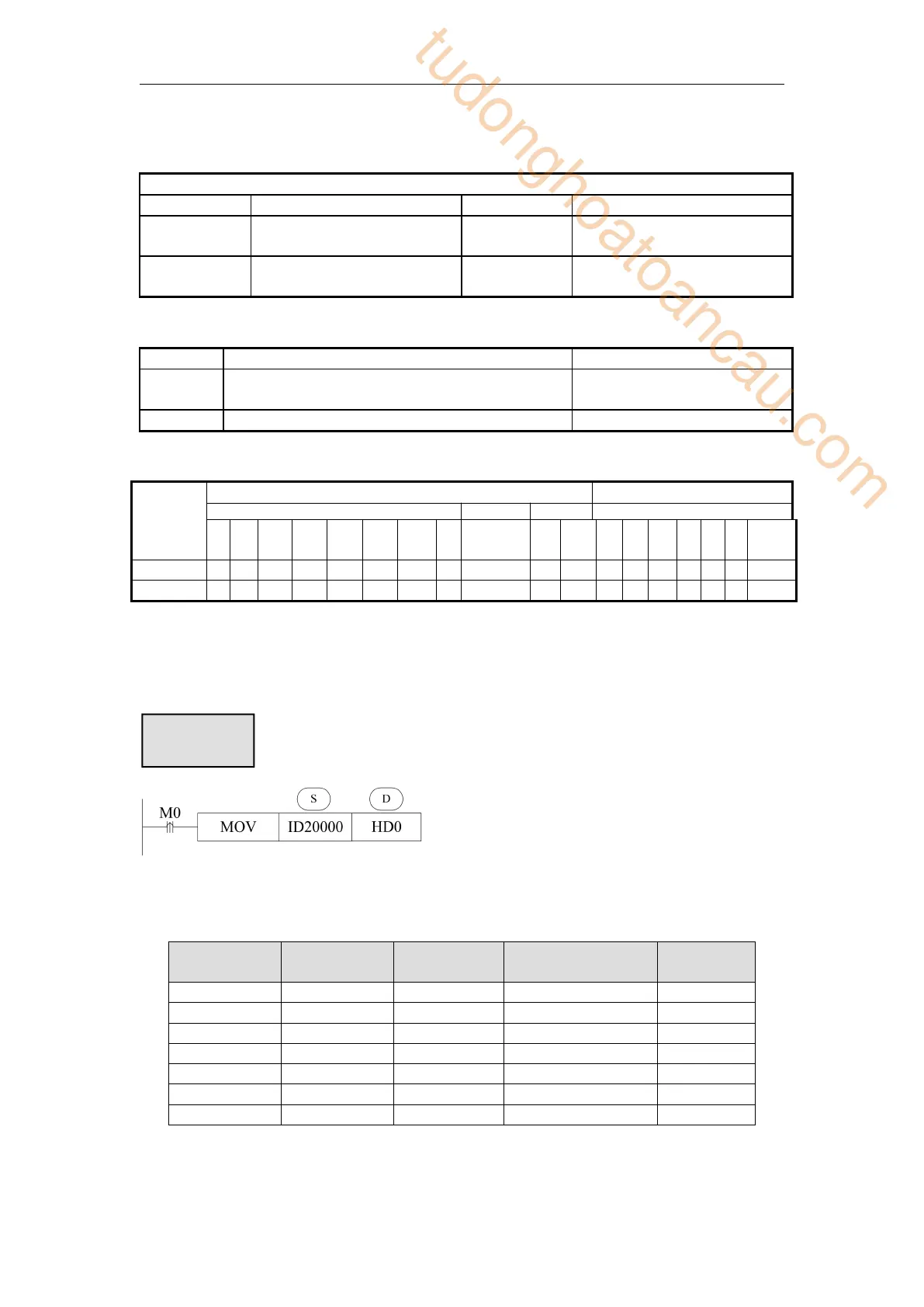

4-10-3 Accurate clock BD board data read [MOV]
1) Summary
Accurate clock BD board data read [MOV]
16 bits
MOV
32 bits
-
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
Version V3.4.6 (or V3.5.3a)
or later
Software
requirement
Version V3.5.3 or later
2) Operands
Operands
Function
Data Type
S
Soft component address of the clock data to
read
16 bits, BIN
D
Register address to save clock data
16 bits, BIN
3) Suitable soft components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.m
S
●
D
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
When M0 is turned on, the "second" in XD-RTC-BD of clock #1 is read into the HD0 register
of PLC.
 The data address of The BD board XD-RTC-BD is shown as follows.
#1 BD board
address
#2 BD board
address
Description
Clock Data
Remark
ID20000
ID20100
Second
0~59
Decimal
ID20001
ID20101
Minute
0~59
Decimal
ID20002
ID20102
Hour
0~23
Decimal
ID20003
ID20103
Date
1~31
Decimal
ID20004
ID20104
Month
1~12
Decimal
ID20005
ID20105
Year
00~99
Decimal
ID20006
ID20106
Week
0 (Sun.)-6 (Sat.)
Decimal
 Since the time in ID register is stored in the order of second, minute, hour, day, month, year,
