Xinje XDH Series User Manual

64
Y6
M100
X5
X6
M11
Y6 M4 X7
M12
M13

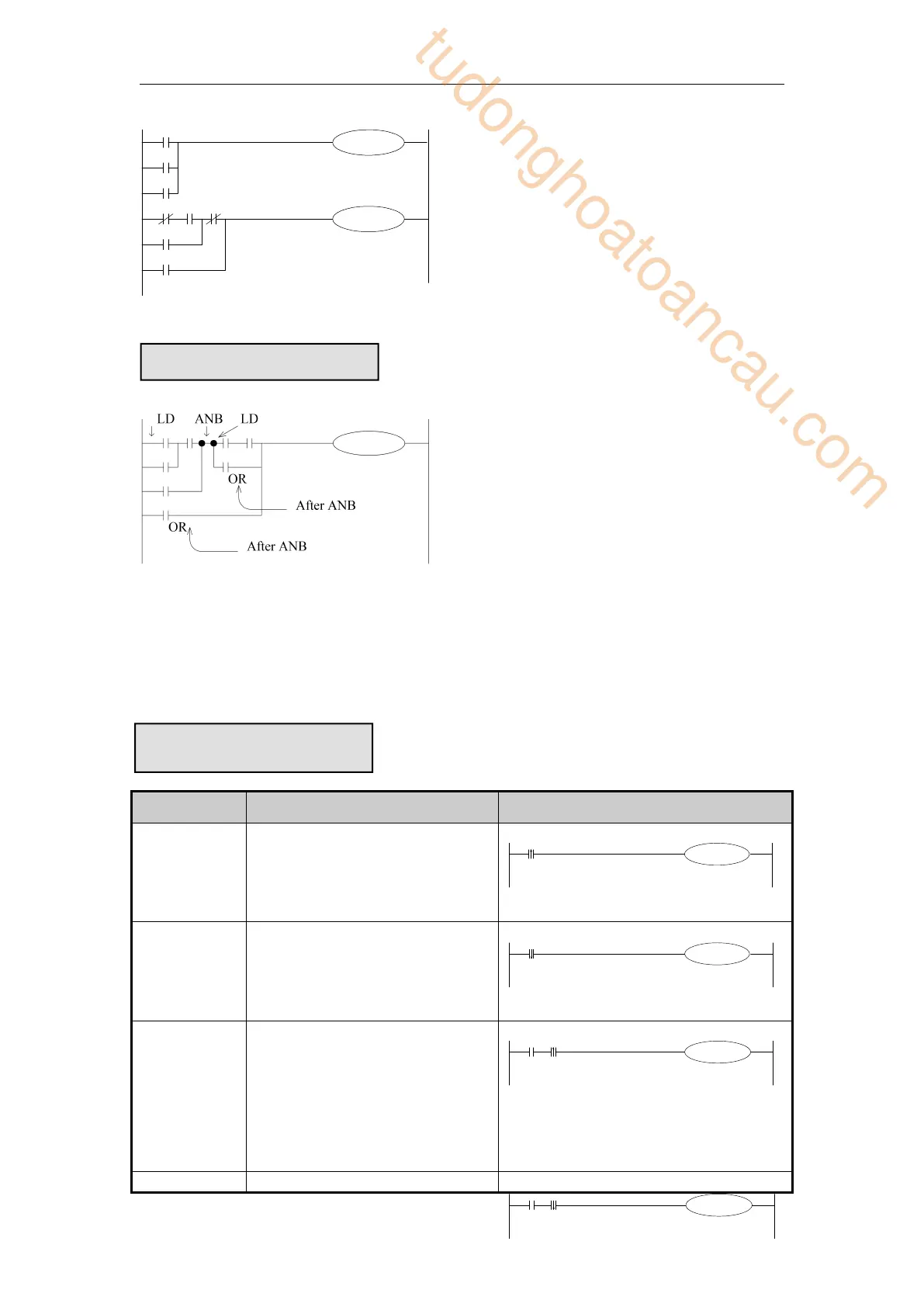

3-5 [LDP] , [LDF] , [ANDP] , [ANDF] , [ORP] , [ORF]
Mnemonic
Function
Format and Operands
LDP
(LoaD Pulse)
Initial logical operation-Rising
edge pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
LDF
(LoaD Falling
pulse)
Initial logical operation
Falling/trailing edge pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ANDP
(AND Pulse)
Serial connection of Rising edge
pulse
X,Y,M,HM,SM,S,HS,T,HT,C,HC,Dn.m
ANDF
Serial connection of
The parallel connection with OR, ORI
instructions should connect with LD,
LDI instructions in principle. But behind
the ANB instruction, it’s still ok to add a
LD or LDI instruction.
LD
X5
OR
X6
OR
M11
OUT
Y6
LDI
Y6
AND
M4
OR
M12
ANI
X7
OR
M13
OUT
M100
Relationship with ANB
Mnemonic and Function
M0
M0
M0
M0
