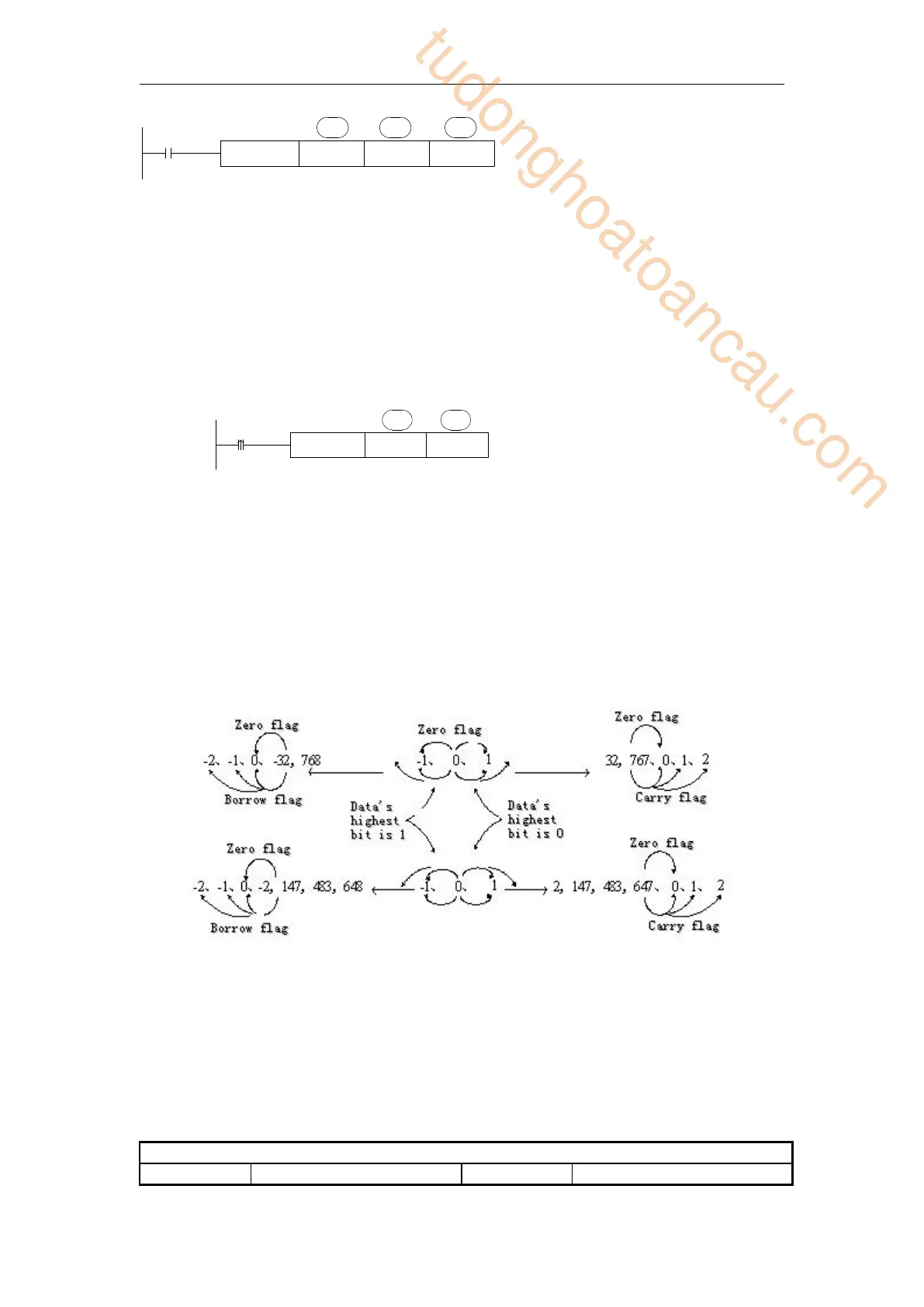

SUB D10 D12 D14
X0
S1· S2· D·
 S1 appoint the soft unit’s content, subtract the soft unit’s content appointed by S2
algebraically. The result will be stored in the soft unit appointed by D.
 The action of each flag, the setting method of 32/64 bits operation’s soft units are both the
same with the preceding ADD instruction.
 The importance is: in the preceding program, if X0 is ON, SUB operation will be executed
every scan cycle.
 Refer to chapter 4-6-1 for flag action and functions.
<Two operands>
SUB D10 D12
X0
S1·D·
 D appoint the soft unit’s content, subtract the soft unit’s content appointed by S1
algebraically. The result will be stored in the soft unit appointed by D.
 The action of each flag, the setting method of 32/64 bits operation’s soft units are both the
same with the preceding ADD instruction.
 The importance is: in the preceding program, if X0 is ON, SUB operation will be executed
every scan cycle. Rising or falling pulse edge is recommended to activate the instruction.
 Refer to chapter 4-6-1 for flag action and functions.The relationship of the flag’s action and
vale’s positive/negative is shown below:
Note: The addresses of the operands in the QSUB instruction must be even.
4-6-3 Multiplication [MUL, DMUL, QMUL]
1)Summary
Multiply two numbers, store the result
Multiplication [MUL, DMUL, QMUL]
16 bits
MUL
32 bits
DMUL
(D10) — (D12) → (D14)
(D10) — (D12) → (D10)
