Xinje XDH Series User Manual

212
requirement
requirement
2)Operands
Operands
Function
Type
S
Specify HSC code (Eg. HSC0)
32 bits, BIN
D
Specify the comparison value (Eg. K100, D0)
32 bits, BIN
3)Suitable Soft Components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
FD
TD
CD
DX
DY
DM
DS
K/H
ID
QD
X
Y
M
S
T
C
Dn.m
S1
Only can be HSC
S2
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD;
DM includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM；S includes S,HS；
T includes T,HT；C includes C, HC.

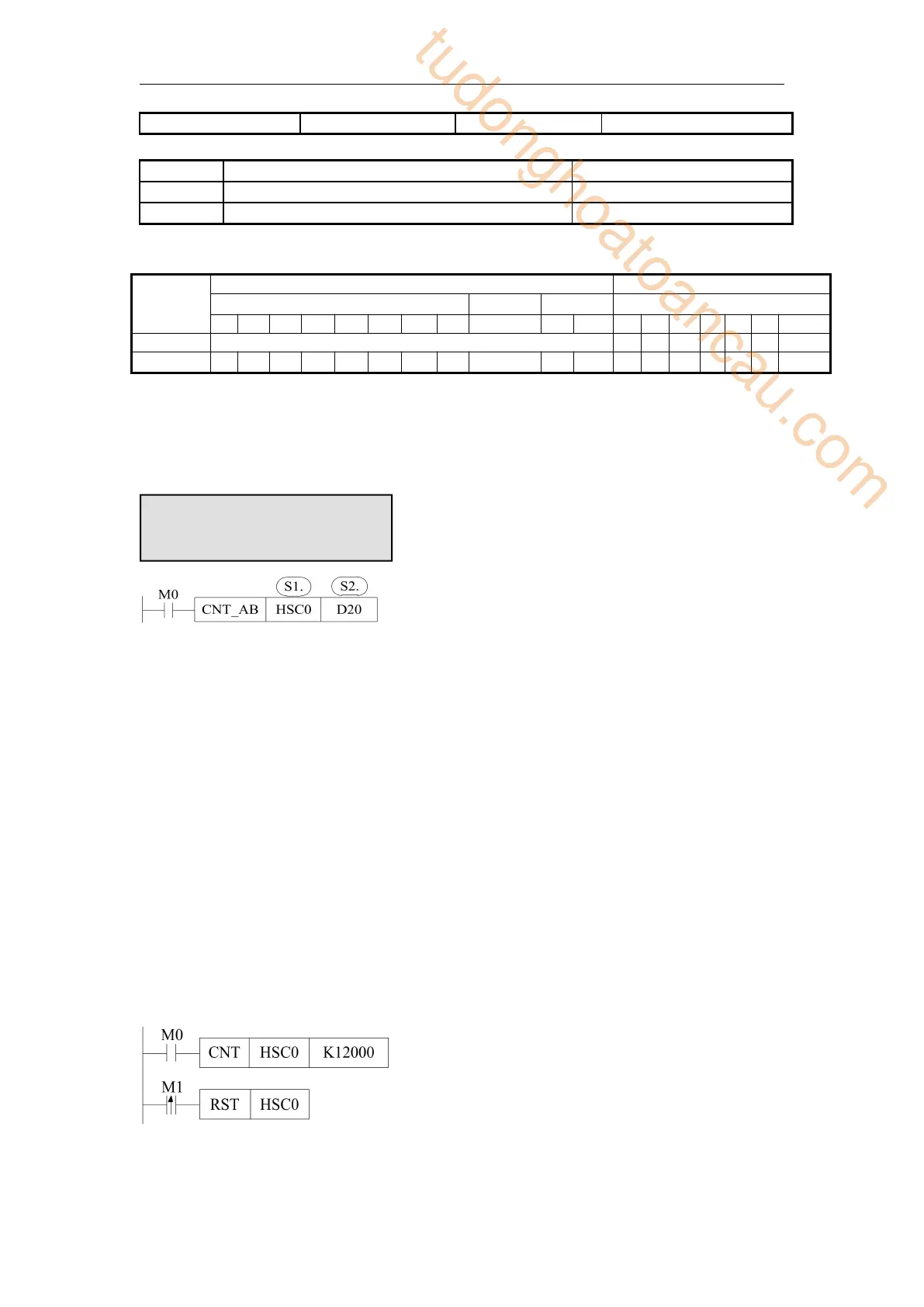

 When M0 is on, HSC0 counts X0, X1 signal in AB phase mode, compares the high-speed
counting value with the value set in register D20. When the high-speed counting value is
equal to the set value, HSC0 coil is set on immediately, and the counting value is
accumulated in HSCD0 (double words).
 If the driving condition M0 is not disconnected, HSC0 will remain on state and continue
counting, and the counting value in HSCD0 will continue to accumulate.
 If the driving condition M0 is disconnected, HSC0 will remain on state and the counting
value in HSCD0 will remain unchanged.
 During the counting process, if M0 is disconnected and connected again, the values in
HSCD0 will continue to accumulate after the last counting value.
 In the counting process, if the setting value in D20 changes and the current counting value
is less than the new setting value, then the new setting value is compared.
5-7-3 HSC reset [RST]
The reset mode of high-speed counter is software reset mode.
FUNCTIONS AND ACTIONS
