371

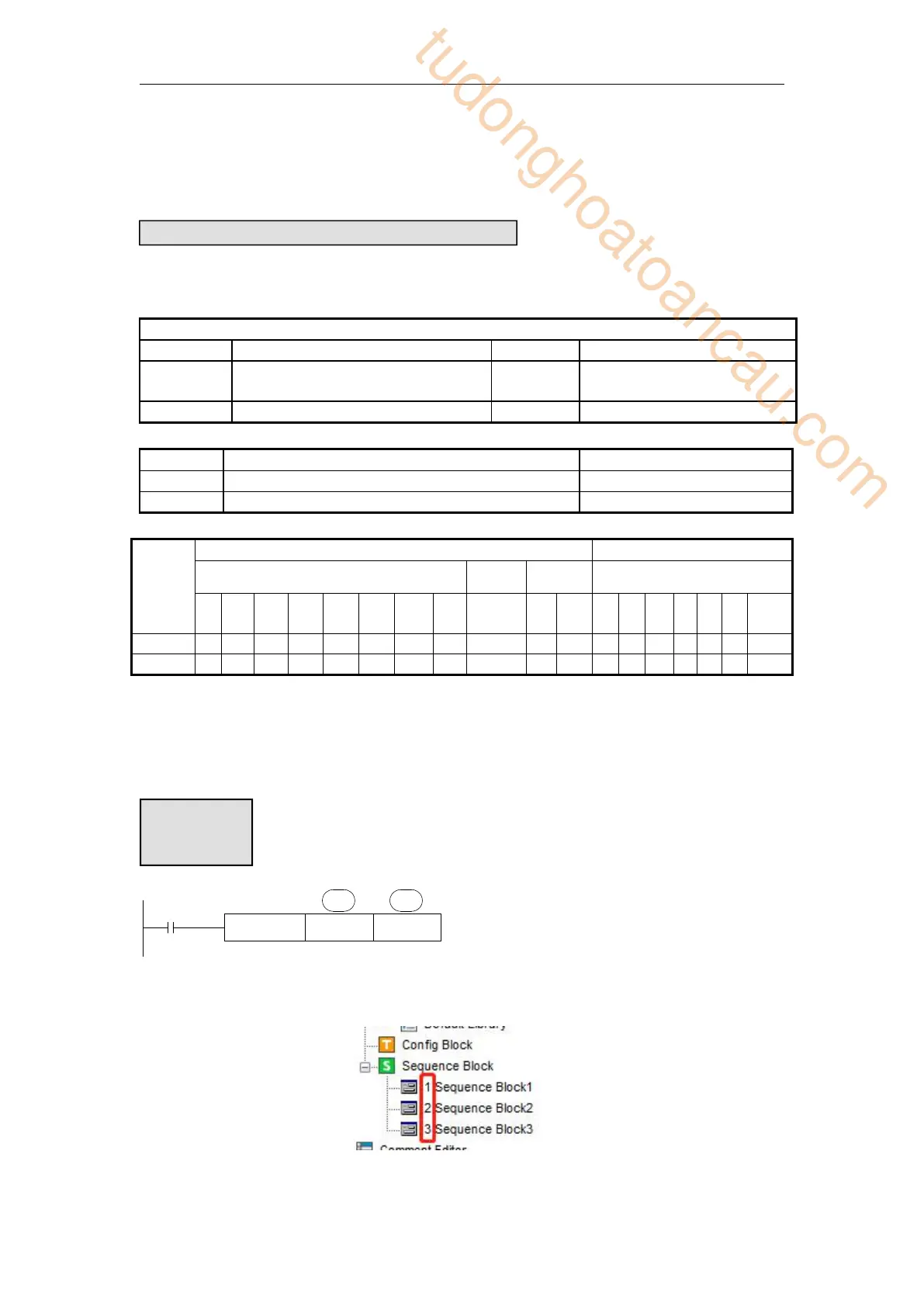

9-6 BLOCK related instructions
9-6-1 Instruction explanation
Stop running the BLOCK [SBSTOP]
1)Summary
Stop the instructions running in the block
[SBSTOP]
16 bits
SBSTOP
32 bits
-
Condition
NO,NC coil and pulse edge
Suitable
types
XD, XL
Hardware
Software
V3.2
2)Operands
Operand
Function
Type
S1
The number of the BLOCK
16bits, BIN
S2
The mode to stop the BLOCK
16bits, BIN
3)Suitable component
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S1
S2
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SMS includes S,HST
includes T,HTC includes C, HC.
S1 is the block number of sequence block. The block number is unique and cannot be
changed. It can be viewed in the left engineering bar as follows.
S2 is the mode for BLOCK stop, operand: K0, K1, K2
Function
SBSTOP K1 K0
M1
S1·
S2·
