<64 bits instruction>

An instruction to convert binary integer values to binary floating-point values. Constants
K and H are automatically converted in each floating-point operation instruction, and
FLT instruction can not be used.
 The inverse transformation of this instruction is DINTD/QINTD.


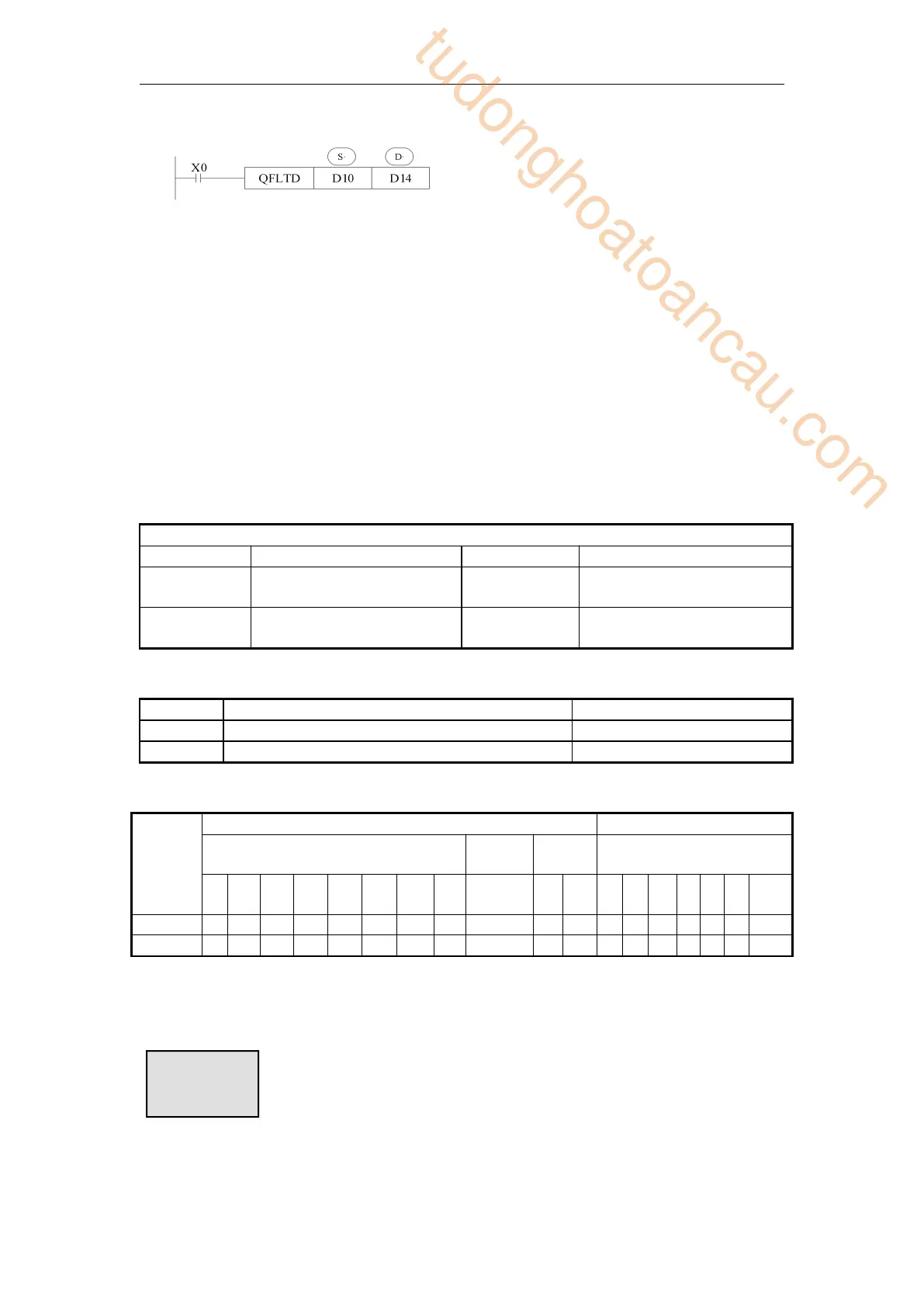

QFLTD instruction converts 64-bit integer to 64-bit floating-point number. (Note: the
address of the operand in the QFLTD instruction must be even.)
 The S operand of the QFLTD instruction does not support constant K/H.
4-8-5 Float point converts to integer [INT, DINT]
1)Summary
Floating point converts to integer [INT, DINT]
16 bits
INT
32 bits
DINT
Execution
condition
Normally ON/OFF,
rising/falling edge
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
2) Operands
Operands
Function
Data Type
S
Source soft element address
16 bits/32 bits, BIN
D
Target soft element address
16 bits/32 bits, BIN
3) Suitable soft components
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Modul
e
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
●
D
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
Description
(D13,D12,D11,D10)→(D17,D16,D15,D14)
BIN integer Binary float point
