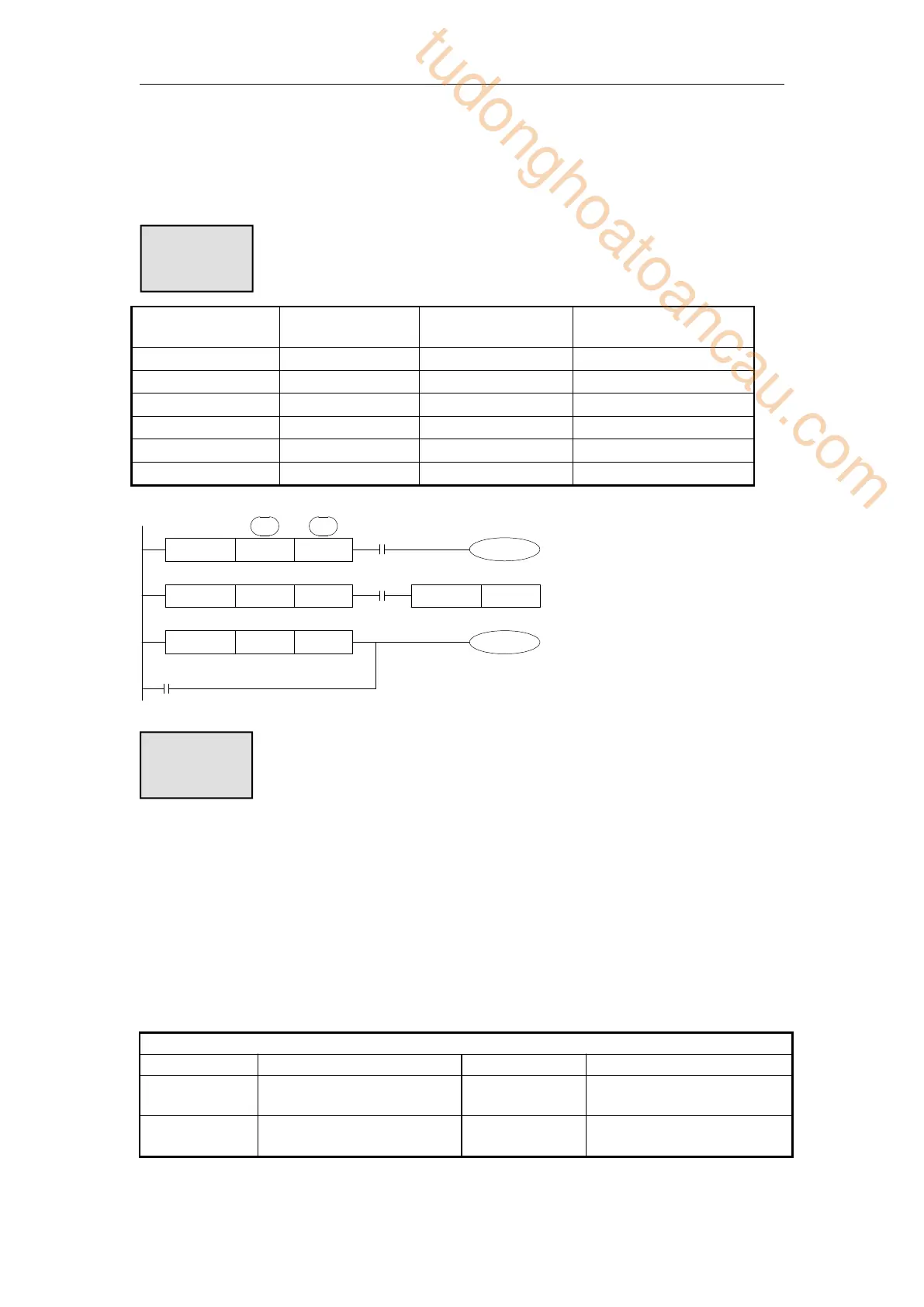

Xinje XDH Series User Manual

98
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M,HM,SM
；
S includes S,HS
；
T
includes T,HT
；
C includes C, HC.
16 bits instruction
32 bits
instruction
Activate Condition
Not Activate Condition
LD＝
DLD＝
(S1)＝(S2)
(S1)≠ (S2)
LD＞
DLD＞
(S1)＞ (S2)
(S1)≤ (S2)
LD＜
DLD＜
(S1)＜ (S2)
(S1)≥ (S2)
LD＜＞
DLD＜＞
(S1)≠ (S2)
(S1)＝ (S2)
LD
＜＝
DLD
＜＝
(S1)≤ (S2)
(S1)
＞
(S2)
LD
＞＝
DLD
＞＝
(S1)≥ (S2)
(S1)
＜
(S2)
LD＞
D200 K-30 SET Y1
DLD＞
K68899 C300 M50
X1
M4
S1·
S2·
LD= K100 C0 Y0
X0
 When the source data’s highest bit (16 bits: b15,32 bits: b31) is 1, the data is seemed to a
negative number.
 The comparison of32 bits counter should use32 bits instruction. If using16 bits instruction,
the program or operation will be error.
4-4-2 Serial Compare [AND]
1)Summary
AND: serial connection comparison instruction.
AND Compare [AND]
16 bits
As Below
32 bits
As Below
Execution
condition
Normally ON/OFF coil
Suitable
Models
XD, XL
Hardware
requirement
-
Software
requirement
-
2)Operands
Description
Note Items
