Xinje XDH Series User Manual

145
2) Operands
Operands
Function
Data Type
S
Specify the source data or register’s address
code
32 bits ,BIN
D
Specify the target soft component’s address
code
64 bits ,BIN
N
Specify the value of the transfer point
16 bits ,BIN
3) Suitable soft components
Operan
ds
Word soft elements
Bit soft elements
System
Consta
nt
Modul
e
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
I
D
Q
D
X
Y
M
S
T
C
Dn.
m
S
●
●
D
●
n
●
●
●
●
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.

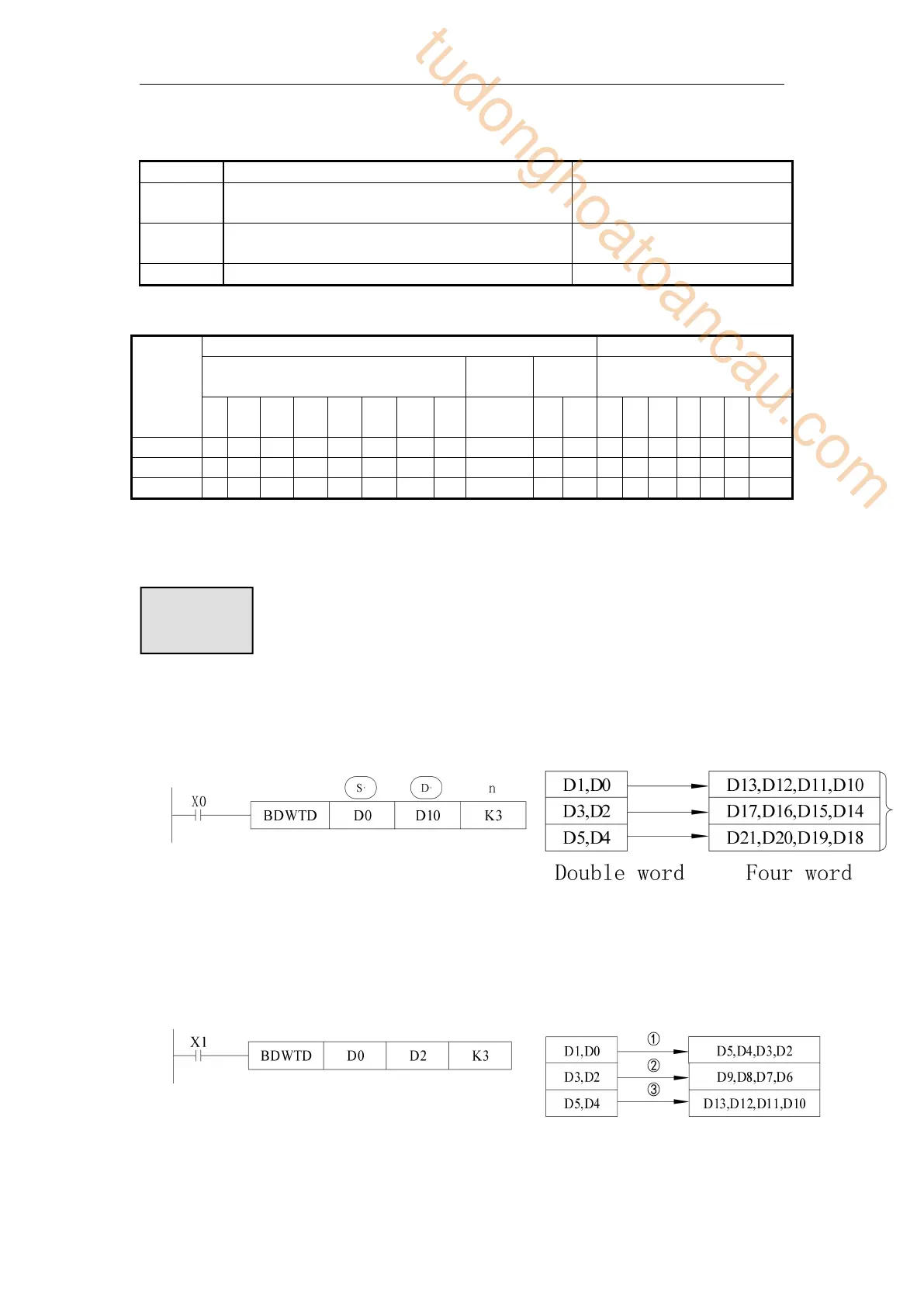

 Converts n-point data starting with the source-specified soft element to n-point soft element
starting with the target-specified soft element as a data block. (When the soft component
number range is exceeded, convert to the extent possible).
 According to the method of overlapping numbering, the commands are automatically
transmitted in the order of ① to ③ in order to prevent the transmission source data from
being overwritten when the transmission number ranges overlap as shown in the figure below.
Note: The address of the four-word integer register in the BDWTD instruction must be even.
Description
