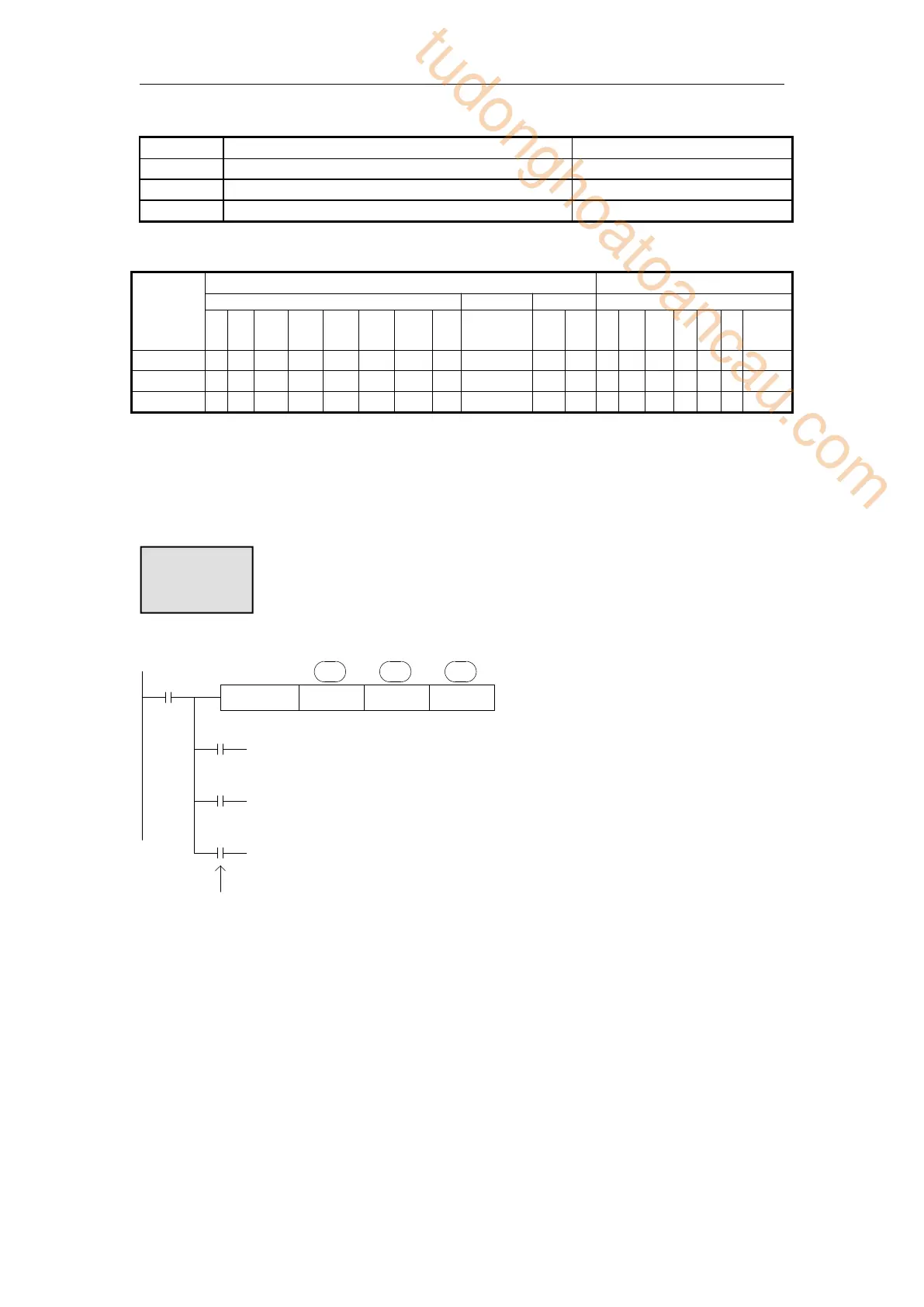

Xinje XDH Series User Manual

168
2) Operands
Operands
Function
Data Type
S1
Soft element address need compare
32/64 bits, BIN
S2
Soft element address need compare
32/64 bits, BIN
D
Compare result
bit
3) Suitable soft components
Operands
Word soft elements
Bit soft elements
System
Constant
Module
System
D
F
D
T
D
C
D
D
X
D
Y
D
M
D
S
K/H
ID
Q
D
X
Y
M
S
T
C
Dn.m
S1
●
●
●
●
●
●
●
S2
●
●
●
●
●
●
●
D
●
●
●
*Notes: D includes D, HD; TD includes TD, HTD; CD includes CD, HCD, HSCD, HSD; DM
includes DM, DHM; DS includes DS, DHS. M includes M, HM, SM; S includes S, HS; T
includes T, HT; C includes C, HC.
<32 bits operation>
ECMP D10 D20 M0
M0
M1
M2
X0
D·S1· S2·

The instruction will compare the two source data S1 and S2. The result is stored in three bits
from D.

Before the instruction is executed, the comparison data must be all floating numbers (if it is
an integer, it can be converted by FLT instructions); otherwise, the execution result will be
wrong.

If a constant K or H used as source data, the value is converted to floating value.
(D11,D10):(D21,D20) → M0,M1,M2
Binary FloatingBinary Floating
Description
(D11,D10) > (D21<D20)
Binary Floating Binary Floating
(D11,D10) = (D21<D20)
Binary Floating Binary Floating
(D11,D10) < (D21<D20)
Binary Floating Binary Floating
When X0 is OFF, even ECMP doesn’t run, M0~M2 will keep the
status before X0 is OFF.
