218

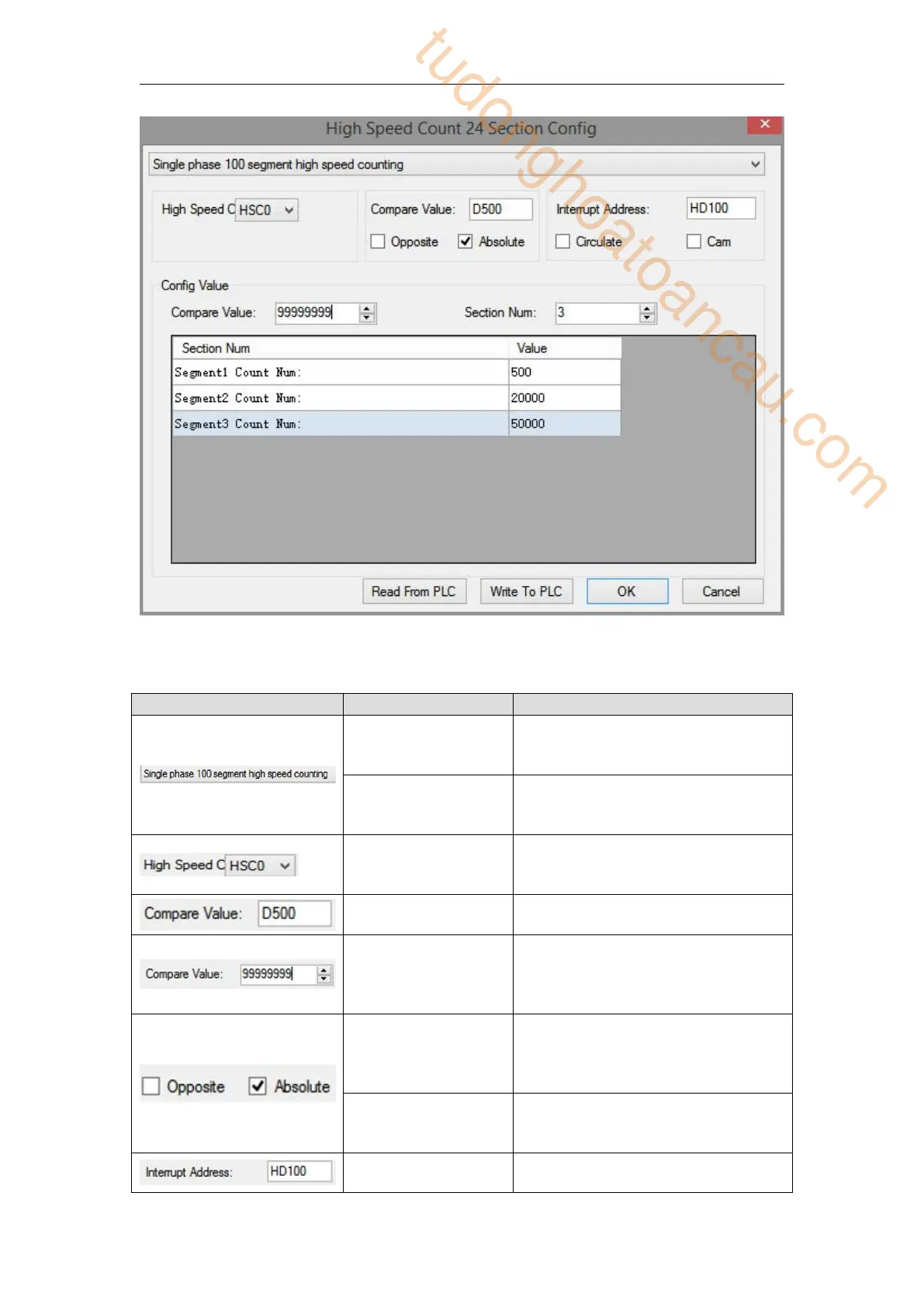

In this panel, we can configure the parameters related to high speed count interruption. Take
the settings in above figure as an example to explain each parameter function.
single phase 100
segments high speed
counting
High Speed Counting in Single Phase
Incremental Mode
100 segments AB
phase high speed
counting
High Speed Counting in AB phase
mode
High-speed counter number
corresponding to high-speed input
port
HSC0 is ON when the count value is
equal to the value in the register.
When it counts to the comparison
value, HSC0 is ON, the comparison
value can be set here or put in
compare reigster D500.
It will produce the interruption of
segment N when the counting value =
segment N-1 interruption counting
value + segment N setting value.
It will produce the interruption when
the counting value is equal to setting
value.
The set values of 100 segments of
high-speed counting interrupts are
