381

pressed.

50% brightness button, X3 is ON when

pressed.

75% brightness button, X4 is ON when

pressed.

100% brightness button, X5 is ON when

pressed.

HD0

PWM duty ratio register

HD2

PWM frequency register

Defaulted

100Hz

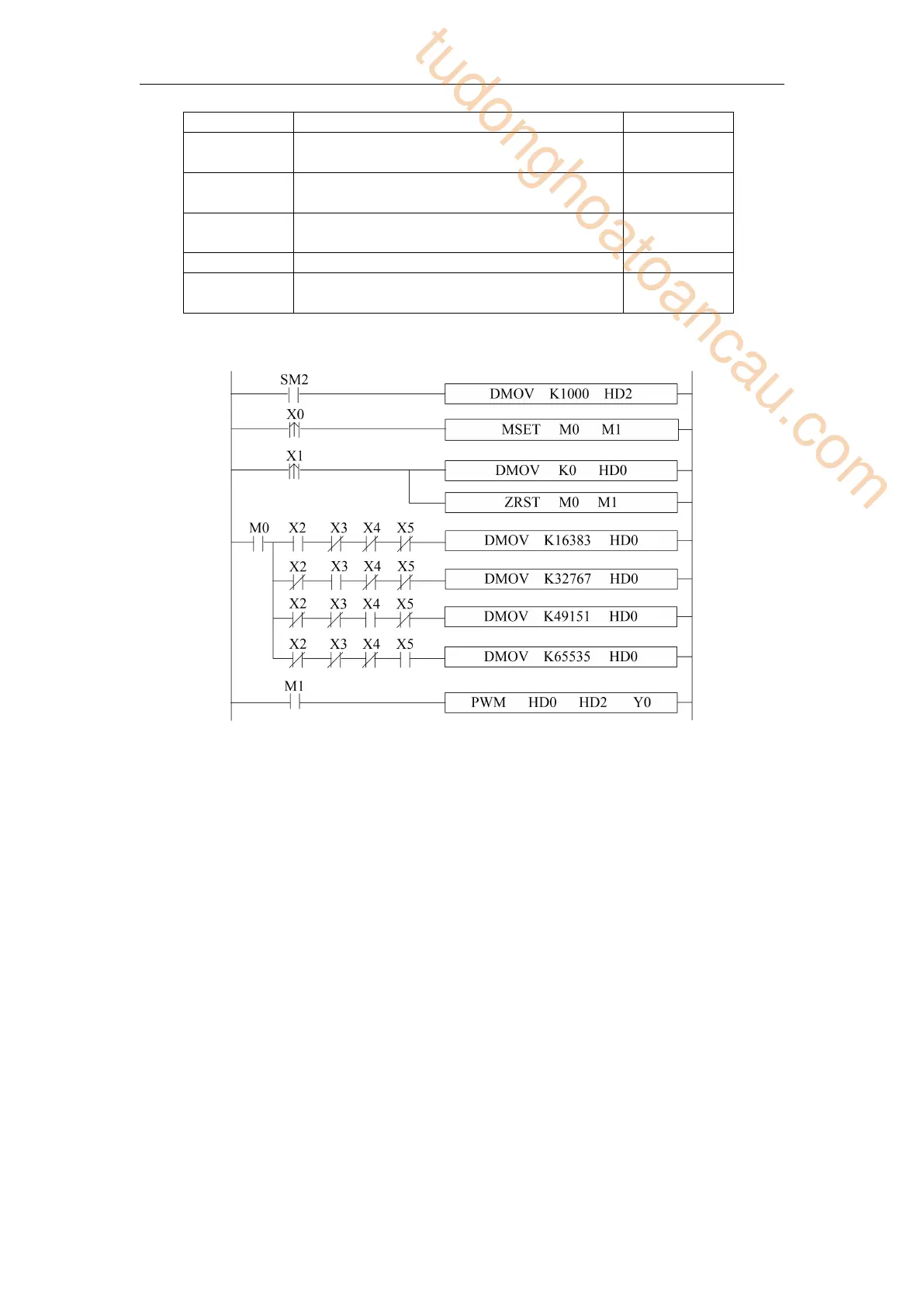

Program:

Program explanation:

1. HD0 will control the LED voltage. The voltage = 24*HD0/65535, pulse output frequency

is 100Hz.

2. Press start button, X0 is ON, M0, M1 is ON, the LED brightness adjustment starts.

3. X2 is ON, HD0=16383, HD0/32768=0.25, the LED brightness is 25%.

4. X3 is ON, HD0=32767, HD0/32768=0.5, the LED brightness is 50%.

5. X4 is ON, HD0=49151, HD0/32768=0.75, the LED brightness is 75%.

6. X5 is ON, HD0=65535, HD0/32768=1, the LED brightness is 100%.

7. Press shut down button, X1 is ON, HD0 is reset, shut down the PWM trigger condition,

LED voltage is 0V.
