ELECTRICAL ANALYSIS
When measuring the peak voltage, con-
nect the peak voltage adaptor to the digi-
tal tester and switch the selector to the
DC voltage mode.
NOTE:
Make sure that the adaptor leads are
properly installed in the digital circuit
tester.
Make sure that the positive pin (the “+”
mark facing up as shown) on the adaptor
is installed into the positive terminal of
the tester.
The test harness is needed for the follow-
ing tests.

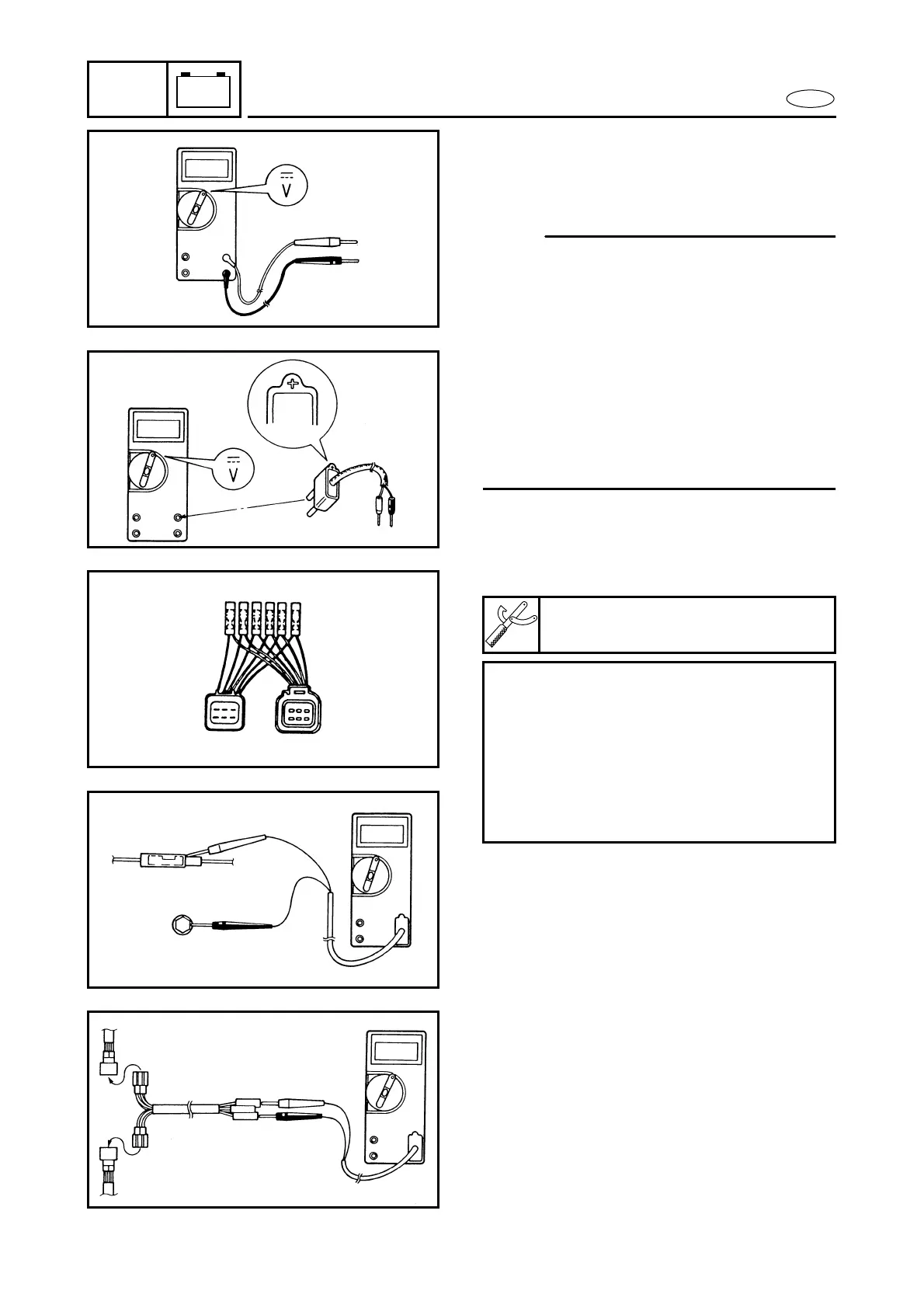

Å Voltage measurement
ı Peak voltage measurement
Å
ı
Test harness (for pulser and charge coils)
Test harness:
YB-38832/90890-06772
Checking steps:
Disconnect the coupler connections.
Connect the test harness between the
couplers.
Connect the tester terminals to the ter-
minals which are being checked.
Start or crank the engine and observe
the measurement.
