YASKAWA J1000 Technical Manual

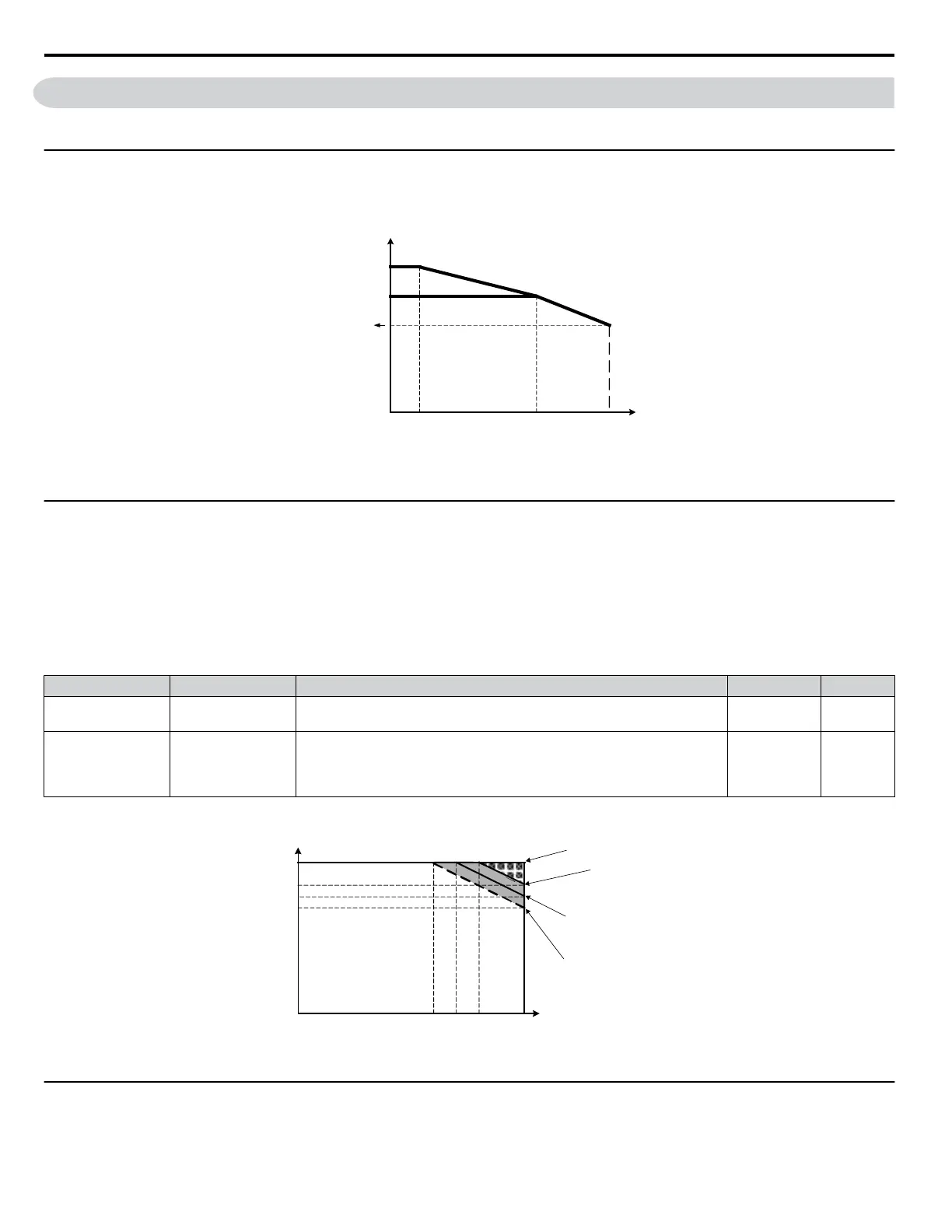

A.6 Drive Derating Data
The drive can be operated at above rated temperature, altitude and default carrier frequency by derating the drive capacity.
u
Carrier Frequency Derating
Derate drive capacity using Figure A.1 as the carrier frequency of the drive increases above the factory setting.
ND
10 (8)
15
0
HD
2
Drive
Rating
Carrier Frequency (C6-02)
200 V Class:
80% of HD
400 V Class:
60% of HD
Carrier Frequency Derating
Figure A.1 Carrier Frequency Derating
u
Temperature Derating
As the ambient temperature for the drive is increased above the drive specification the drive should be derated. Additionally
parameter L8-35 Installation Method Selection on page 186 should be set according to enclosure type and mounting method
as illustrated in Figure A.2.
n
Output Current Derating Due to Ambient Temperature
Set L8-12 and L8-35 according to the installation conditions when the ambient temperature is above the drive specification
or if drives are side-by-side mounted in a cabinet. The output current is derated as shown in Figure A.2.
No. Name Description Range Def.
L8-12
Ambient
Temperature Setting
Adjust the drive overload (oL2) protection level when the drive is installed
in an environment that exceeds its ambient temperature rating.
-10 to 50 30 °C
L8-35
Installation Method
Selection
0: IP20/IP00 Drive
1: Side-by-Side Mounting
2: NEMA Type 1 Drive
<1>
3: Finless Drive or External Heatsink Installation
0 to 3 0
<1> This selection assumes that the drive is fitted with the NEMA Type 1 Kit option.
40
50
0
30
o
35
50%
70%
80%
85%
100%
oo
o
Drive
Rating
Ambient temp C
Parameter L8-12
Parameter L8-35 = 0 (IP20/IP00 Drive)
Parameter L8-35 = 2
(NEMA Type 1 Drive)
Parameter L8-35 = 1
(Side-by-side Mounting)
Parameter L8-35 = 3
(Finless Drive or External
Heatsink Installation)
Figure A.2 Ambient Temperature and Installation Method Derating
u
Altitude Derating
The drive standard ratings are valid for an installation altitude up to 1000 m. If the altitude exceeds 1000 m, both the drive
input voltage and the rated output current must be derated for 1% per 100 m. The maximum altitude is 3000 m.
A.6 Drive Derating Data
186
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
