YASKAWA J1000 Technical Manual

When set to “F”, the output is not set by any drive function but it can be switched by a PLC via MEMOBUS/Modbus
communications interface (through mode).
Setting 10: Minor Fault
Output closes when a minor fault condition is present.
Setting 1A: During Reverse
The During Reverse digital output will close whenever the drive is turning the motor in the reverse direction.
Status Description
Open Motor is driven in the forward direction or stopped.
Closed Motor is driven in reverse.
Output frequency
time
FWD Run command
REV Run command
During Reverse
OFF
ON

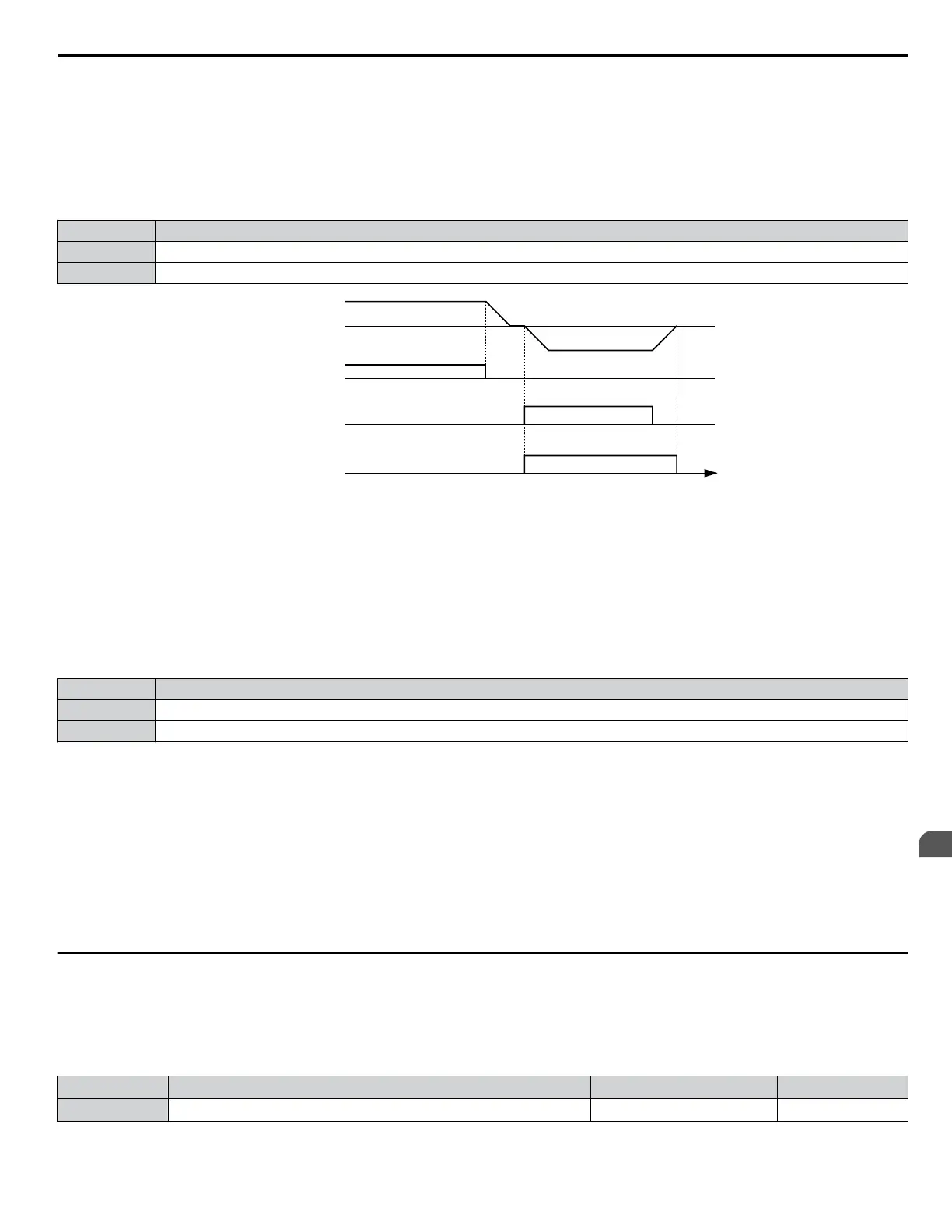

Figure 5.25 Reverse Direction Output Example Time Chart
Setting 1E: Restart Enabled
The
Restart Enabled output will be closed once the fault restart function becomes active and will remain closed until a successful
restart is accomplished or the number of Auto Restart attempts as specified by L5-01 is reached. Refer to L5: Fault Restart
on page 117 for details on automatic fault restart.
Setting 3C: LOCAL/REMOTE Status
Output terminal closes while the drive is set for LOCAL and opens when in REMOTE.
Status Description
Open REMOTE: The selected external reference (b1-01/02 or MEMOBUS/Modbus) is used as frequency reference and Run command source
Closed LOCAL: The digital operator is used as frequency reference and Run command source
Setting 3D: During Speed Search
Output terminal closes while Speed Search is being performed.
Setting 100 to 13D: Reverse Switching for Functions 0 to 3D
These
settings reverse the switching status of the specified function. Set as 1oo, where the last two digits specify the setting
number of the function to be reversed.
Examples:
• To reverse the output for “8: During Baseblock”, set “108”.
• To reverse the output for “3C: Run command” set “13C”.
u
H3: Analog Input Terminal A1 Settings
These parameters adjust the signal level and characteristics of the analog frequency reference input A1.
n
H3-01: Terminal A1 Signal Level Selection
Selects the input signal level for analog input A1.
No. Name Setting Range Default
H3-01 Terminal A1 Signal Level Selection 0 to 3 0
5.6 H: Terminal Functions
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
107
5
Parameter Details
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
