YASKAWA J1000 Technical Manual

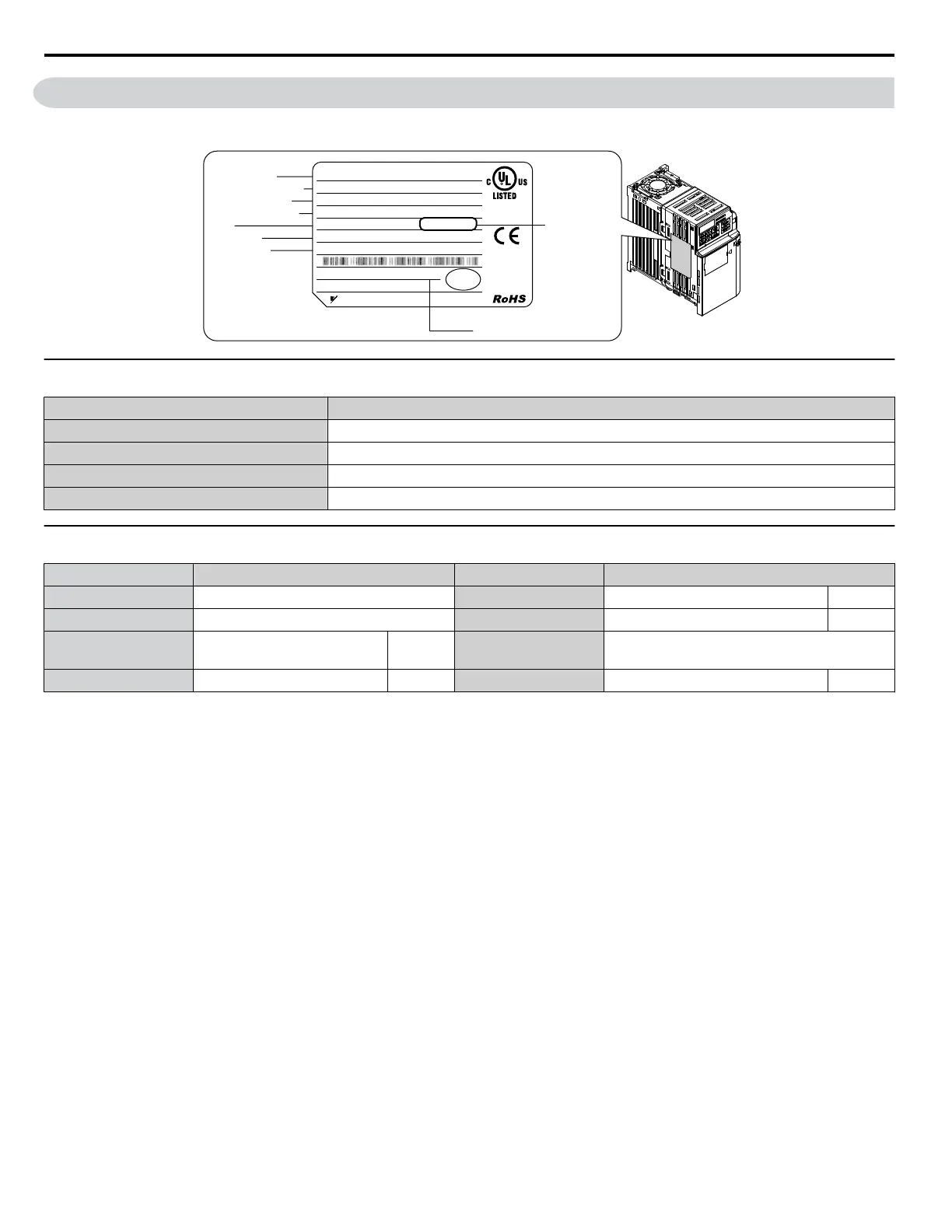

E.1 Drive and Motor Specifications
A separate record should be kept that lists drive specifications and motor specifications.
AC drive model
Max. applicable motor
Input specifications
Output specifications
Mass
Lot number
Serial number
Software version
Enclosure type
PRG : 1010
IND.CONT.EQ.
7J48 B
CIMR-JU2A0004BAA
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
:
: AC3PH 200-240V 50 / 60Hz 2.7A / 1.4A
: AC3PH 0-240V 0-400Hz 1.2A / 0.8A
: 0.9 kg
:
:
: E131457 IP20
PASS
MODEL
MAX APPLI. MOTOR : 0.75kW / 0.4kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
u
Drive
Items Description
Model CIMR-J
Serial Number
Software Version (PRG)
Date of Usage
u
Motor
Items Description Items Description
Manufacturer Motor Rated Current A
Model Hz
Motor Rated Power HP
Number of Motor
Poles
Motor Rated Voltage V Motor Base Speed r/min
E.1 Drive and Motor Specifications
248
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
