YASKAWA J1000 Technical Manual

1.3 Component Names
This section illustrates drive components in the IP20/Open-Chassis models.
Refer to NEMA Type 1 Kit on page 172 for information on using the NEMA Type 1 Kit option to create a NEMA Type 1
rating.
u
IP20/Open-Chassis
n
Single-Phase AC200 V CIMR-JoBA0001B ~ 0003B
Three-Phase AC200 V CIMR-Jo2A0001B ~ 0006B
K
A
B
C
D
E
G
H
J
I
F
A – Mounting hole
B
– Heatsink
C – Cable cover
D – Terminal cover
E – Front cover screw
F – Option connector cover
G – Front cover
H – LED operator Refer to Using the
Digital LED Operator on page 58
I – Case
J –
Cooling fan
<1>
K –
Fan cover
<1>

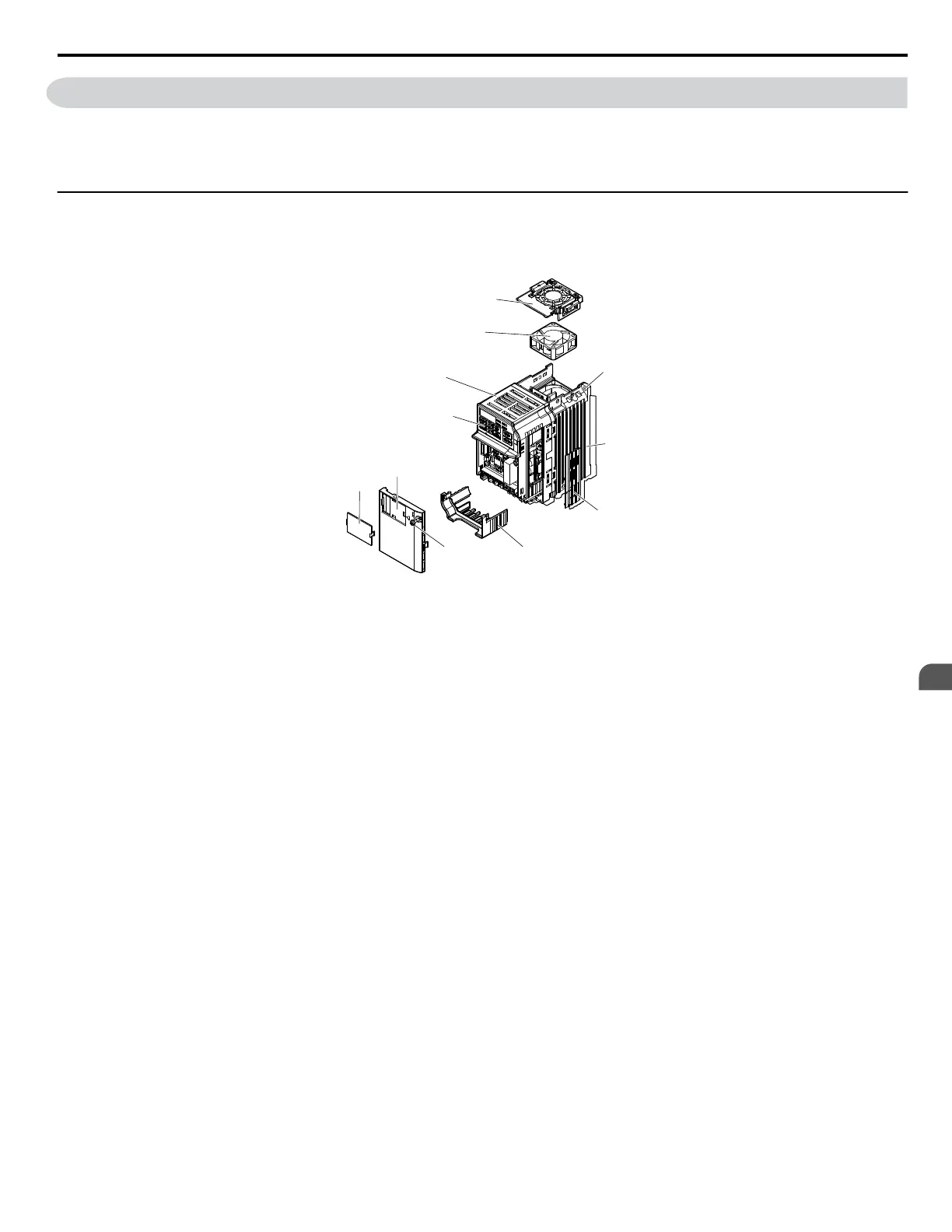

Figure 1.2 Exploded View of IP20/Open-Chassis Type Components
Three-Phase AC200 V CIMR-Jo2A0006B
<1>
The drives CIMR-JoBA0001B ~ 0003B and CIMR-Jo2A0001B ~ 0004B do not have a cooling fan or a cooling fan cover.
1.3 Component Names
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
19
1
Receiving
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
