4.2 Using the Digital LED Operator
Use the LED operator to enter run and stop commands, display data, edit parameters, as well as display fault and alarm
information.
u

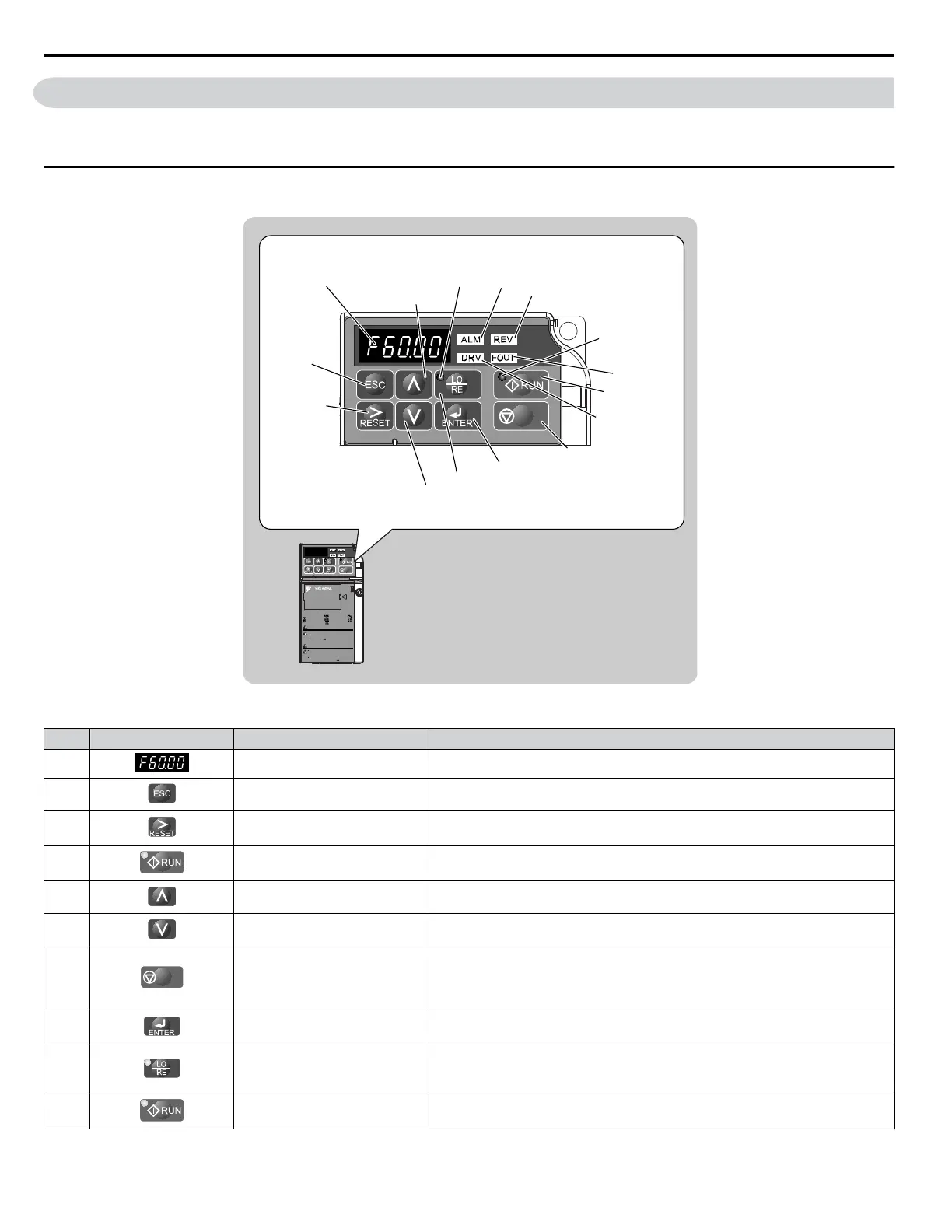

Keys, Displays, and LEDs
P
9
5
1
2
3
6
7
8
10
STOP
11
14
12
13
15
4
J1000
STOP
据え付け、運転の前には必ず取扱説明書を読むこと。
通電中および電源遮断後
5
分以内はフロントカバーを
外さないこと。
400V
級インバータの場合は、電源の中性点が接地
されていることを確認すること。（ 対応）
けが、感電のおそれがあります。
危 険
Read manual before installing.
Wait 5 minutes for capacitor discharge after
disconnecting power supply.
To conform to requirements, make sure
to ground the supply neutral for 400V class.
Risk of electric shock.
WARNING
1
周波数指令
2
正転逆転選択
3
出力周波数
4
出力電流
5
出力電圧
:
:
:
:
:
:
:
:
:
6
モニタ
7
ベリファイ
8
セットアップ
9
パラメータ設定
Table 4.1 Keys and Displays on the LED Operator
No. Display Name Function
1 Data Display Area Displays the frequency reference, parameter number, etc.
2 ESC Key Returns to the previous menu.
3 RESET Key
Moves the cursor to the right.
Resets the drive to clear a fault situation.
4 RUN Key Starts the drive.
5 Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
6
Down Arrow Key Scrolls down to select parameter numbers, setting values, etc.
7
STOP
STOP Key
Stops the drive.
Note: Stop priority circuit. Pressing the STOP key will always cause the drive to
stop the motor, even if a Run command is active at any external Run command
source. Set parameter o2-06 to 0 to disable the STOP key priority.
8 ENTER Key
Selects all modes, parameters, settings, etc.
Selects a menu item to move from one display screen to the next.
9 LO/RE Selection Key
Switches drive control between the operator (LOCAL) and the control circuit
terminals (REMOTE).
Note: LOCAL/REMOTE key effective during stop in drive mode.
10 RUN Light Lit while the drive is operating the motor.
4.2 Using the Digital LED Operator
58
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
