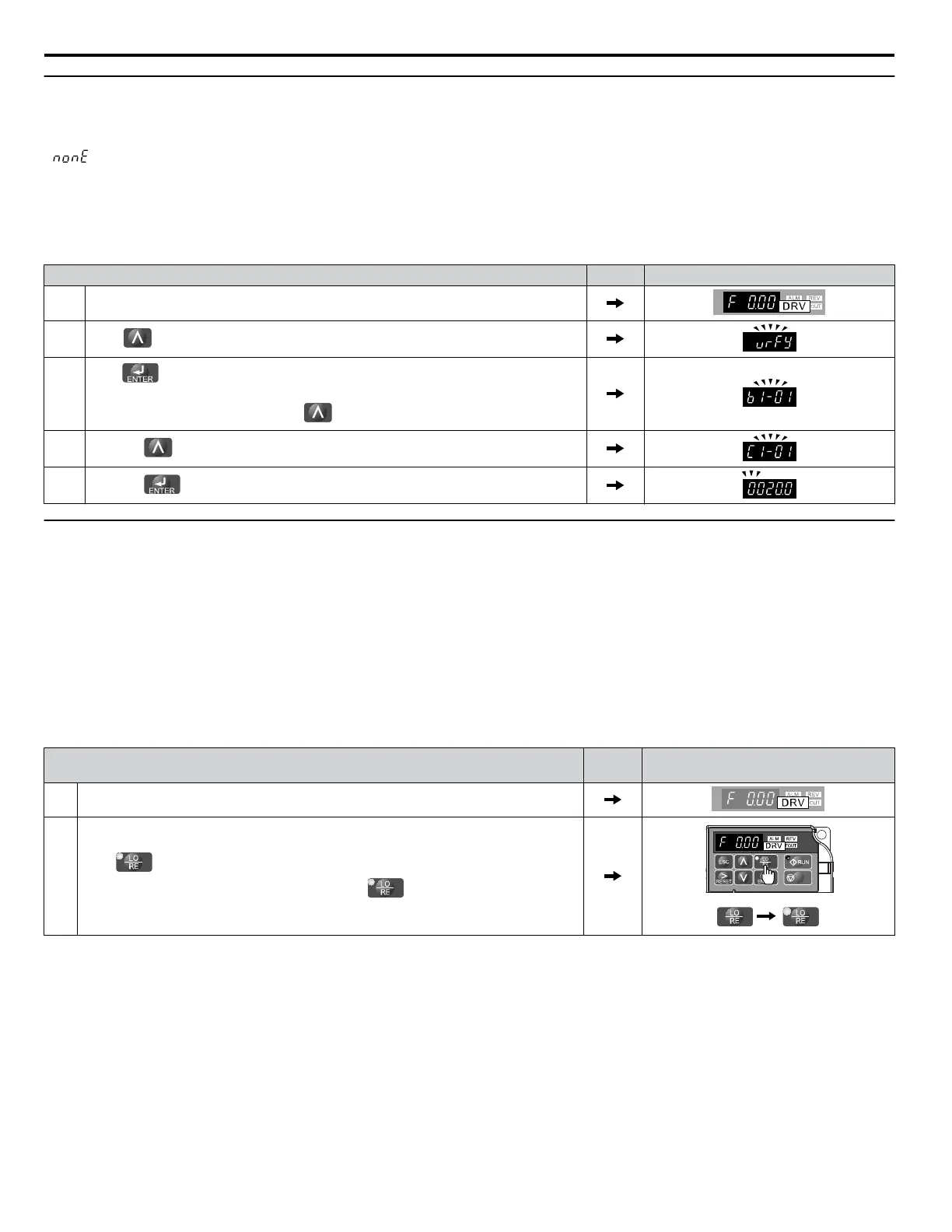

Verifying Parameter Changes: Verify Menu
The Verify Menu lists edited parameters from the Programming Mode. The Verify Menu helps determine which settings have
been changed, and is particularly useful when replacing a drive. If no settings have been changed the Verify Menu will read
. The Verify menu also allows users to access and re-edit edited parameters.
Note: The Verify Menu will not display parameters from the A1 group even if those parameters have been changed from default settings.
The
following example is a continuation of the steps beginning on page 65. Here, parameter C1-01 is accessed using the Verify
Menu and is changed again to 20.0 s.
To check the list of edited parameters:
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press until the display shows the “Verify” representation.
3.
Press to enter the list of parameters that have been edited from their original default
settings.
Scroll through the list by pressing the key.
4.
Press the
key until C1-01 appears.
5.
Press the
key to access the setting value. (number farthest to the left flashes)
u
Switching Between LOCAL and REMOTE
Entering
the run command using the LED operator is referred to as LOCAL, while entering the run command from an external
device via the control circuit terminals or network option is referred to as REMOTE.
WARNING! Sudden Movement Hazard. The drive may start unexpectedly if the Run command is already applied when switching from
LOCAL mode to REMOTE mode when b1-07 = 1, resulting in death or serious injury. Be sure all personnel are clear of rotating machinery
and electrical connections prior to switching between LOCAL mode and REMOTE mode.
There are two ways to switch between LOCAL and REMOTE.
Note: 1. After selecting LOCAL, the LO/RE light will remain lit.
2. The drive will not allow the user to switch between LOCAL and REMOTE during run.
n
Using the LO/RE Key on the LED Operator
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press . The LO/RE light will light up. The drive is now in Local.
To set the drive for REMOTE operation, press the key again.
STOP
n
Using Input Terminals S1 through S5 to Switch between LO/RE
Switch
between LOCAL and REMOTE using one of the digital input terminals S1 through S5 (set the corresponding parameter
H1-01 through H1-05 to “1”).
Follow the example below to set the digital input terminals.
Note: 1. For a list of digital input selections, Refer to Parameter List on page 187.
2. Setting a multi-function input terminal to a value of 1 disables the LO/RE key on the LED operator.
4.3 The Drive and Programming Modes
66
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
