YASKAWA J1000 Technical Manual

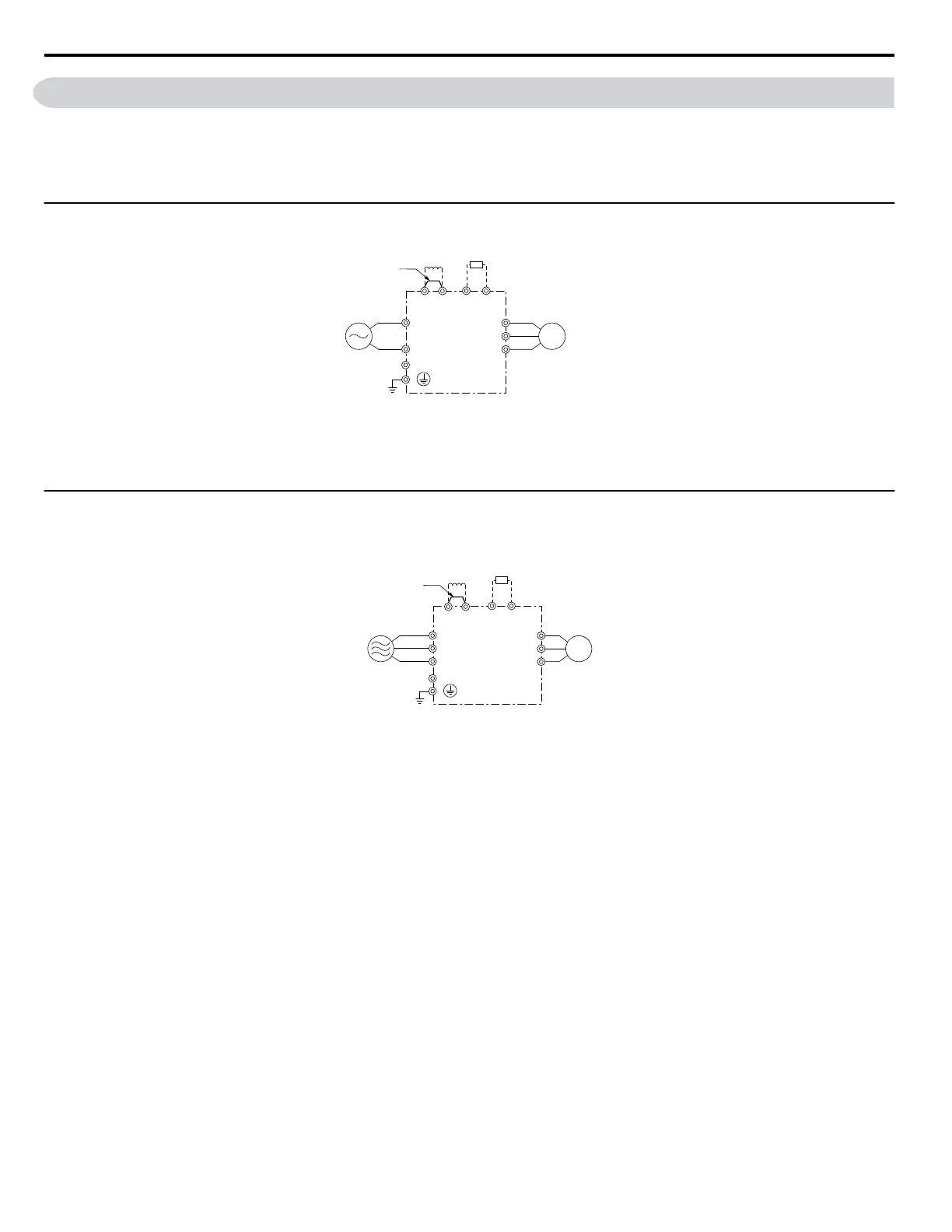

3.3 Main Circuit Connection Diagram
Refer
to diagrams in this section for the Main Circuit wiring connections. Connections may vary based on drive capacity. The
main circuit DC power supply powers the control circuit.
NOTICE: Do not use the negative DC bus terminal “-” as a ground terminal. This terminal is at high voltage DC potential. Improper wiring
connections could result in damage to the drive.
u
Single-Phase 200 V Class (CIMR-JoBA0001 ~ 0010)
Drive
Jumper
Single-phase
200 Vac
Motor
DC link choke
(option)
Braking Resistor
Unit (option)
R/L1
S/L2
+1
+2
–
B1 B2
U/T1
V/T2
W/T3
Figure 3.3 Connecting Single-Phase Main Circuit Terminals
NOTICE: Do not connect T/L3 terminal when using single-phase power supply input. Incorrect wiring may damage the drive.
u
Three-Phase 200 V Class (CIMR-Jo2A0001 ~ 0020);
Three-Phase 400 V Class (CIMR-Jo4A0001 ~ 0011)
—
Drive
Motor
Three phase 200 Vac
(400 Vac)
Braking
Resistor Unit
(option)
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
B1 B2
Jumper
DC link choke
(option)
+1
+2
Figure 3.4 Connecting Three-Phase Main Circuit Terminals
3.3 Main Circuit Connection Diagram
36
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
