YASKAWA J1000 Technical Manual

3.5 Protective Covers
Follow
the procedure below to remove the protective covers before wiring the drive and to reattach the covers after wiring is
complete.
u
IP20/Open-Chassis Cover Removal and Installation
n
Removing the Protective Covers
1.
Loosen the screw that locks the front cover in place to remove.

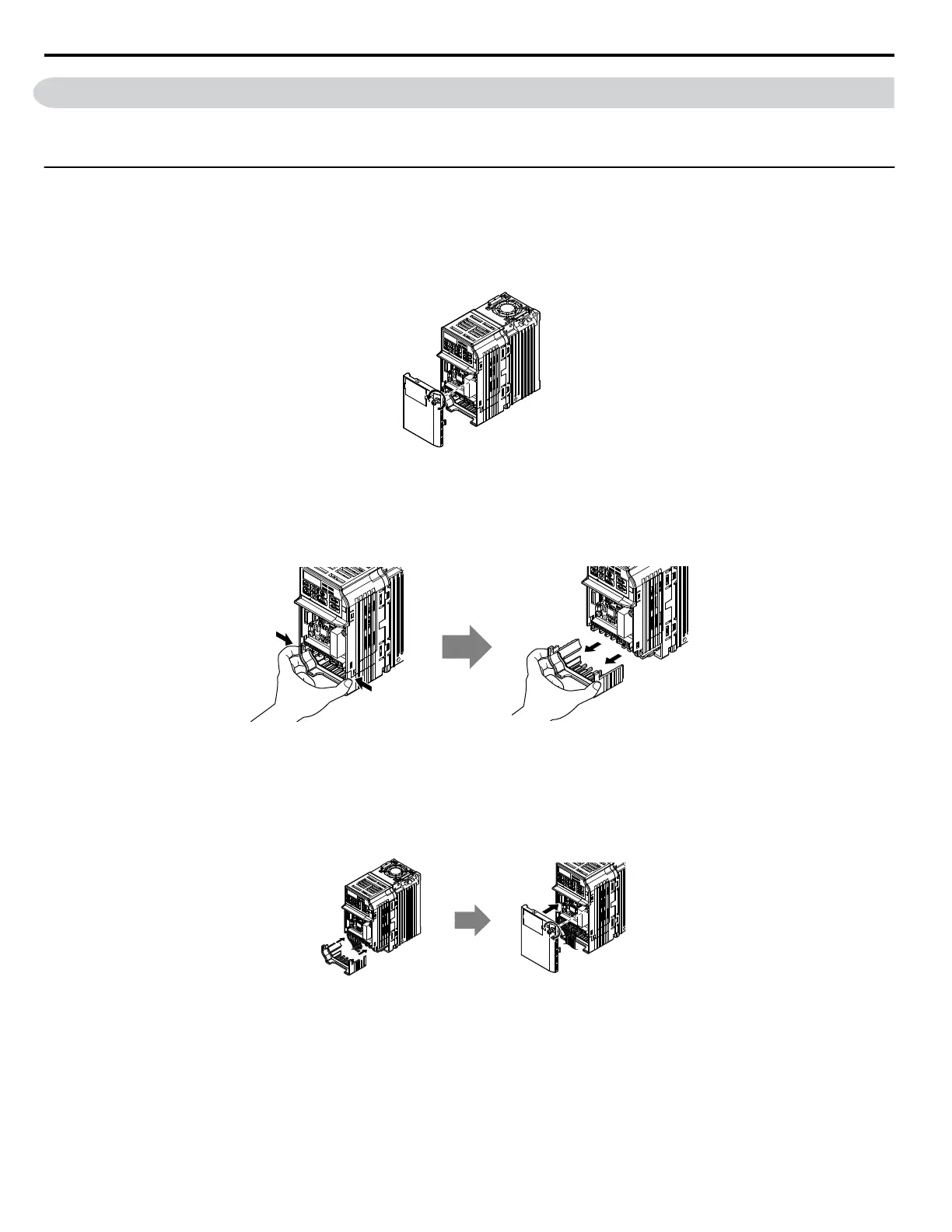

Figure 3.6 Remove the Front Cover on an IP20/Open-Chassis Drive
2.
Apply pressure to the tabs on each side of the terminal cover. Pull the terminal cover away from the drive while pushing
in on the tabs to pull the cover free.
Figure 3.7 Remove the Terminal Cover on an IP20/Open-Chassis Drive
n
Reattaching the Protective Covers
Properly connect all wiring and route power wiring away from control signal wiring. Reattach all protective covers when
wiring is complete. Apply only a small amount of pressure to lock the cover back into place.
Figure 3.8 Reattach the Protective Covers on an IP20/Open-Chassis Drive
3.5 Protective Covers
38
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
