YASKAWA J1000 Technical Manual

u
Front Views
G
F
A
B
C
D
E
A
B
C
D
E
F
G
CIMR-J 2A0006B
CIMR-J 2A0012B
A – DIP switch S1 Refer to DIP Switch
S1 Analog Input Signal Selection
on page 49
B – DIP switch S3 Refer to Sinking/
Sourcing Mode Switch on page
47
C – Control circuit terminal Refer to
Control Circuit Wiring on page
43
D – Main circuit terminal Refer to
Wiring the Main Circuit Terminal
on page 42
E – Ground terminal
F – Terminal cover
G – Option unit connector Refer to
Options on page 177

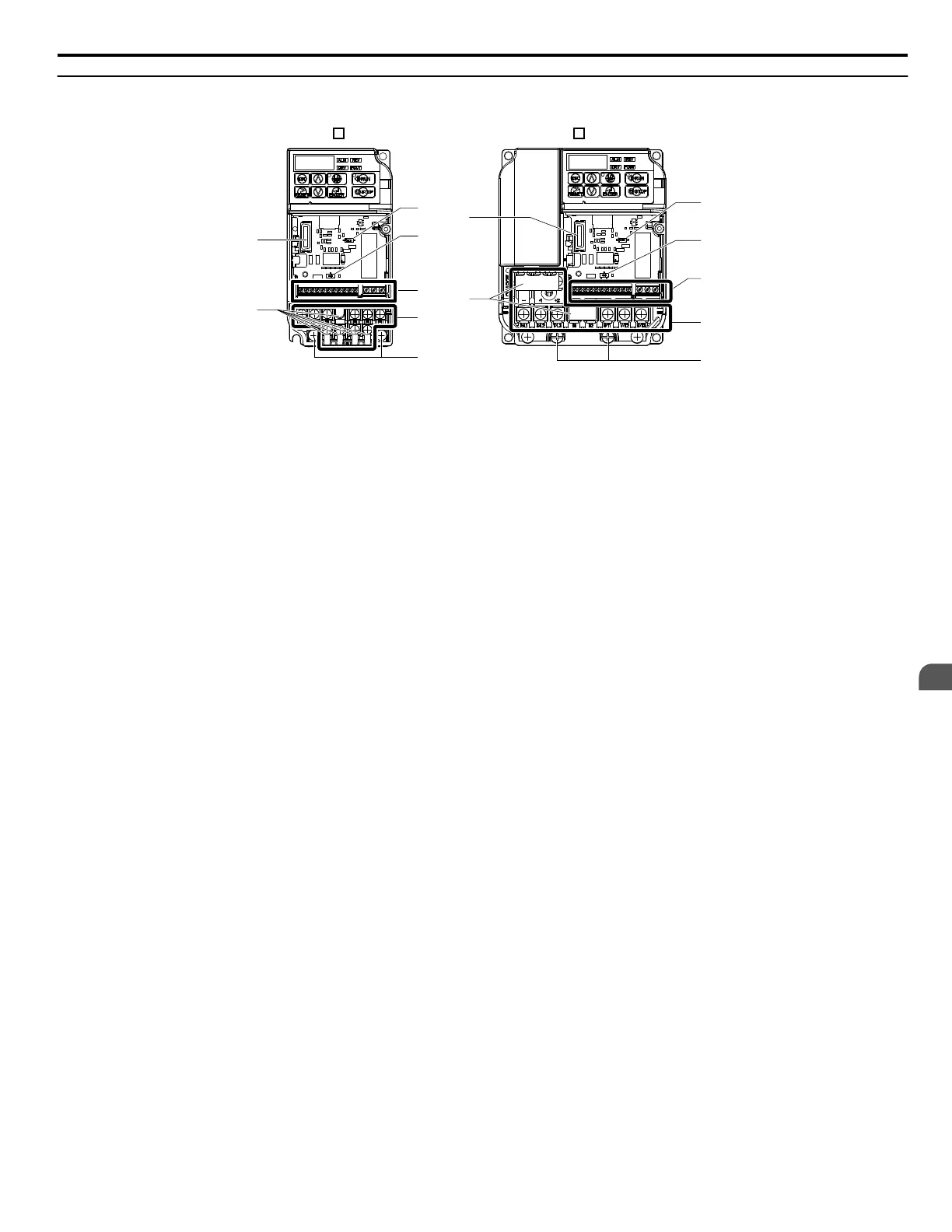

Figure 1.4 Front Views of Drives
1.3 Component Names
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
21
1
Receiving
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
