YASKAWA J1000 Technical Manual

u

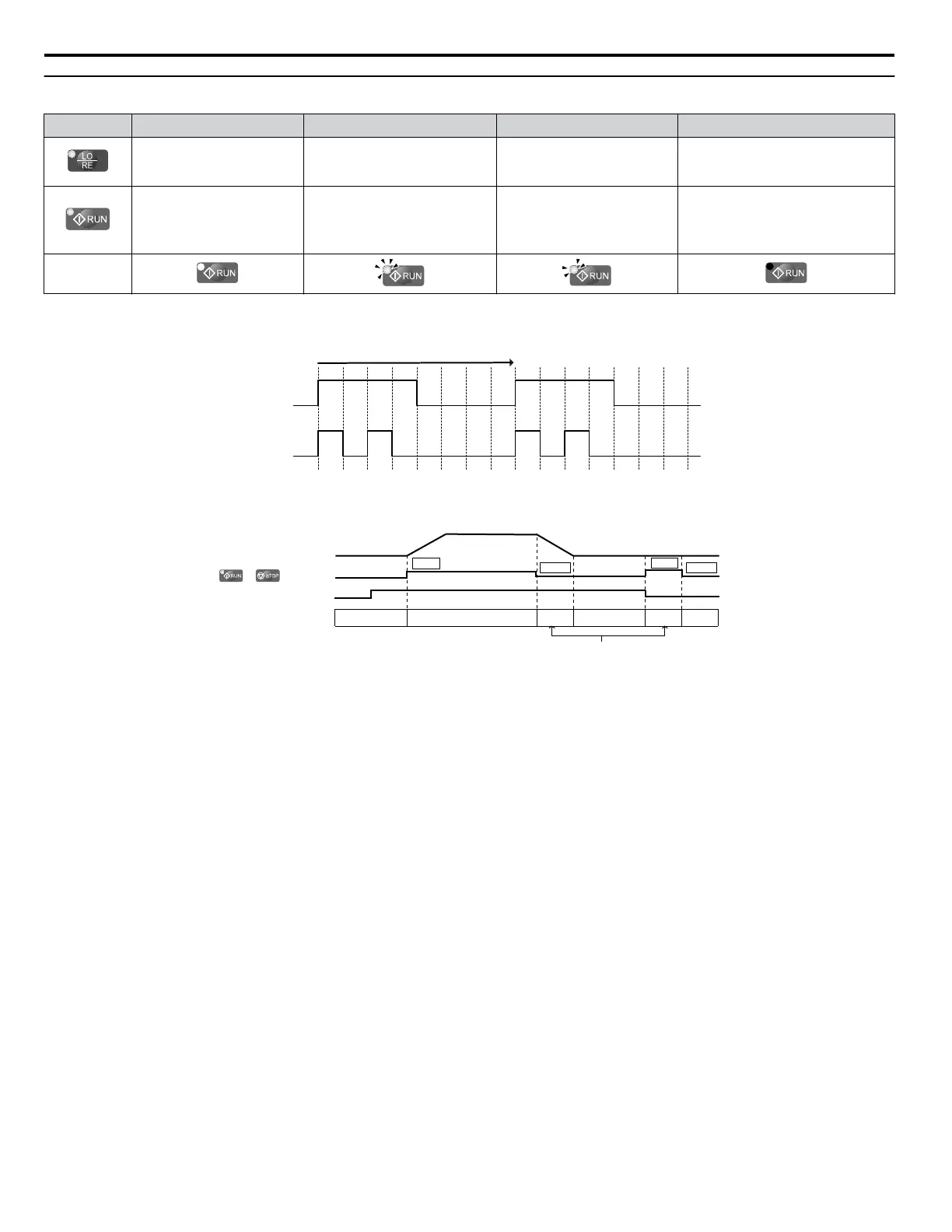

LO/RE LED and RUN LED Indications
LED Lit Flashing
Flashing Quickly
<1>
Off
When a Run command is
selected from the LED
operator (LOCAL)
– –
Run command is selected from device
other than LED operator (REMOTE)
During Run
• During deceleration to stop
• When
a Run command is input
and frequency reference is 0
• During deceleration at a fast-
stop.
• During stop by interlock
operation.
During stop
As shown
<1> Refer to Figure 4.1 for the difference between “flashing” and “flashing quickly”.
Flashing
ON ON
ON
ON ON
ON
1 s
Flashing
quickly
Figure 4.1 RUN LED Status and Meaning
/
Drive output frequency
during stop
Frequency setting
OFF
ON
Flashing
OFF
OFF
RUN LED
RUN
0 Hz
6 Hz
RUN
STOP
STOP
Figure 4.2 RUN LED and Drive Operation
4.2 Using the Digital LED Operator
60
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
http://nicontrols.com

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
