n
Single-Phase AC200 V CIMR-JoBA0006B ~ 0010B
Three-Phase AC200 V CIMR-Jo2A0010B ~ 0020B
Three-Phase AC400 V CIMR-Jo4A0001B ~ 0011B
L
A
B
C
D
F
K
J
I
E
G
H
A – Mounting hole
B
– Heatsink
C – Cable cover
D – Terminal cover
E – Bottom cover
F – Front cover screw
G – Option connector cover
H – Front cover
I – LED operator Refer to Using the
Digital LED Operator on page 58
J – Case
K –
Cooling fan
<1>
L –
Fan cover
<1>

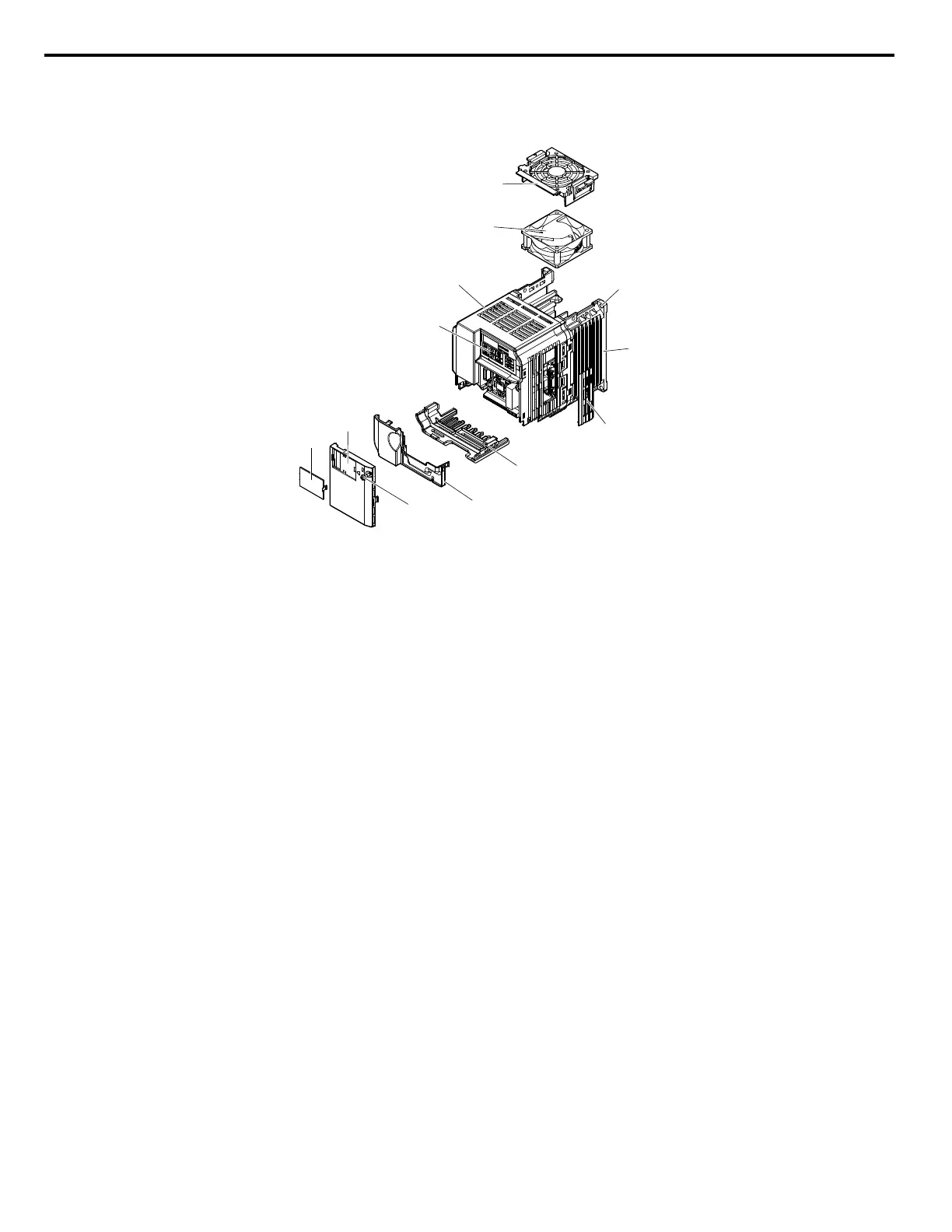

Figure 1.3 Exploded view of IP20/Open-Chassis Type Components
Three-Phase AC200 V CIMR-Jo2A0012B
<1>
The drives CIMR-JoBA0006B and CIMR-Jo4A0001B ~ 0004B do not have a cooling fan or a cooling fan cover.
1.3 Component Names
20
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
