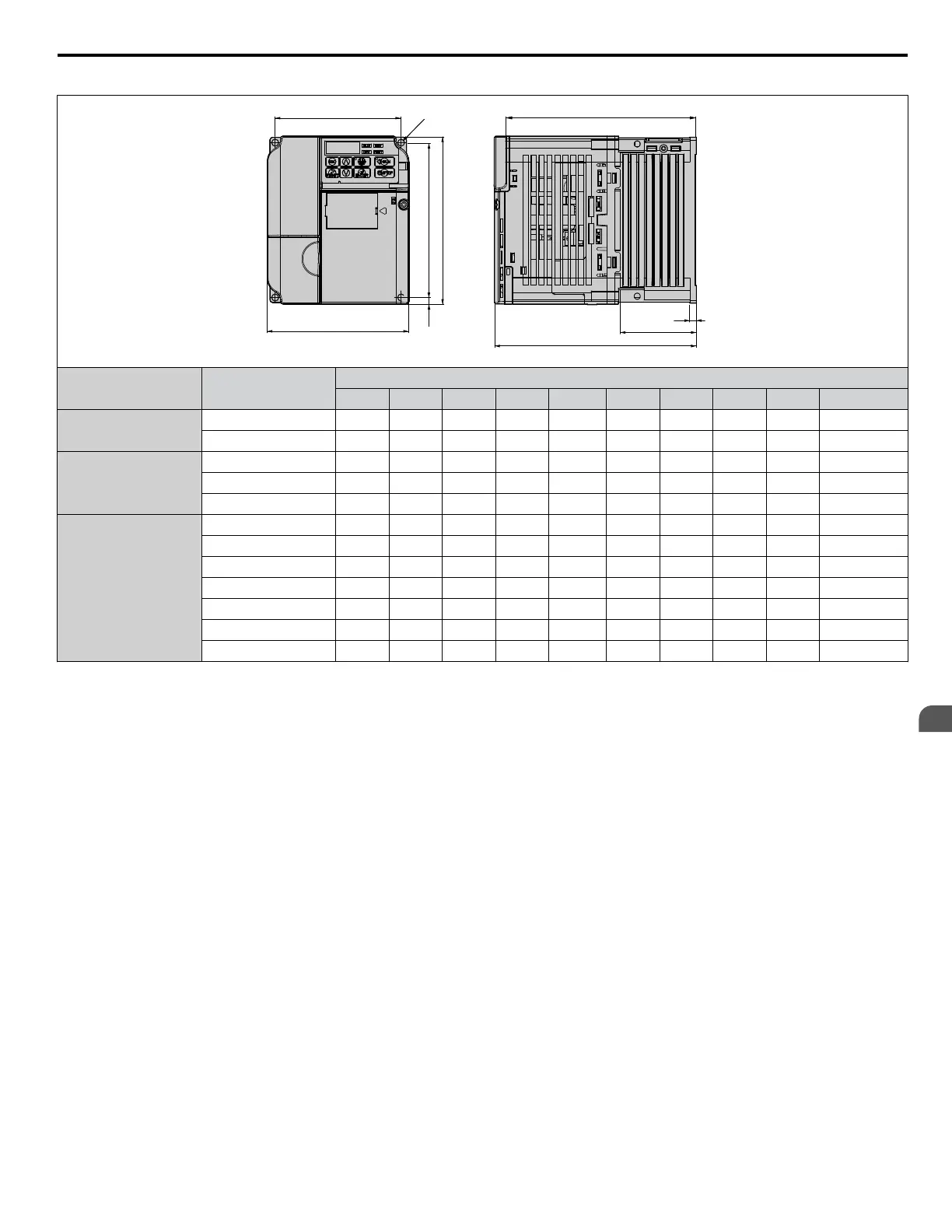

Table 2.3 IP20/Open-Chassis (without an EMC filter)
t1
D
D1
4-M4
H
W1
W
H2 H1
D2
Voltage Class
Drive Model
CIMR-Jo
Dimensions (in)
W H D W1 H1 H2 D1 D2 t1 Wt. (lb.)
Single-Phase
200 V Class
BA0006B 4.3 5.0 5.4 3.8 4.6 0.2 2.3 5.1 0.2 3.8
BA0010B 4.3 5.0 6.1 3.8 4.6 0.2 2.3 5.7 0.2 4.0
Three-Phase
200 V Class
2A0010B 4.3 5.0 5.1 3.8 4.6 0.2 2.3 4.7 0.2 3.8
2A0012B 4.3 5.0 5.4 3.8 4.6 0.2 2.3 5.1 0.2 3.8
2A0020B 5.5 5.0 5.6 5.0 4.6 0.2 2.6 5.3 0.2 5.3
Three-Phase
400 V Class
4A0001B 4.3 5.0 3.2 3.8 4.6 0.2 0.4 2.9 0.2 2.2
4A0002B 4.3 5.0 3.9 3.8 4.6 0.2 1.1 3.6 0.2 2.7
4A0004B 4.3 5.0 5.4 3.8 4.6 0.2 2.3 5.1 0.2 3.8
4A0005B 4.3 5.0 6.1 3.8 4.6 0.2 2.3 5.7 0.2 3.8
4A0007B 4.3 5.0 6.1 3.8 4.6 0.2 2.3 5.7 0.2 3.8
4A0009B 4.3 5.0 6.1 3.8 4.6 0.2 2.3 5.7 0.2 3.8
4A0011B 5.5 5.0 5.6 5.0 4.6 0.2 2.6 5.3 0.2 5.3
2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710606 31B YASKAWA AC Drive – J1000 Technical Manual
29
2
Mechanical Installation
