YASKAWA SGDV series User Manual

4.2 Basic Functions Settings
4-5
4
Operation
4.2.2 Servomotor Rotation Direction
The servomotor rotation direction can be reversed with parameter Pn000.0 without changing the polarity of
the speed/position reference. This causes the rotation direction of the servomotor to change, but the polarity of
the signal, such as encoder output pulses, output from the SERVOPACK does not change. (refer to 4.2.5
Encoder Output Pulses)
The standard setting for forward rotation is counterclockwise (CCW) as viewed from the load end of the ser-
vomotor.
Note: SigmaWin+ trace waveforms are shown in the above table.

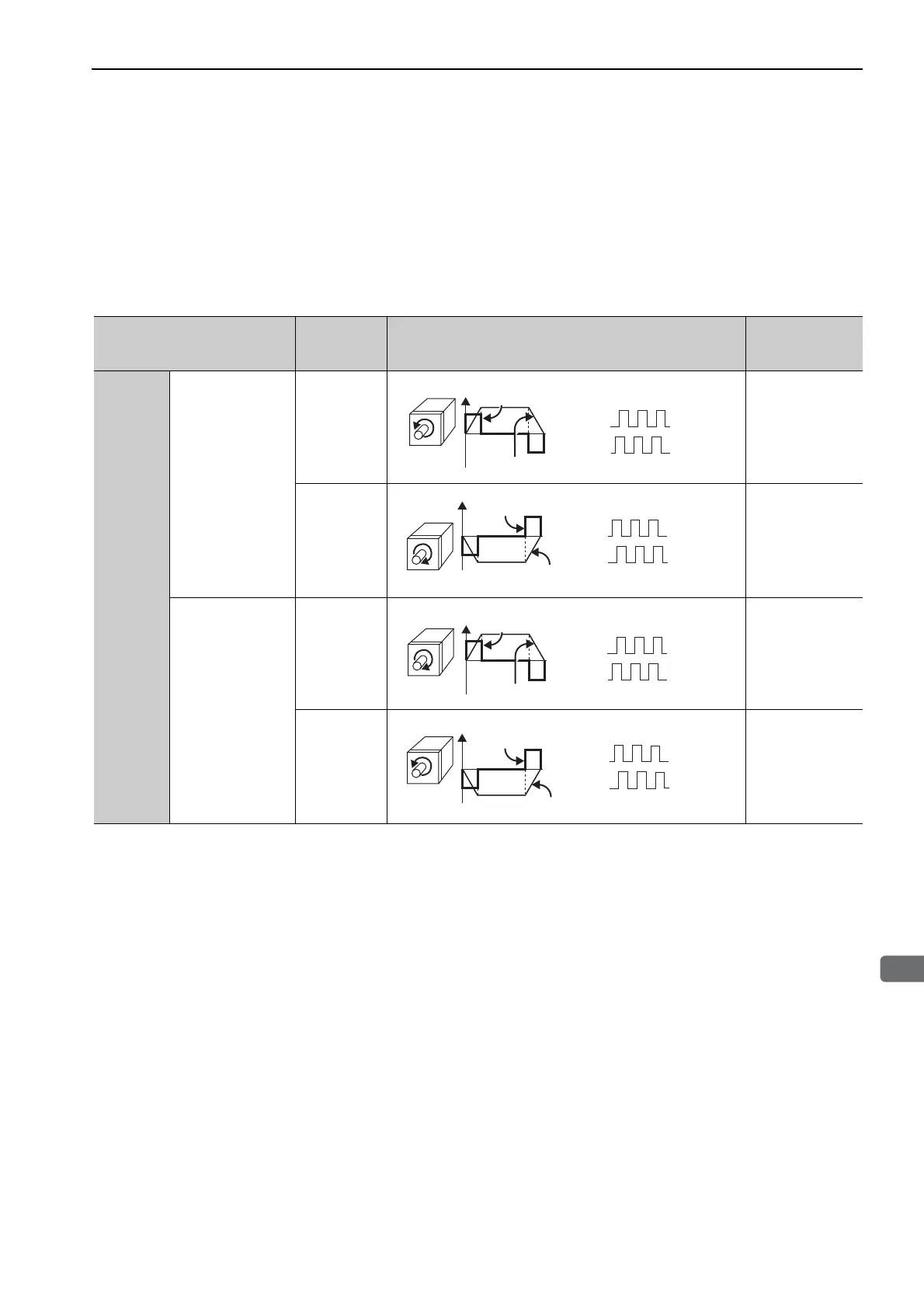

Parameter
Forward/
Reverse
Reference
Direction of Motor Rotation and Encoder Output Pulse
Applicable
Overtravel (OT)
Pn000
n.

0
Sets CCW as for-
ward direction.
[Factory setting]
Forward
Reference
P-OT
Reverse
Reference
N-OT
n.

1
Sets CW as for-
ward direction.
(Reverse Rotation
Mode)
Forward
Reference
P-OT
Reverse
Reference
N-OT
CCW
Phase B
advanced
Time
Encoder output pulse
PAO
PBO
Motor speed
Torque reference
Motor speed
+
CW
Phase A
advanced
Time
Encoder output pulse
Motor speed
Torque reference
Motor speed
PAO
PBO
+
PAO
PBO
CW
Phase B
advanced
Encoder output pulse
Motor speed
Torque reference
Motor speed
+
Time
CCW
Phase A
advanced
Encoder output pulse
PAO
PBO
+
Time
Motor speed
Torque reference
Motor speed

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
