3.1 Main Circuit Wiring
3-3
3
Wiring and Connection
3.1 Main Circuit Wiring
The names and specifications of the main circuit terminals are given below.
Also this section describes the general precautions for wiring and precautions under special environments.

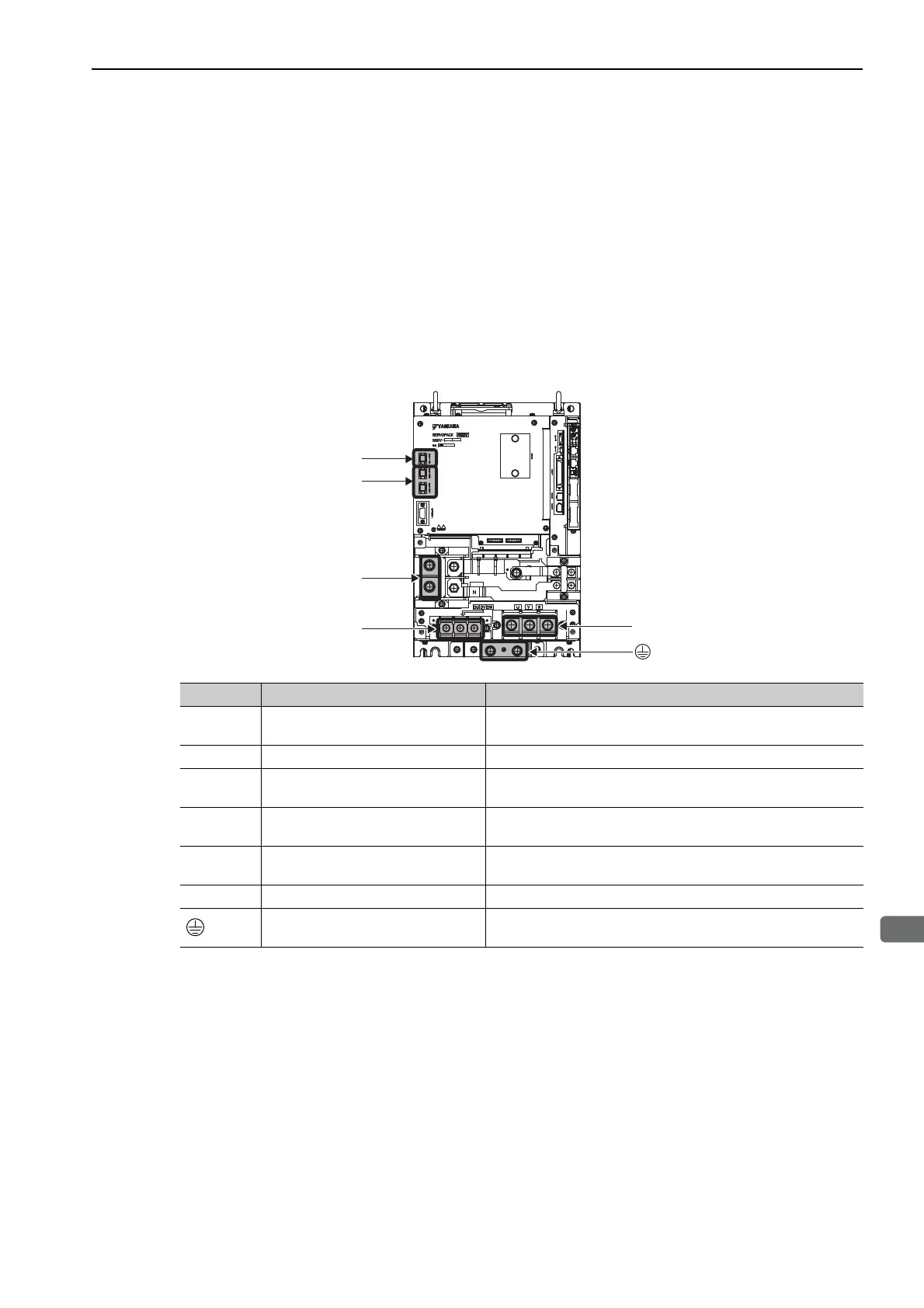

3.1.1 Main Circuit Terminals
The names and specifications of the main circuit terminals are given below.
Note: For the purpose of this description, the SERVOPACK is shown with the front cover removed. Always keep the front
cover attached when using the SERVOPACK.
 SERVOPACK
CN115
U㧘V㧘W
CN103㧘CN104
P㧘N
DU㧘DV㧘DW
M-II
Terminals Name Specifications
P, N
Main circuit DC voltage input termi-
nals
Connect these terminals to the P and N terminals on the converter.
U, V, W Servomotor terminals Connect these terminals to the Servomotor terminals.
CN103,
CN104
Control power input connectors
CN103 is the 24 VDC (±15%) input. CN104 takes the same input,
but it is normally not necessary to connect it.
DU, DV,
DW
Dynamic brake unit terminals Connect these terminals to the dynamic brake unit.
CN115 Dynamic brake unit connector
Connect this connector to the DBON and DB24 terminals on the
dynamic brake unit.
+, - NC Do not connect these terminals.
Ground terminal
Connect this terminal to the power supply ground terminal and the
Servomotor ground terminal, and then ground it.

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
