YASKAWA SGDV series User Manual

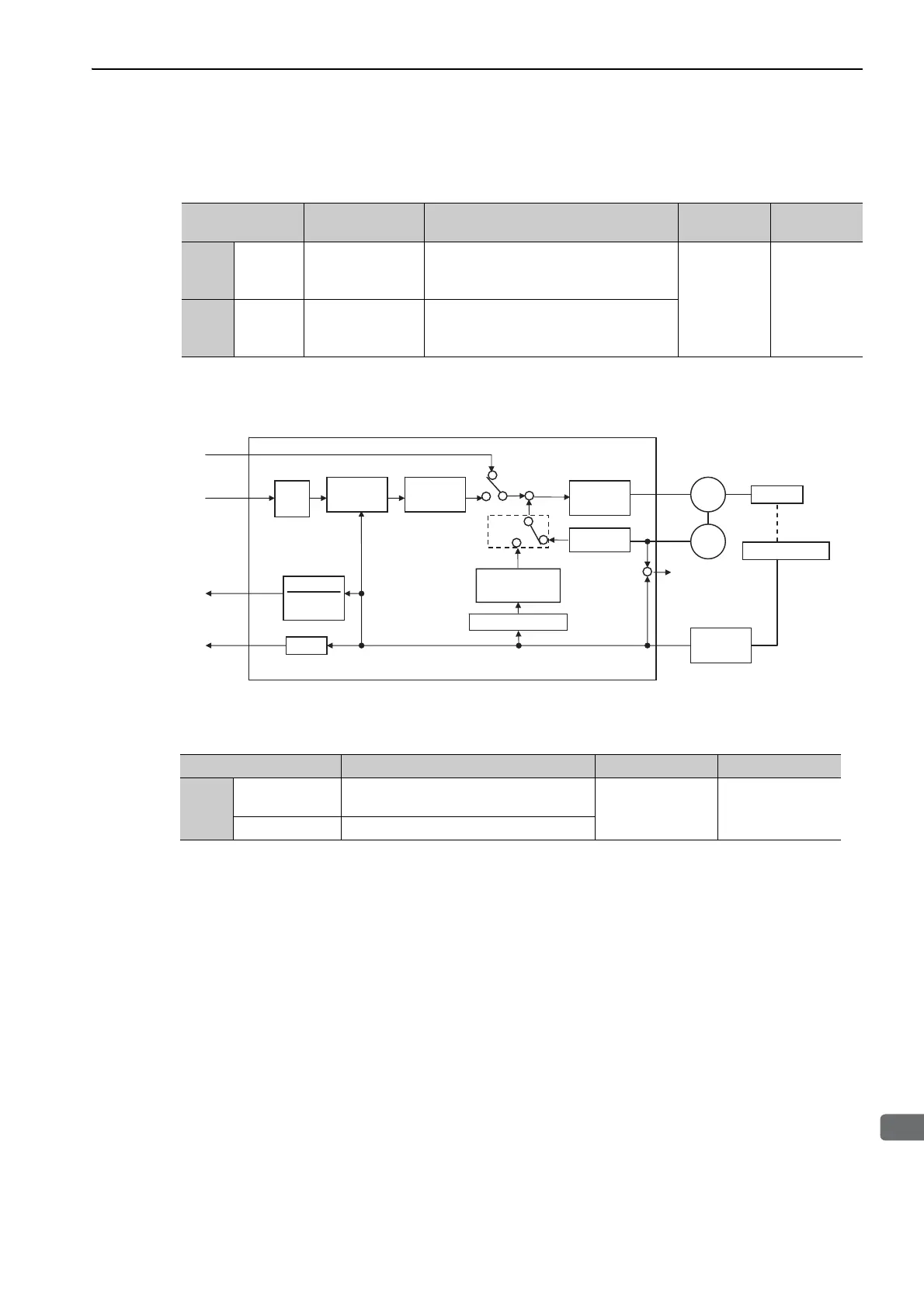

8.3 Parameter Settings for Fully-closed Loop Control
8-23
8
Fully-closed Loop Control
8.3.7 Analog Monitor Signal
The position error between servomotor and load can be monitored with the analog monitor.
8.3.8 Speed Feedback Method during Fully-closed Loop Control
Use Pn22A.3 to select the speed feedback method during fully-closed loop control: Normally, set Pn22A.3 to
0 (Uses motor encoder speed.).
Note: This parameter cannot be used when Pn002.3 is set to 0.
Parameter Name Meaning
When
Enabled
Classification
Pn006 n.07
Analog Monitor 1
Signal Selection
Position error between servomotor and load
[0.01 V/1 reference unit]
Factory setting: n.02
Immediately Setup
Pn007 n.07
Analog Monitor 2
Signal Selection
Position error between servomotor and load
[0.01 V/1 reference unit]
Factory setting: n.00
Parameter Meaning When Enabled Classification
Pn22A
n.0
[Factory setting]
Uses motor encoder speed.
After restart Setup
n.1 Uses external encoder speed.
Position
reference
Speed
reference
㧙
ENC
A.d10
Pn22A
㧗
1
Monitor data
Speed conversion
Unit conversion
Pn20A
Elec-
tronic
gear
Electronic
gear
Encoder output
pulse
Error
counter
Speed
loop
Alarm
detection
Divider
Machine
Position
control loop
Serial
conversion
Motor
External encoderޓ
Speed
conversion
Speed feedback
SERVOPACK
MECHA

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
