5.5 One-parameter Tuning (Fn203)
5-35
5.5.2 One-parameter Tuning Procedure
The following procedure is used for one-parameter tuning.
There are the following two operation procedures depending on the tuning mode being used.
• When the tuning mode is set to 0 or 1, the model following control will be disabled and one-parameter tun-
ing will be used as the tuning method for applications other than positioning.
• When the tuning mode is set to 2 or 3, the model following control will be enabled and it can be used for
tuning for positioning.
One-parameter tuning is performed from the digital operator (option) or SigmaWin+.
Make sure that the moment of inertia ratio (Pn103) is set correctly using advance autotuning before beginning
operation.
The following section provides the operating procedure from the digital operator.
Refer to the
Σ
-V Series User’s Manual, Operation of Digital Operator (No.: SIEP S800000 55) for basic key
operations of the digital operator.
(1) Digital Operator Operating Procedure
Setting the Tuning Mode 0 or 1

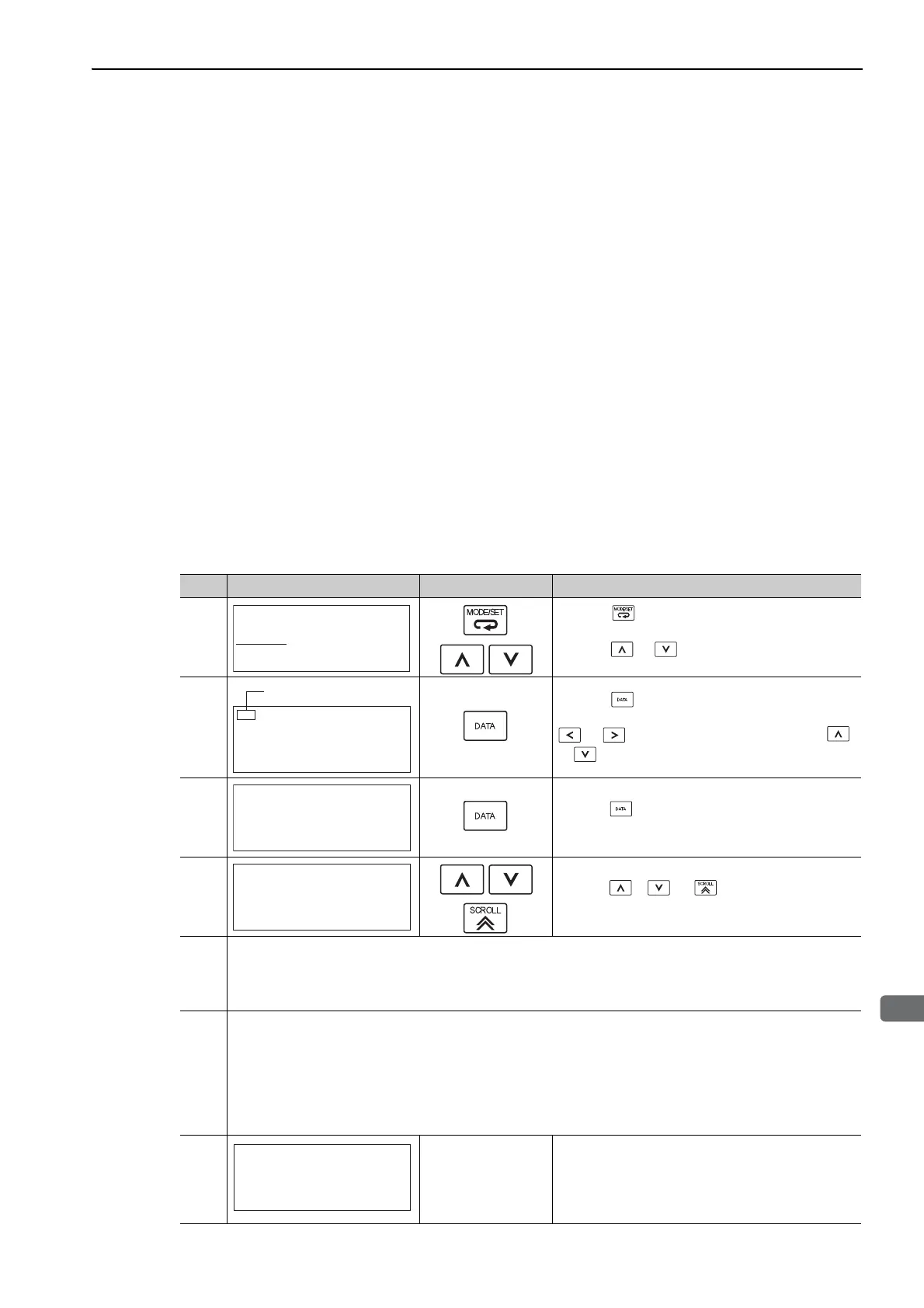

Step Display after Operation Keys Operation
1
Press the Key to view the main menu for the
utility function.
Press the or Key to move through the list
and select Fn203.
2
Press the Key to display the moment of inertia
ratio set in Pn103 at present. Move the digit with the
or Key and change the value with the
or Key.
3
Press the Key to display the initial setting screen
for one-parameter tuning.
4
Press the , , or Key and set the items in
steps 4-1 and 4-2.
4-1
Tuning Mode
Select the tuning mode. Select the tuning mode 0 or 1.
Tuning Mode = 0: Makes adjustments giving priority to stability.
Tuning Mode = 1: Makes adjustments giving priority to responsiveness.
4-2
Type Selection
Select the type according to the machine element to be driven.
If there is noise or the gain does not increase, better results may be obtained by changing the rigidity type.
Type = 1: For belt drive mechanisms
Type = 2: For ball screw drive mechanisms [Factory setting]
Type = 3: For rigid systems in which the servomotor is directly coupled to the machine (without gear or other
transmissions).
5 –
If the servomotor power is OFF, turn ON the Servo
ON command from the host controller. The display
will change from "BB" to "RUN."
If the servomotor power is ON, go to step 6.
㧮㧮ޓ ޓ㧲㨁㧺㧯㨀㧵㧻㧺
㧲㨚㧞㧜㧞㧦㧾㨑㨒㧭㧭㨀
㧲㨚㧞㧜㧟㧦㧻㨚㨑㧼㨞㨙㨀㨡㨚
㧲㨚㧞㧜㧠㧦㧭㨂㨕㨎ޓ㧿㨡㨜
㧲㨚㧞㧜㧡㧦㨂㨕㨎ޓ㧿㨡㨜
㧮 㧮 㧻 㨚 㨑 㧼 㨞 㨙 㨀 㨡 㨚
㧼 㨚 㧝 㧜 㧟 㧩 㧜 㧜 㧟 㧜 㧜
Status Display
㧮 㧮 㧻 㨚 㨑 㧼 㨞 㨙 㨀 㨡 㨚
㧿 㨑 㨠 㨠 㨕 㨚 㨓
㨀 㨡 㨚 㨕 㨚 㨓 㧹 㨛 㨐 㨑 㧩 㧜
㨀 㨥 㨜 㨑 㧩 㧞
㧮 㧮 㧻 㨚 㨑 㧼 㨞 㨙 㨀 㨡 㨚
㧿 㨑 㨠 㨠 㨕 㨚 㨓
㨀 㨡 㨚 㨕 㨚 㨓 㧹 㨛 㨐 㨑 㧩 㧜
㨀 㨥 㨜 㨑 㧩 㧞
㧾㨁㧺 㧻 㨚 㨑 㧼 㨞 㨙 㨀 㨡 㨚
㧿㨑㨠㨠㨕㨚 㨓
㨀 㨡 㨚 㨕 㨚 㨓 㧹 㨛 㨐 㨑 㧩 㧜
㨀 㨥 㨜 㨑 㧩 㧞
To Next Page
