YASKAWA SGDV series User Manual

3.9 Selecting and Connecting a Dynamic Brake Unit
3-43
3
Wiring and Connection

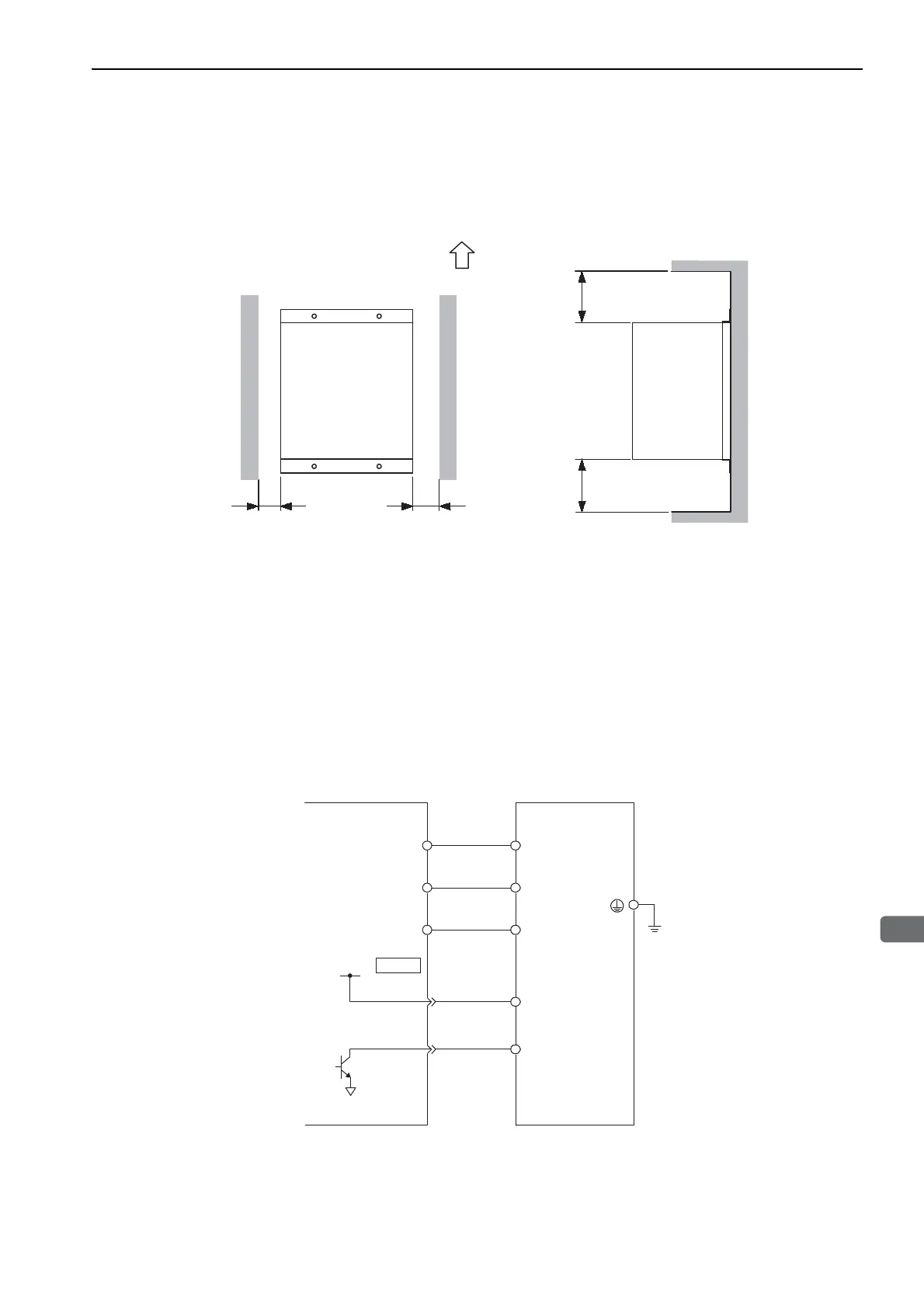

3.9.5 Installation Standards
Observe the following installation standards when you use a Yaskawa dynamic brake unit. Provide at least 70
mm on each side of the unit and at least 200 mm at both the top and bottom of the unit to enable fan and natu-
ral convection cooling.
If you use a dynamic brake resistor from a company other than Yaskawa, follow the specifications of the
dynamic brake resistor when you install it.
3.9.6 Connections
(1) Using a Yaskawa Dynamic Brake Unit
A dynamic brake contactor is built into a Yaskawa dynamic brake unit.
The connections are shown in the following figure.
Note: The dynamic brake answer function (Pn515.2) cannot be used because there are no auxiliary contacts on the contac-
tor.
70 min. 70 min.
200 min. 200 min.
Mounting
direction
Up
Units: mm
DU
DV
DW
SERVOPACK
DU
DV
DBON
24 V
DB
DW
DB24
DBON
DB24
Dynamic brake unit
CN115
0 VDB

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
