7.3 Monitoring Input Signals
7-5
7
Monitor Displays (Un)
7.3.2 Input Signal Display Example

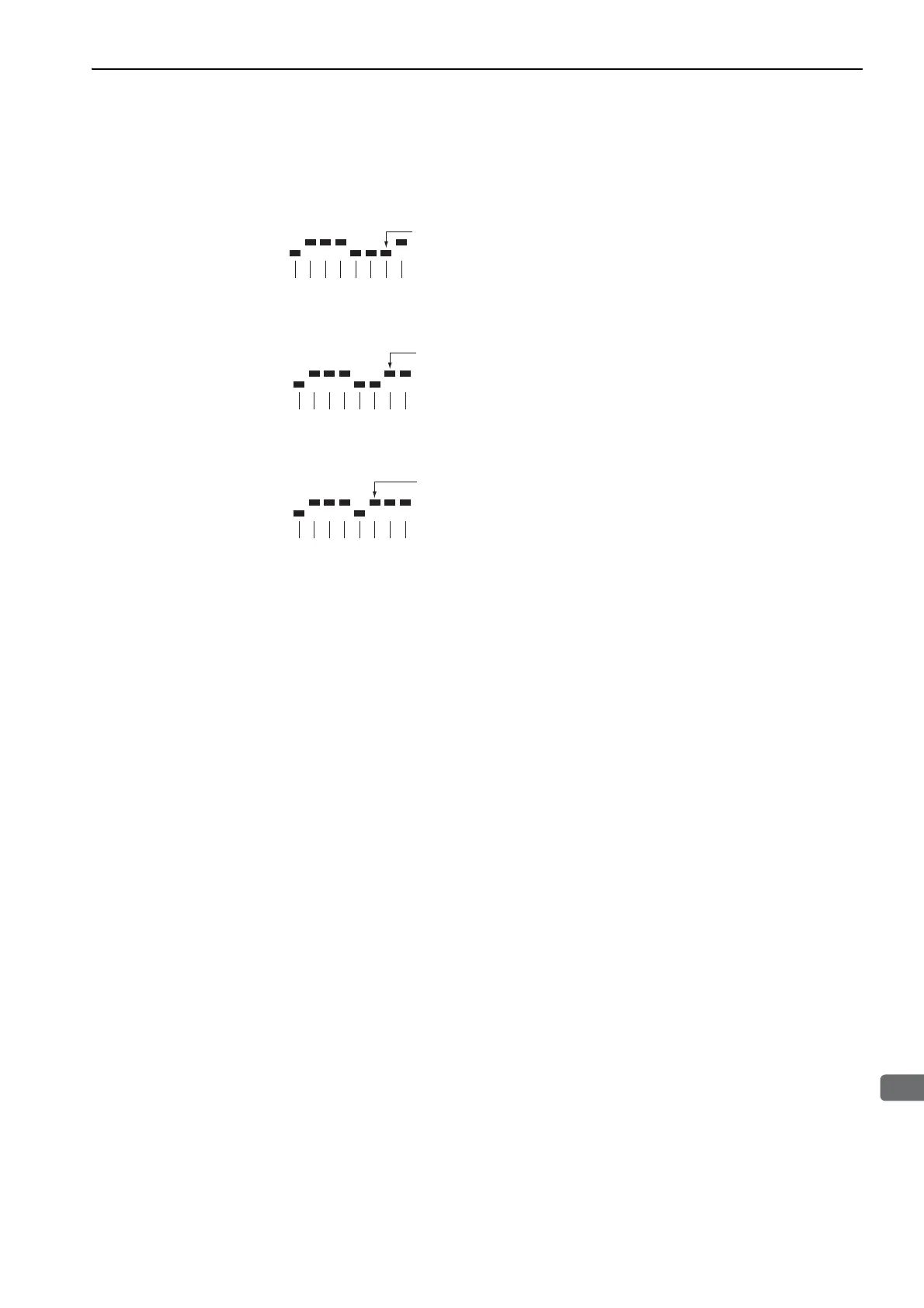

Input signals are displayed as shown below.
• When the /DEC signal is ON
• When the /DEC signal is OFF
• When the P-OT signal is activated
Un005=
8 7 6 5 4 3 2 1 digit
The second digit
is in the lower level.
MECHA
Un005=
87654321
digit
The second digit
is in the upper level.
MECHA
Un005=
87654321
digit
The third digit
is in the upper level.
MECHA

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
