YASKAWA SGDV series User Manual

5 Adjustments
5.9.2 Mode Switch (P/PI Switching)
5-64

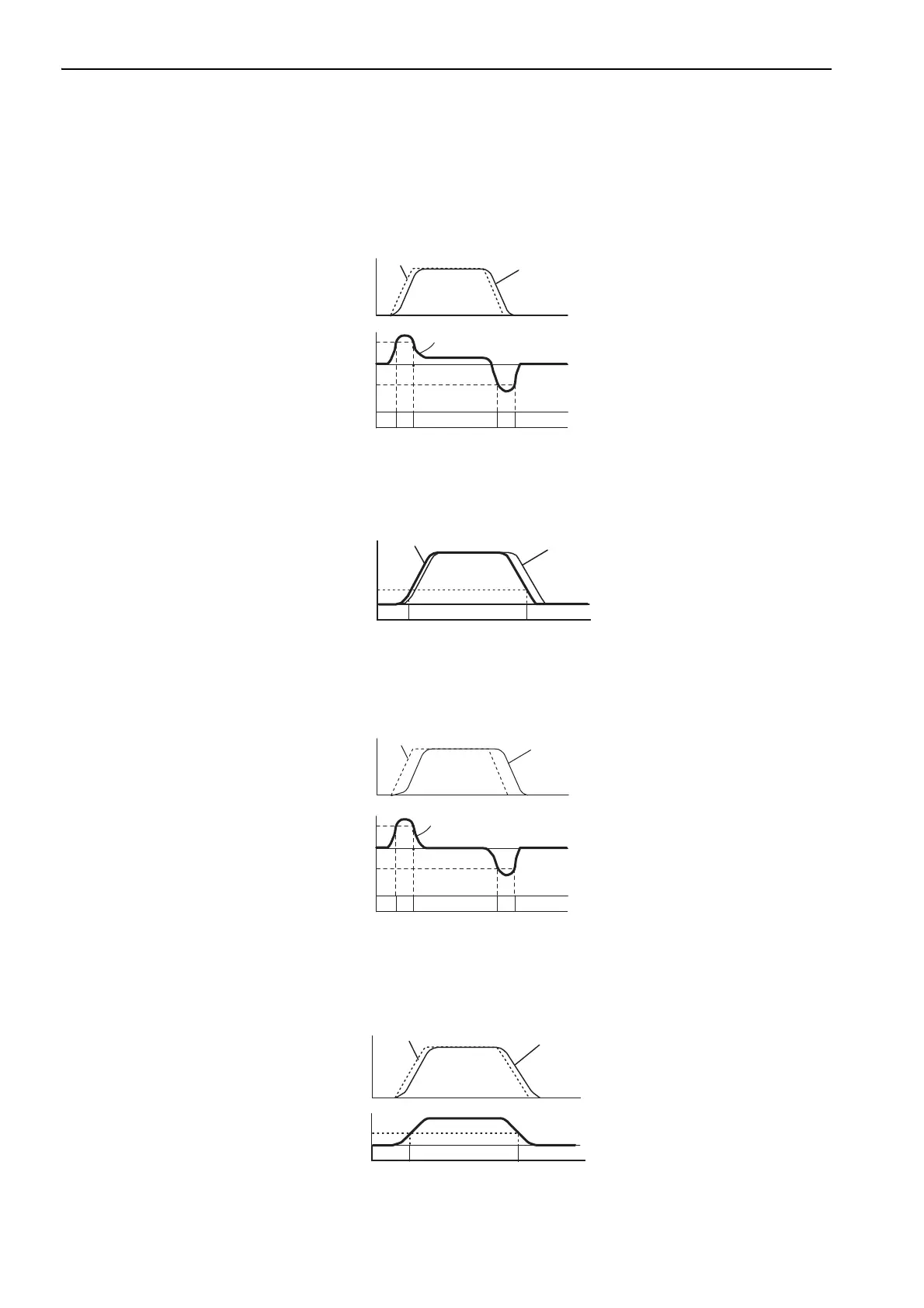

(2) Operating Examples for Different Switching Conditions
 Using the Torque Reference [Factory Setting]
With this setting, the speed loop is switched to P control when the value of torque reference input exceeds the
torque set in Pn10C. The factory setting for the torque reference detection point is 200% of the rated torque.
 Using the Speed Reference
With this setting, the speed loop is switched to P control when the value of speed reference input exceeds the
speed set in Pn10D.
 Using Acceleration
With this setting, the speed loop is switched to P control when the speed reference exceeds the acceleration set
in Pn10E.
 Using the Position Error
With this setting, the speed loop is switched to P control when the position error exceeds the value set in
Pn10F.
This setting is effective with position control only.
Motor speed
Speed reference
Speed
+Pn10C
Torque
Reference
-Pn10C
Torque reference
PI Control PI Control
0
PI
P
P
Time
Rotation
Speed reference
Speed
Motor speed
Time
P Control PI Control
Pn10D
PI
Rotation
Motor speed
Speed reference
Speed
Motor acceleration
+Pn10E
Acceleration
-Pn10E
PI Control PI Control
0
PI
P
P
Time
Rotation
Position
error
Speed reference
Speed
Motor speed
Time
P Control PI Control
Pn10F
PI

YASKAWA SGDV series Specifications

General

Series	SGDV
Communication	MECHATROLINK-II, MECHATROLINK-III, EtherCAT
Control Modes	Position, Speed, Torque
Protection Features	Overcurrent, Overvoltage, Undervoltage, Encoder error
Ambient Temperature	0°C to 55°C
Cooling Method	Natural cooling or forced air cooling
Voltage	200V, 400V
Weight	Varies depending on model (e.g., 0.6 kg to 10 kg)
