YOKOGAWA AQ7280 User Manual

6-5
IM AQ7280-01EN
File Operation and Printing
1
2
3
4
5
6
7
8
Index

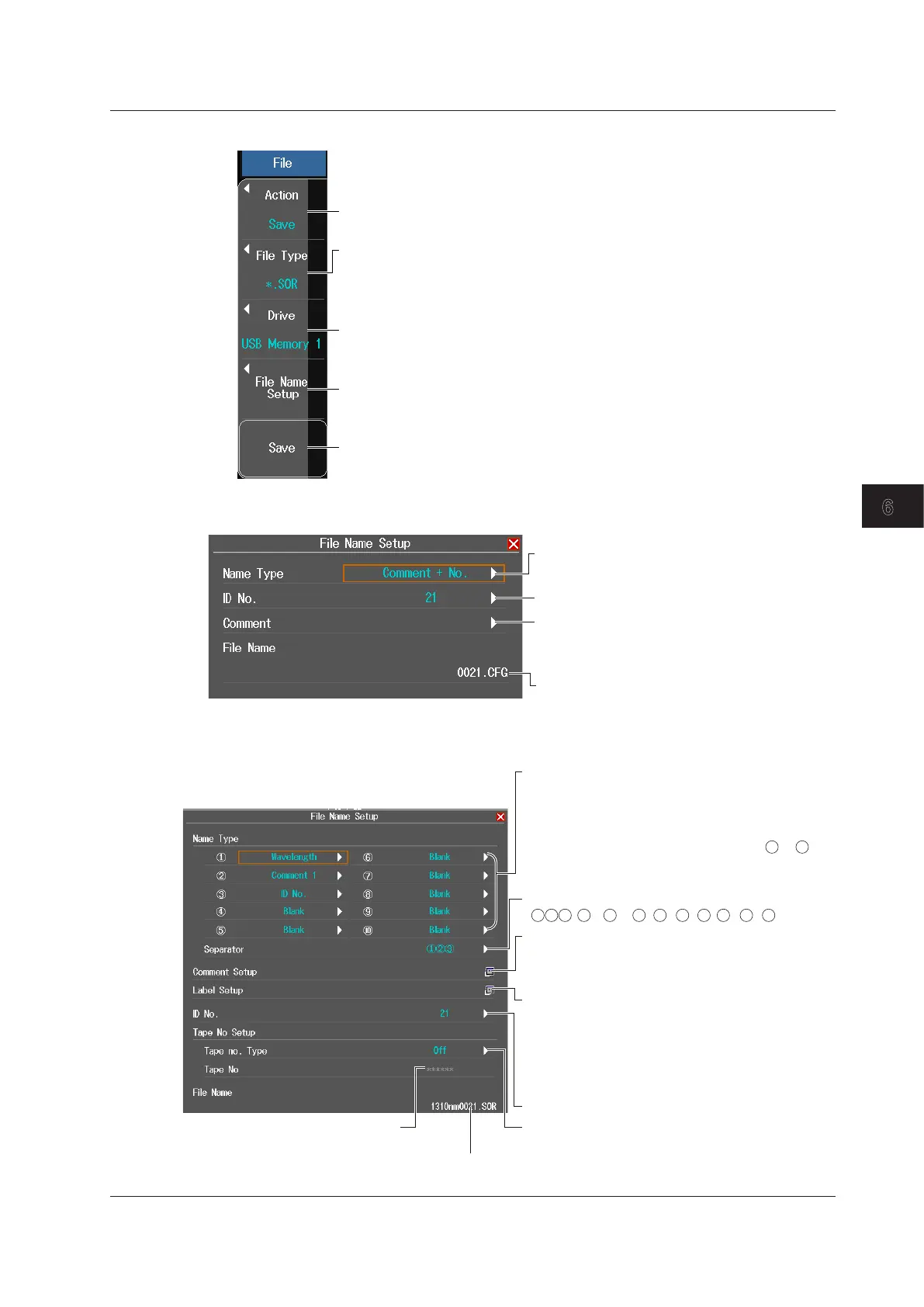

• When the fiber inspection probe feature is in use
Set the action (Save, Load).
Set the file type.
Set the extension for saving or loading.
For details, see the explanation later in this section.
Set the save destination drive
(Int. Memory, USB Memory 1, USB Memory 2, SD Card).
Set the file name.
Set the file name format. You can set this when Action is set to Save.
Start saving or loading.
This soft key is Save or Load depending on the Action setting.
File Name Setup Screen
• When a top screen feature is in use
Set the file name type
(No., Comment, Comment + No., No. + Comment).
Set the ID number (0 to 9999).
Set a comment (up to 30 characters).
Enter a comment by following the procedure provided
in “Entering Character Strings” in the Getting Started
Guide, IM AQ7280-02EN.
File name
The file name that is determined by the above
settings is displayed.
• When the OTDR, OTDR Smart Mapper, Fault Locator, or power meter feature is in use
Set the file name type (ID No., Wavelength,
Comment 1 to Comment 10, Company Name, Name,
Cable ID, Fiber ID, Cable Code, Originating Loc,
Terminating Loc, Distance Range, Pulse Width,
Attenuation, Average Method, Duration/Times).
Set the items that will be entered into parts to of
the file name. For Duration/Times, either one is
displayed depending on the average unit setting.
1
10
Set the separator
, _ _ ,
~ ~
,
^ ^
1 2 3 1 2 3 1 2 3 1 2 3
( )
Set a comment (up to 30 characters).
Enter a comment by following the procedure provided
in “Entering Character Strings” in the Getting Started
Guide, IM AQ7280-02EN.
Set the label.
On the screen that appears, enter the values for the
items according to “Entering Character Strings” in the
Getting Started Guide, IM AQ7280-02EN or select from
the displayed options. The label items are company
name, name, cable ID, fiber ID, fiber type, cable code,
start position, end position, and current data flag.
Set the ID number (0 to 9999).
Set the tape number type (Off, a-b(2), a-c(3),
a-d(4), a-e(5), a-f(6), a-g(7), a-h(8)).
Set the tape number start character.
Set, within the specified tape number type
range, the tape number start character that
will be attached to the file name.
File name
The file name that is determined by the above settings is displayed.
6.3 Saving and Loading Data
