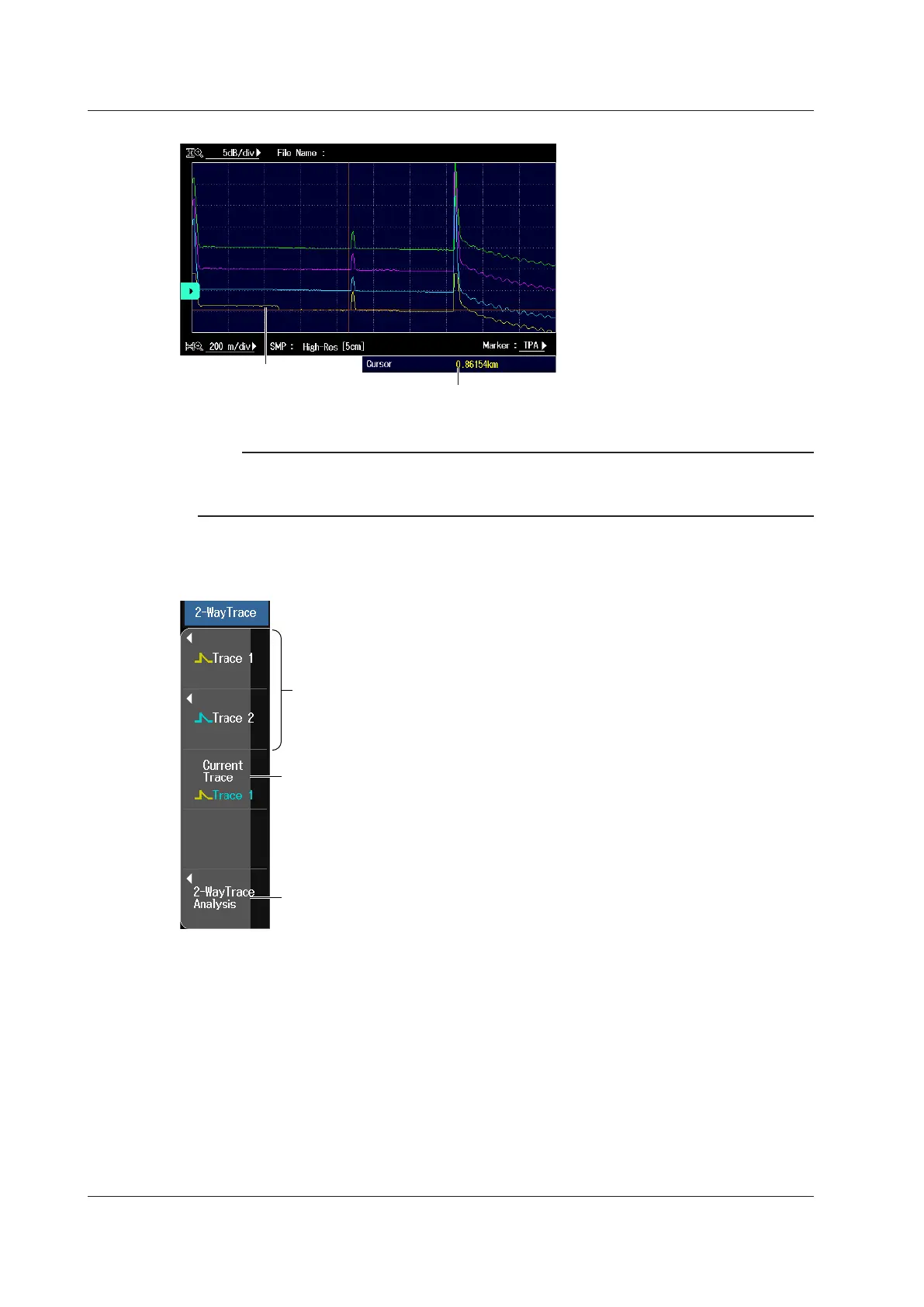

Waveform display example
Current trace
Cursor value (distance) of
the current trace
Note
• The current waveform display before switching to the multi trace analysis screen is read into the trace that
is selected as the current trace.
• Changing the current trace clears the vertical waveform shift.
2-Way Trace
Press the 2-WayTrace soft key to display the 2-WayTrace menu.
Load traces to display in Trace 1 and Trace 2.
The file operation screen will appear.
See section 6.3.
Combines the events of two traces
Selects the current trace (Trace1, Trace2)
Select the trace you want to display on the screen.
Loading Waveform Data
Traces that meet the following conditions can be combined.
• Event lists are available.
• The wavelengths and pulse widths of the two traces are the same.
• The distances from the measurement reference (S) to the end event (E) are the same.
Selecting the Current Trace
Select the trace you want to display on the screen. Events of the two traces that have been
combined are displayed on the current trace.
4.1 Analyzing Waveforms
