8.3 Viewing the Product Information
Procedure
Product Information Screen

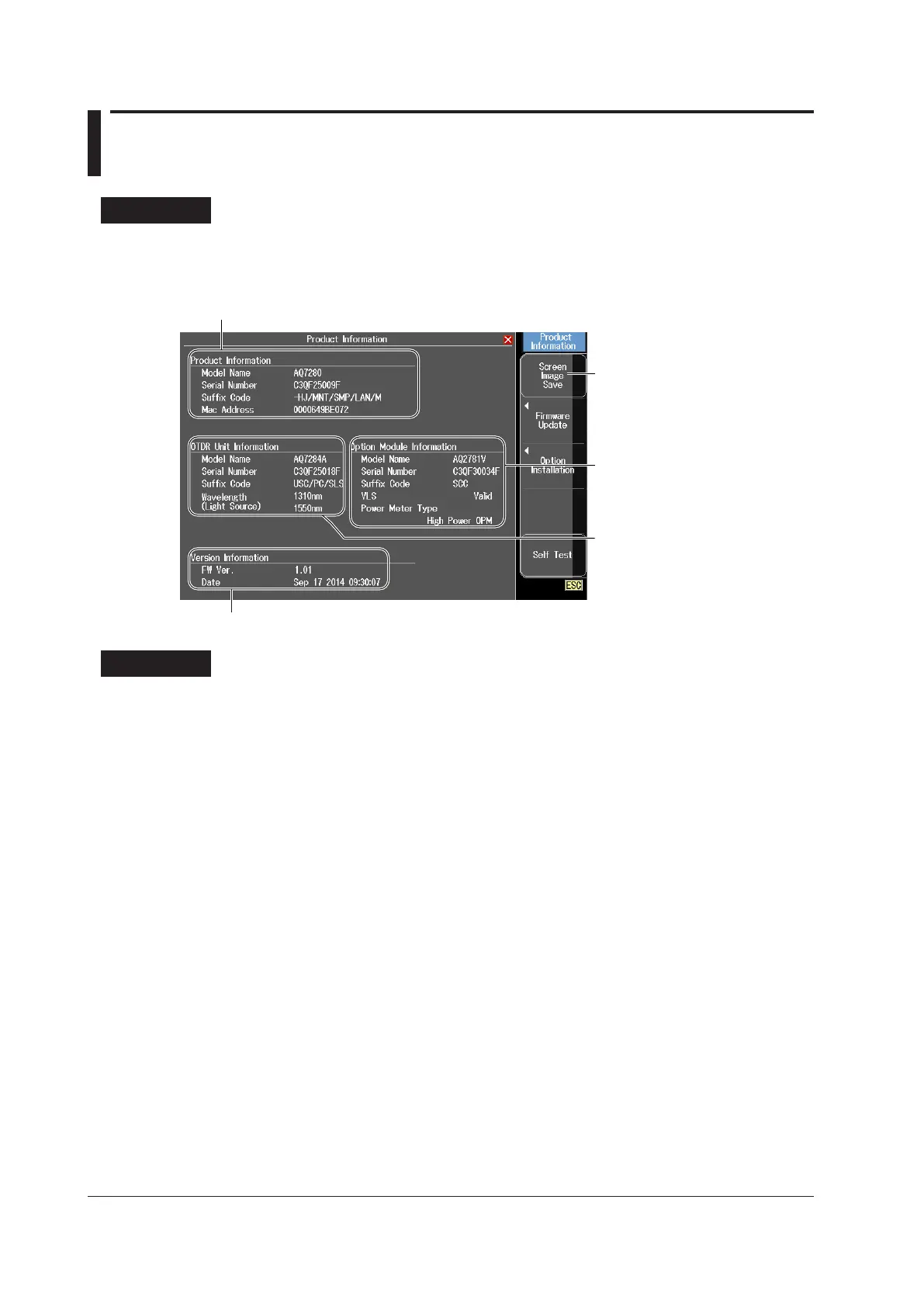

On the top menu, press SETUP and then the Product Information soft key to display the following
screen.
Saves a screen image
Mainframe information
OPM and VLS module information
Displayed when an OPM or VLS
module is installed in the mainframe.
OTDR unit information
Firmware information
Explanation
The Product Information screen displays the information (model, serial number, suffix code) inscribed
on the name plate affixed to the AQ7280, measurement light wavelength, and firmware version
information.
Saving the Screen Image
The screen image of the product information can be saved in internal memory.
File name: Systeminfo.BMP
