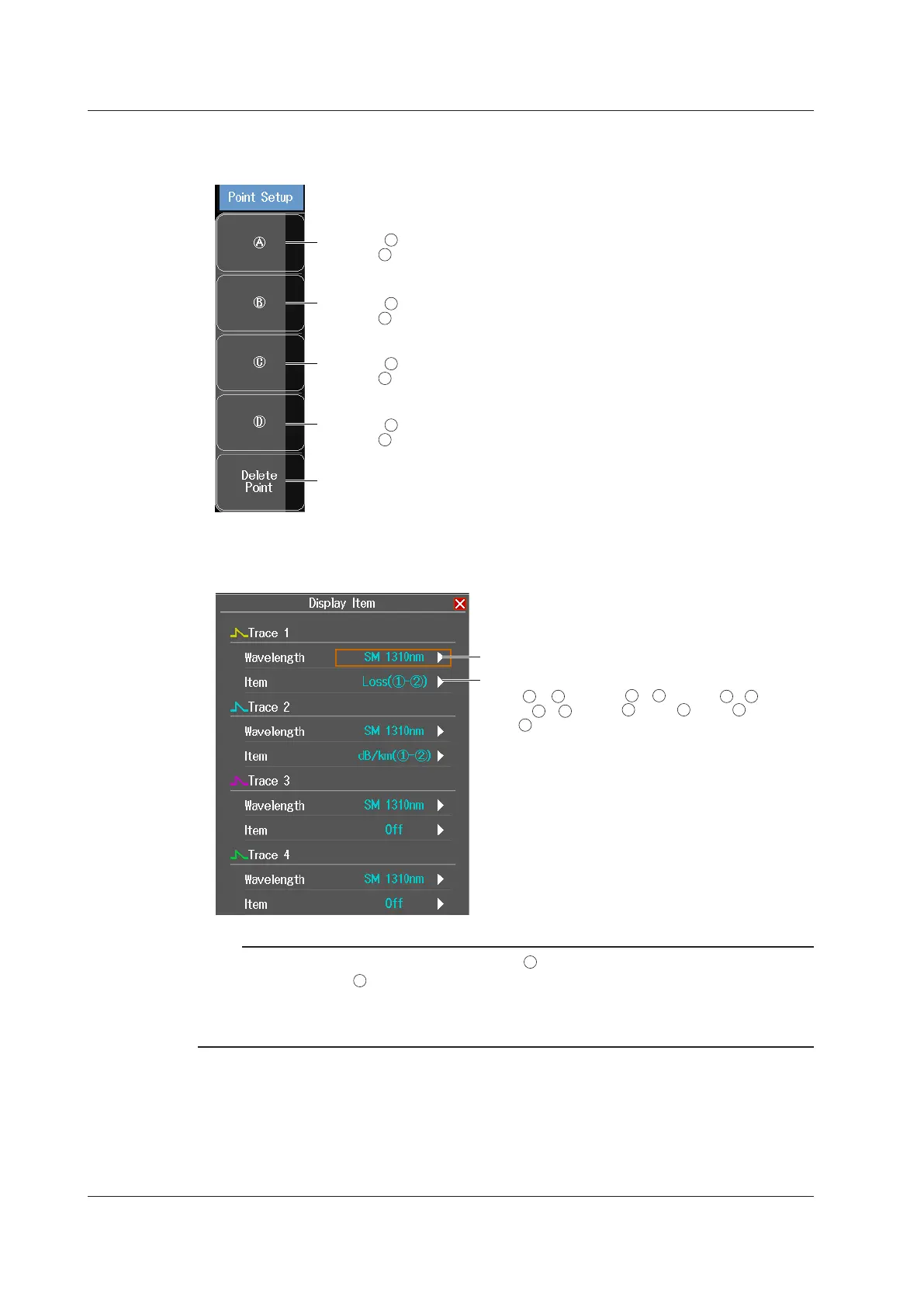

Setting Points
4.
Press a point setting soft key to dislay a point setup menu.
Sets point
Sets point at the cursor position.
Clears the point display
Sets point
Sets point at the cursor position.
Sets point
Sets point at the cursor position.
Sets point
Sets point at the cursor position.
A
A
B
B
C
C
D
D
Setting Display Items
5.
Press the Display Item soft key to display the following screen.
Select the monitor item (Splice Loss, Return Loss,
Loss ( - ), dB/km ( - ), Loss ( - ),
dB/km ( - ), Point , Point , Point ,
Point )
1 2
1 2 2 3
2 3
A B C
D
Set the wavelength.
Note
• If markers are not set, after the first measurement, a
1
marker is set automatically to the near end of the
waveform data and a
2
marker to the far end.
• When a schedule measurement is being performed, you cannot set the display items.
• When a schedule measurement is being performed, you cannot perform marker or event analysis even if
you switch to waveform display.
2.9 Monitoring Optical Fiber Cables (/MNT option)
