8-11
IM AQ7280-01EN
Troubleshooting, Maintenance, and Inspection
1
2
3
4
5
6
7
8
Index
Displaying Judgment Results (Details)
4.

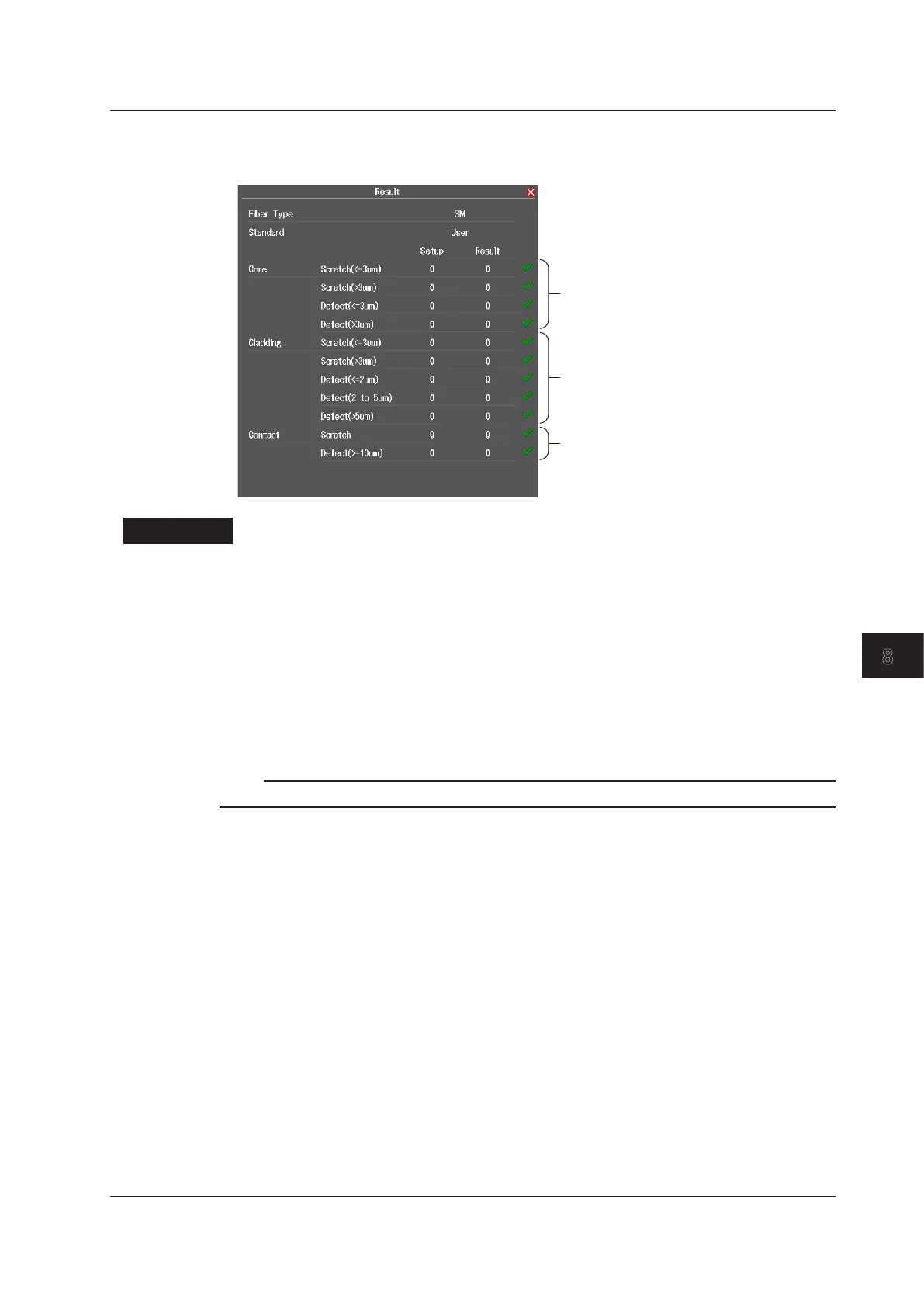

Press the Result soft key to display the following screen.
Results in the core area
Results in the cladding area
(excluding the core area)
Results in the contact area
(excluding the core and
cladding areas)
Explanation
Connecting a Fiber Inspection Probe
Hot-plugging is supported; you can connect or disconnect a USB device at any time, regardless of
whether the AQ7280 is on or off.
If you connect a USB fiber inspection probe while the AQ7280 is on, the AQ7280 will automatically
identify the probe.
For notes on connecting USB devices, see Note in section 6.1.
For information about compatible fiber inspection probes, contact your nearest YOKOGAWA dealer.
Holding the Image Display
The still image size is VGA for both the USB2.0 and USB1.1 fiber inspection probes.
Note
If a USB2.0 fiber inspection probe is connected, it will take some time to display the still image.
Saving the Screen Image
You can save the still image. Video cannot be saved.
8.6 Checking the Optical Fiber End Face for Stains
