6.10 Printing the Current Displayed Waveform
Procedure
File Menu

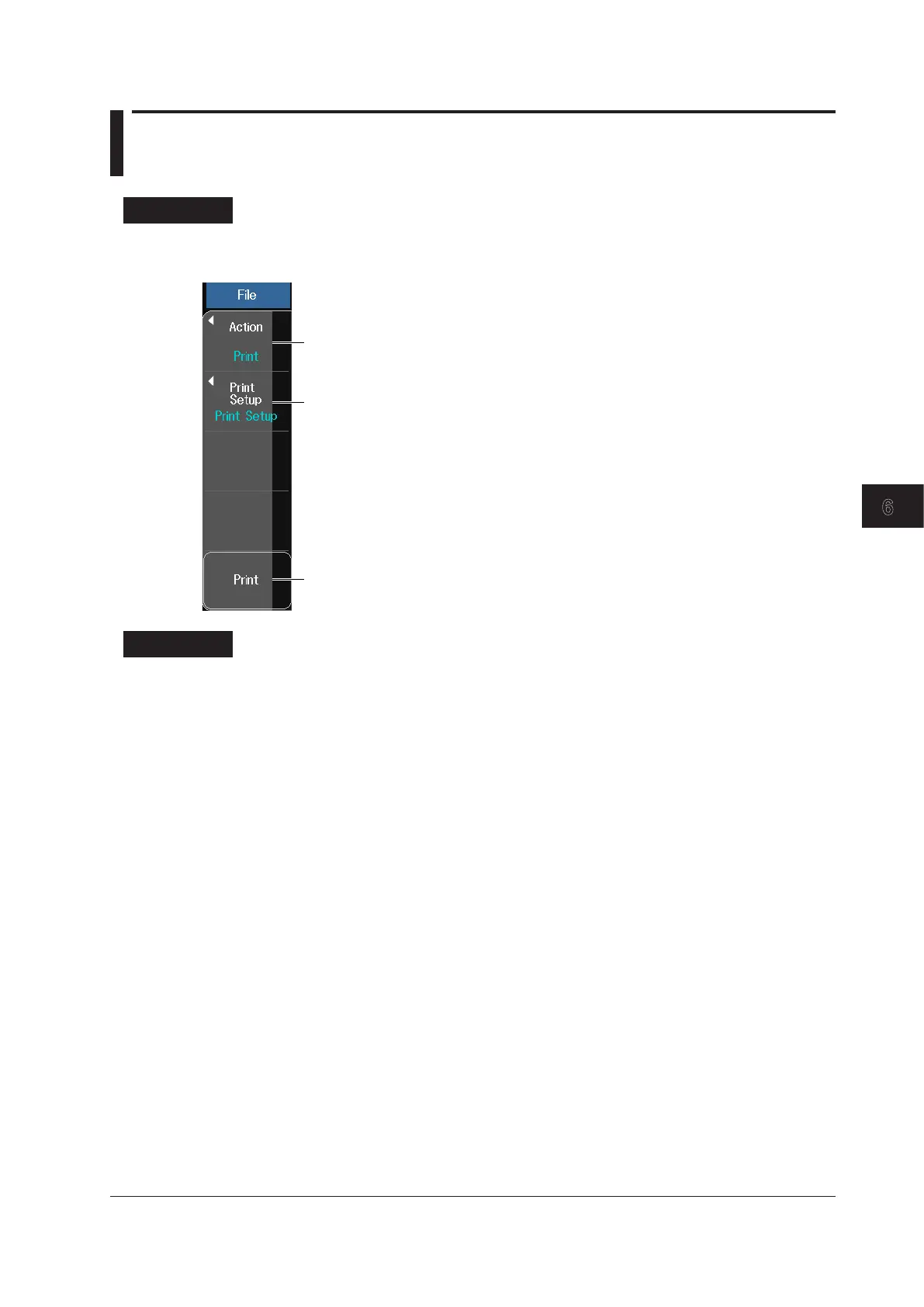

Press FILE to display the File menu.
Set the action (Print).
Configure the print settings.
Set the printer maker and print color.
When the OTDR, OTDR Smart Mapper, or Fault
Locator is in use, you can also turn the printing of
the event list on or off and the printing of the
measurement date on or off.
Start printing.
Explanation
Action
Select Print.
Configuring the Print Settings
• Maker
You can select from the following manufacturers.
HP, Epson, Seiko Instruments
• Print Color
You can select from the following print color modes.
Color, B&W
• Event List
You can print the event list when an event analysis has been performed and events have been
detected.
OFF: Only the content on the screen (hard copy) is printed.
ON: The content on the screen (hard copy), event list (event search results), measurement
conditions, and analysis conditions (index of refraction, event threshold) are printed.
• Measured Date
The date of waveform measurement can be printed (not the date of printing).
OFF: The date is not printed.
ON: The date is printed.
