YOKOGAWA AQ7280 User Manual

2-27
IM AQ7280-01EN
Optical Pulse Measurement (OTDR)
1
2
3
4
5
6
7
8
Index

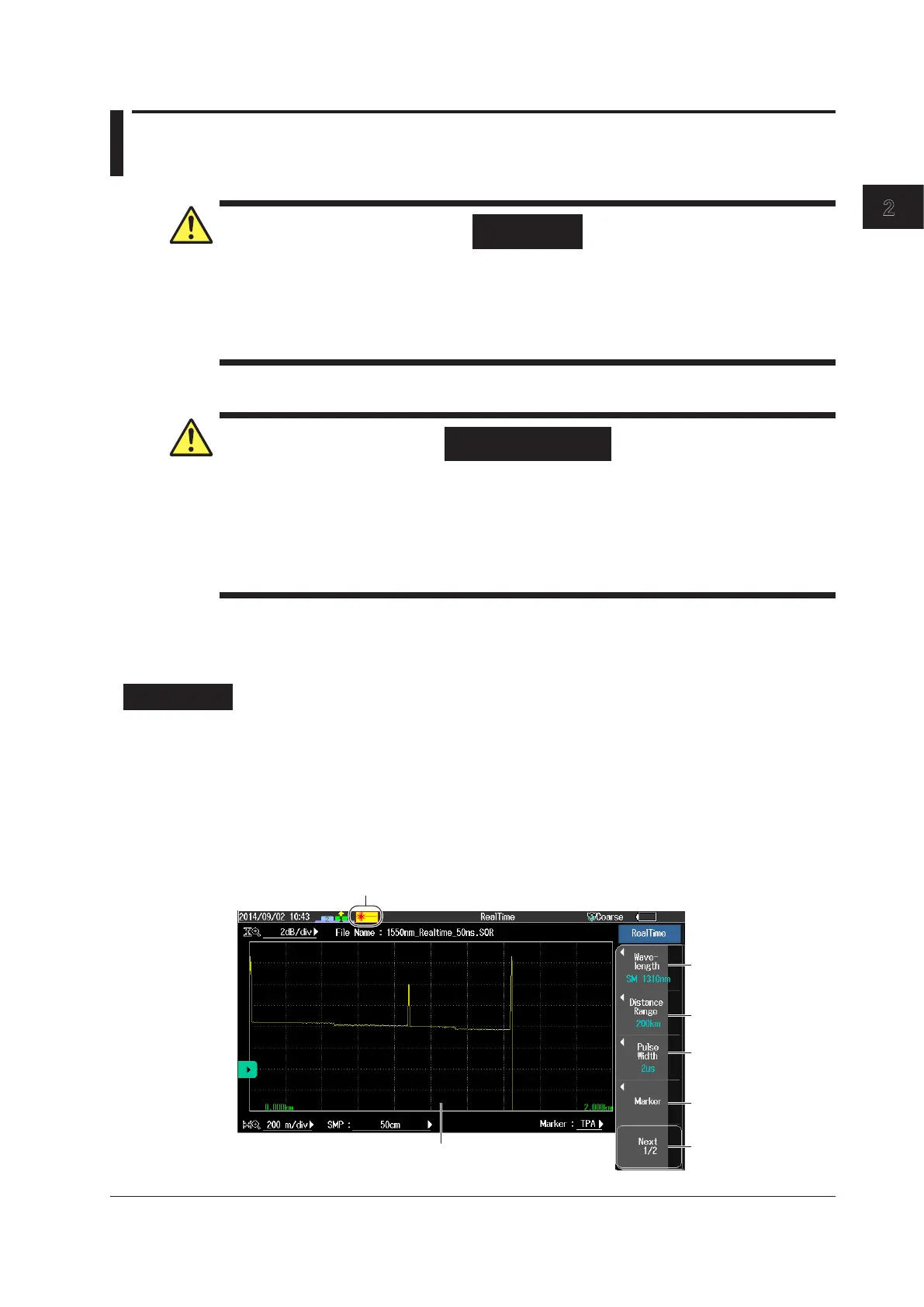

2.5 Performing Real-time Measurement
WARNING
• During measurement, light is transmitted from the light source ports. Do not disconnect the
connected optical fiber cables. Visual impairment may occur if the light enters the eye.
• Close the covers of any light source ports that do not have optical fiber cables connected
to them. Visual impairment may occur if light that is mistakenly emitted from these ports
enters the eye.
French
AVERTISSEMENT
• Lorsque l’AQ7280 génère de la lumière, la lumière est émise à travers les ports de source
lumineuse. Ne pas débrancher les câbles de fibre optique connectés. Des lésions oculaires
peuvent être causées si le faisceau lumineux pénètre l’œil.
• Couvrir les caches des ports de source lumineuse libres. Sur les modèles dotés de deux
ports de source lumineuse ou plus, protéger les yeux contre l’émission accidentelle de
lumière depuis le mauvais port.
In real-time measurement, you can view the waveform changes in real time. You can change the
conditions during measurement.
Procedure
Starting and Stopping Measurements
1.
From the top menu, select OTDR.
2.
Press REAL TIME to start a measurement. The screen shows the measurement waveform,
and the RealTime menu appears. A mark appears in the top area of the screen to indicate that
the laser light is on.
3.
During measurement, press REAL TIME to stop the measurement. The OTDR menu appears.
The mark that indicates that the laser light is on disappears.
Waveform display screen
(See section 3.1.)
Laser on indication
Set the wavelength.
See page 2-2.
Set the distance range.
See page 2-6.
Set the pulse width.
See page 2-6.
Set markers.
See section 4.1.
Displays the menu
on the next page
