Auto Save

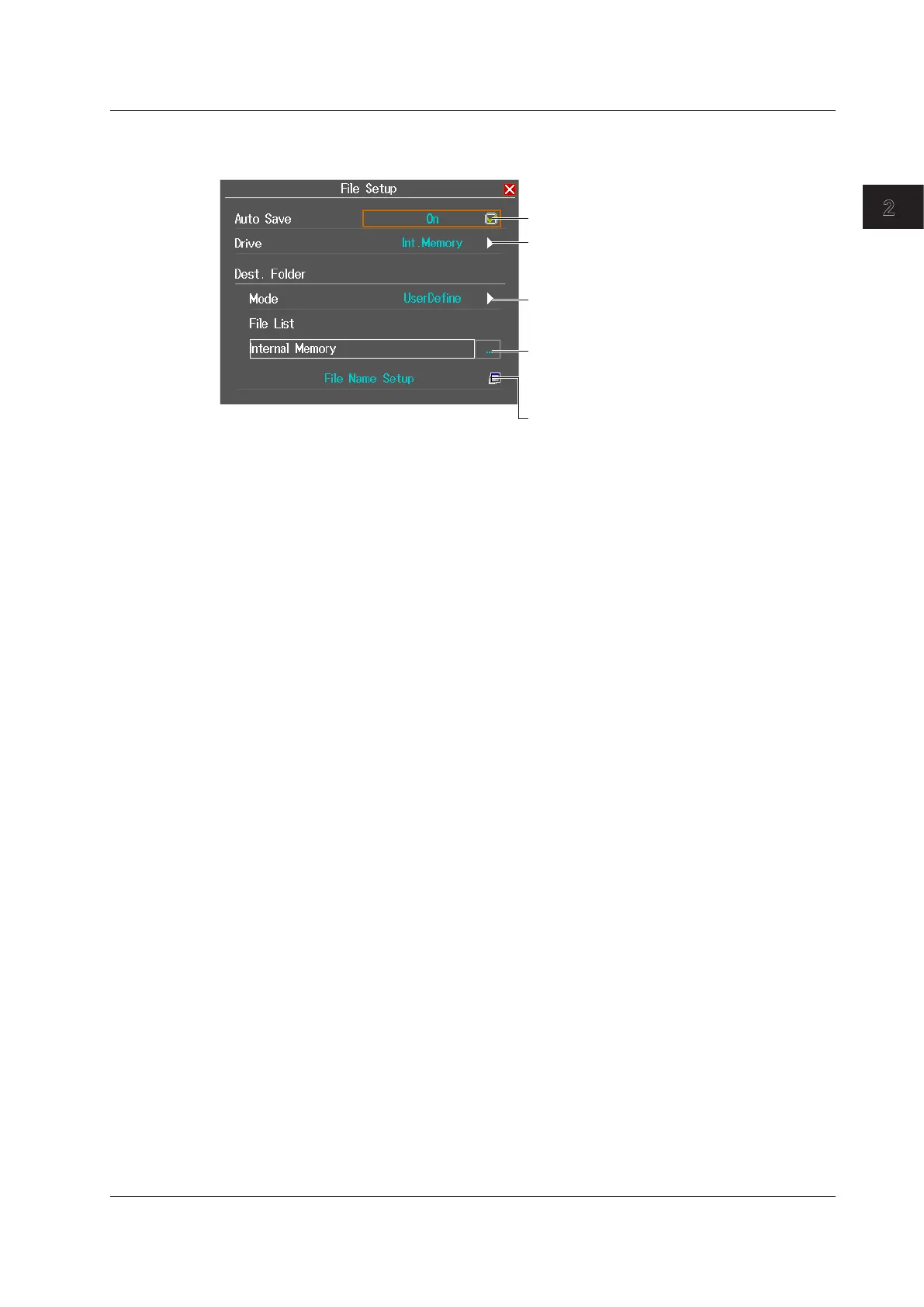

Using the rotary knob and ENTER, set Auto Save to OFF or ON. The following screen appears.
Set auto save (OFF, ON).
Select a drive (Int. Memory, SD card,
USB1, USB2).
Selectable when auto save is ON.
Set the mode (Date, UserDefine).
Selectable when auto save is ON.
Select the save destination folder.
A file list appears. For more information on file
list operations, see section 6.3.
Selectable when mode is set to UserDefine.
Set the file name.
See section 6.5.
• Mode
Select how to specify the save destination folder.
Date: In this mode, folders that are named with dates are automatically created in the
selected drive.
UserDefine: In this mode, specify the save destination folder.
• Destination Folder
Create a folder of your choice in advance in the selected drive, and select this folder as the save
destination folder.
