8-10
IM AQ7280-01EN
Note
• The pass/fail judgment function is supported only by the following fiber inspection probes.
DI-1000 (Lightel)
DI-1000L (Lightel)
• Pass/fail judgment complies with IEC 61300-3-35.

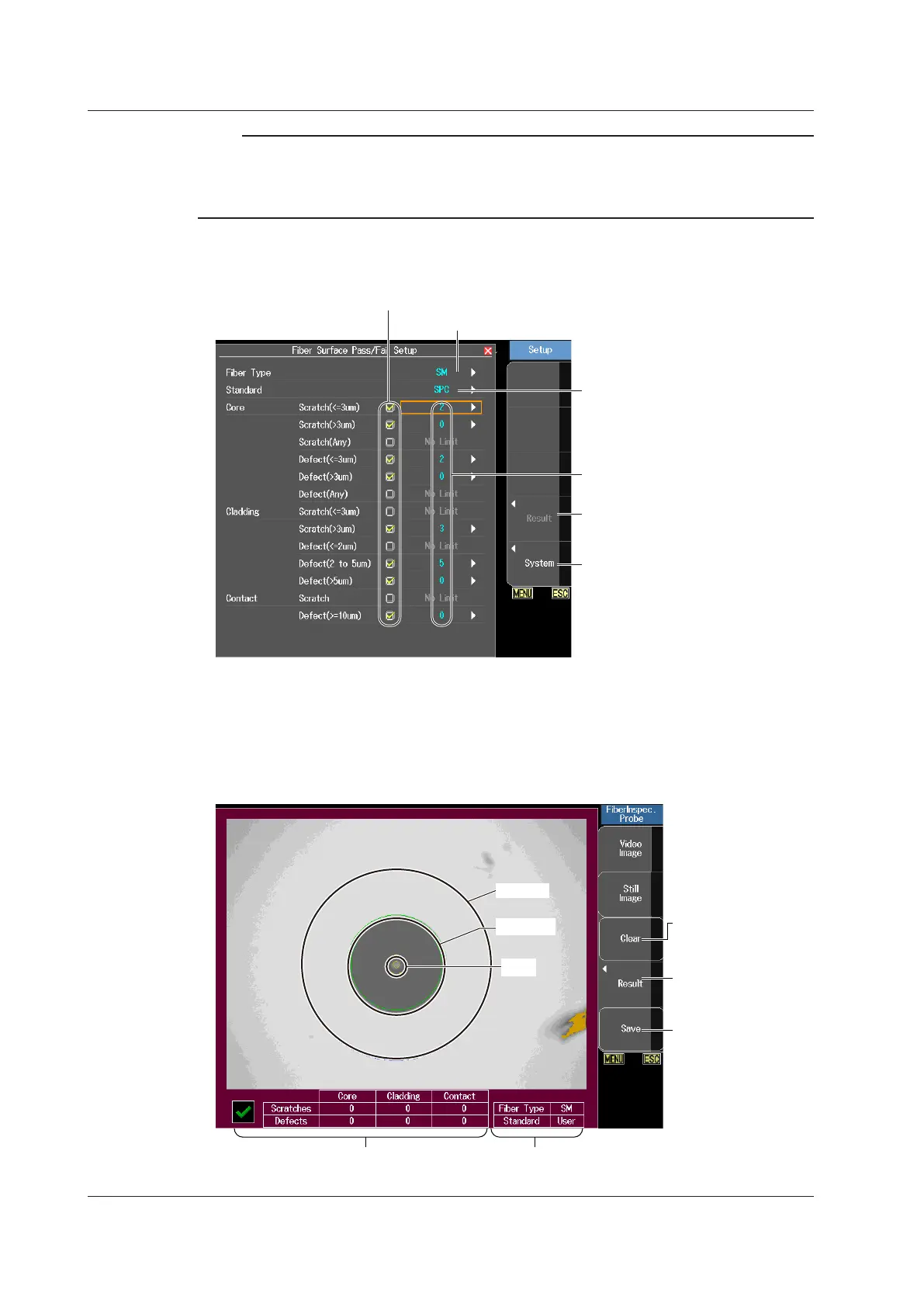

Configuring the Pass/Fail Judgment
2.
Press SETUP to display a fiber end face pass/fail setup screen.
Select the optical fiber cable (SM, MM).
Turn judgment execution on or off
Set the scratch or defect judgment
threshold values (No Limit, 0 to 100).
Displays the results.
Returns to step 3
System configuration
See chapter 7.
Select the judgment reference.
When the optical fiber cable selection is
SM: UPC, SPC, APC
MM: Default
When configuration is complete, press ESC to return to the fiber inspection probe screen.
Executing Pass/Fail Judgments
3.
Press the Judge Enable soft key. Executes pass/fail judgment and displays the judgment
results (summary). Before executing pass/fail judgment, adjust the fiber inspection probe knob
to focus on the image.
Clear
Clears the judgment
results.
Displays results
The judgment results
(details) are displayed.
Saves data
Press this soft key to
save a still image and a
judgment result file. For
the procedure to set the
file save destination, file
type, and file name, see
section 6.3.
Core
Cladding
Contact
Judgment results (summary)
Appears when pass/fail judgment is performed.
Optical fiber cable type
Appears at all times for still images.
8.6 Checking the Optical Fiber End Face for Stains
To Next Page
