Checking and Editing Waveforms

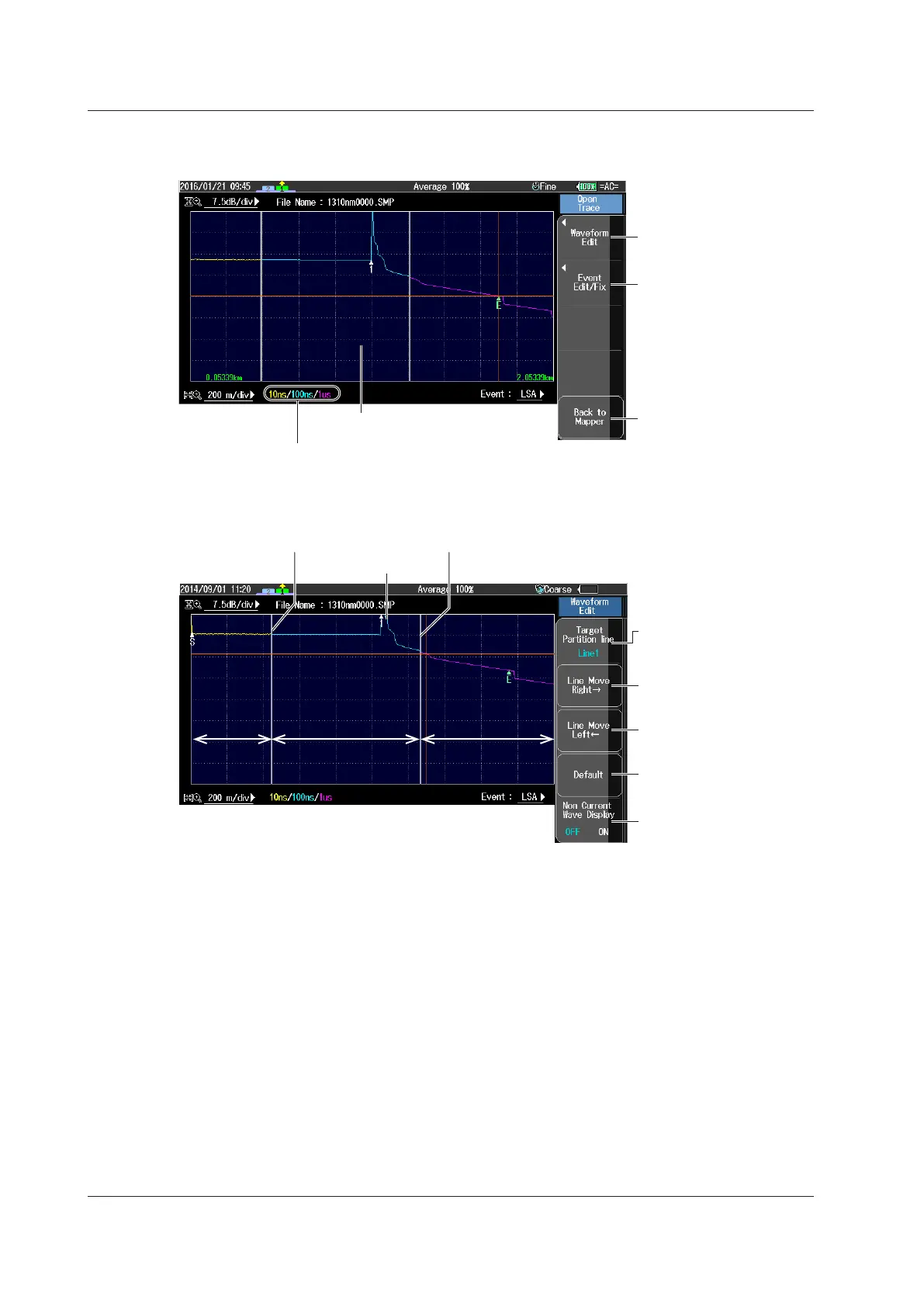

Press the Open Trace soft key to display the following screen.
Edit the waveform.
You can edit the Adapt
Trace waveform.
Edit or fix events.
See section 4.2.
You cannot edit event
markers.
Returns to the previous screen
Waveform display screen
Pulse width of the measured Adapt Trace waveform
Editing Waveforms
Press the Waveform Edit soft key to display the following screen.
Select the target
(Line1, Line2).
Waveform display outside
the target section (OFF, ON)
Waveform display
Line1 of the target section Line2 of the target section
Short range
section
(Trace1)
Mid-range section
(Trace2)
Long range section
(Trace3)
Moves the target to the right
Moves the target to the left
Resets the line positions of
the target section
You can change the distance sections by moving the lines between the sections.
You can also move the line by touching the screen.
