2-14
IM AQ7280-01EN

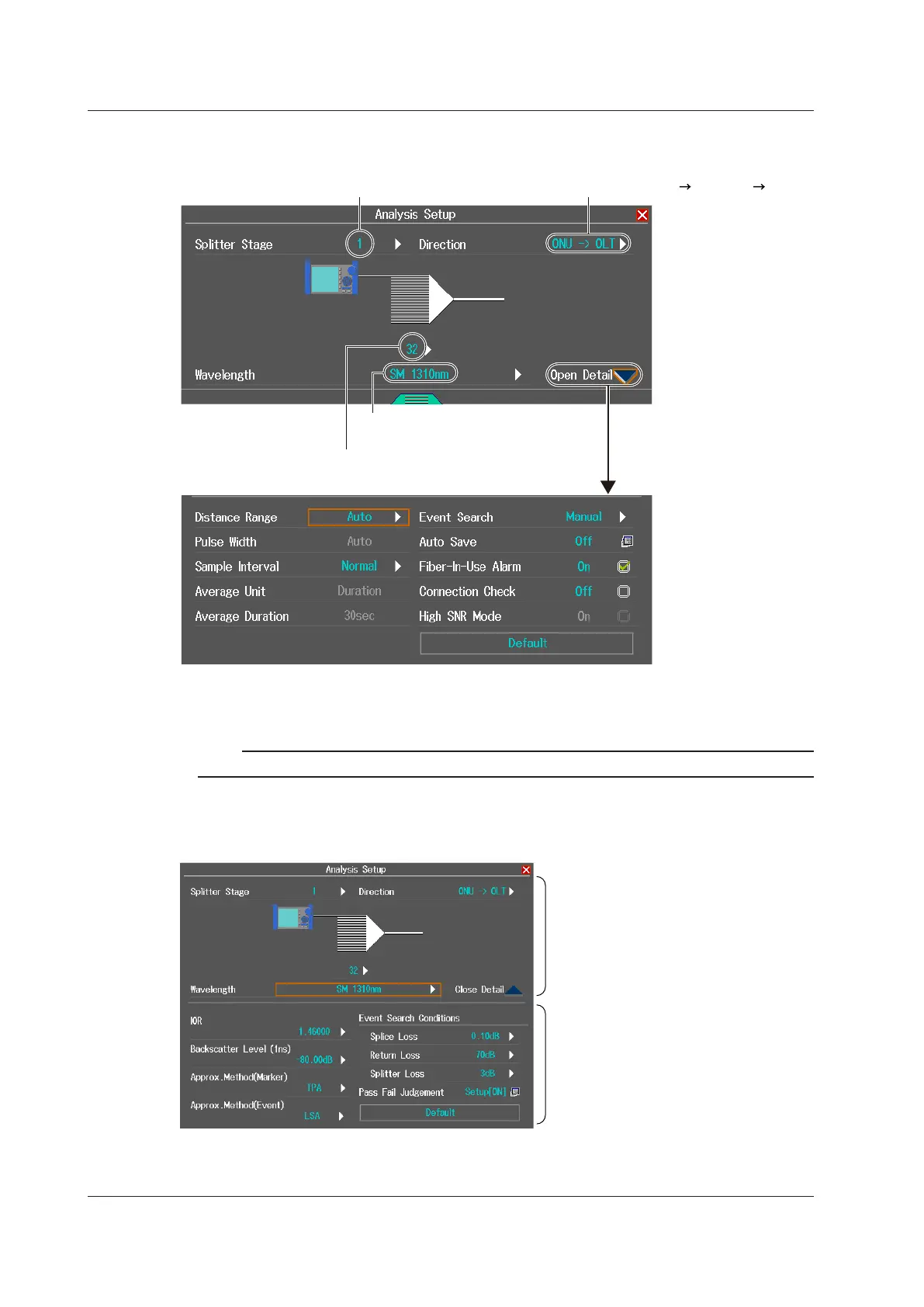

Setting Measurement Conditions in PON Mode
Press the Meas Setup soft key to display the following screen.
Set the number of splitter stages (1, 2).
Set the route (ONU OLT, OLT ONU).
Set the wavelength.
See pages 2-2 and 2-5.
Set the number of splitter splits
(2, 4, 8, 16, 32, 64, 128).
Opens the detail screen
Set measurement items.
The settings change to values that are suitable for the measurement of the specified
number of stages and splits. You can also change the settings according to your
measurement conditions. For details on measurement items, see pages 2-6 to 2-9.
Note
The total number of splits when the number of splitter stages is set to 2 is up to 128.
Setting Analysis Conditions in PON Mode
Press the Analysis Setup soft key to display the following screen.
Set the splitter and wavelength.
See “Setting Measurement
Conditions in PON Mode.”
For details on analysis items,
see pages 2-10 to 2-13.
2.1 Setting the Measurement and Analysis Conditions
To Next Page
