YOKOGAWA AQ7280 User Manual

6-22
IM AQ7280-01EN
Explanation
Action
Select Report or File Report.
Report: The current waveform displayed on the screen is included in the report and exported
to PDF.
File Report: Waveform data from a saved file is selected for the report and exported to PDF.
Save Destination Drive
For details, see the explanation in section 6.3.
Report Form
• Fiber Surface Image
Set how to include the fiber end face image (BMP format) in the report form.
OFF The fiber end face image is not included.
Manual Select the fiber end face image to include (through file operation) at the time a report is
created. This option is not available when File Report is executed.
Auto When there is a fiber end face image in BMP format with a same ID number (see page 6-9)
as that of the waveform data in SOR format to be included in the report, the image data is
automatically selected and included in the report.

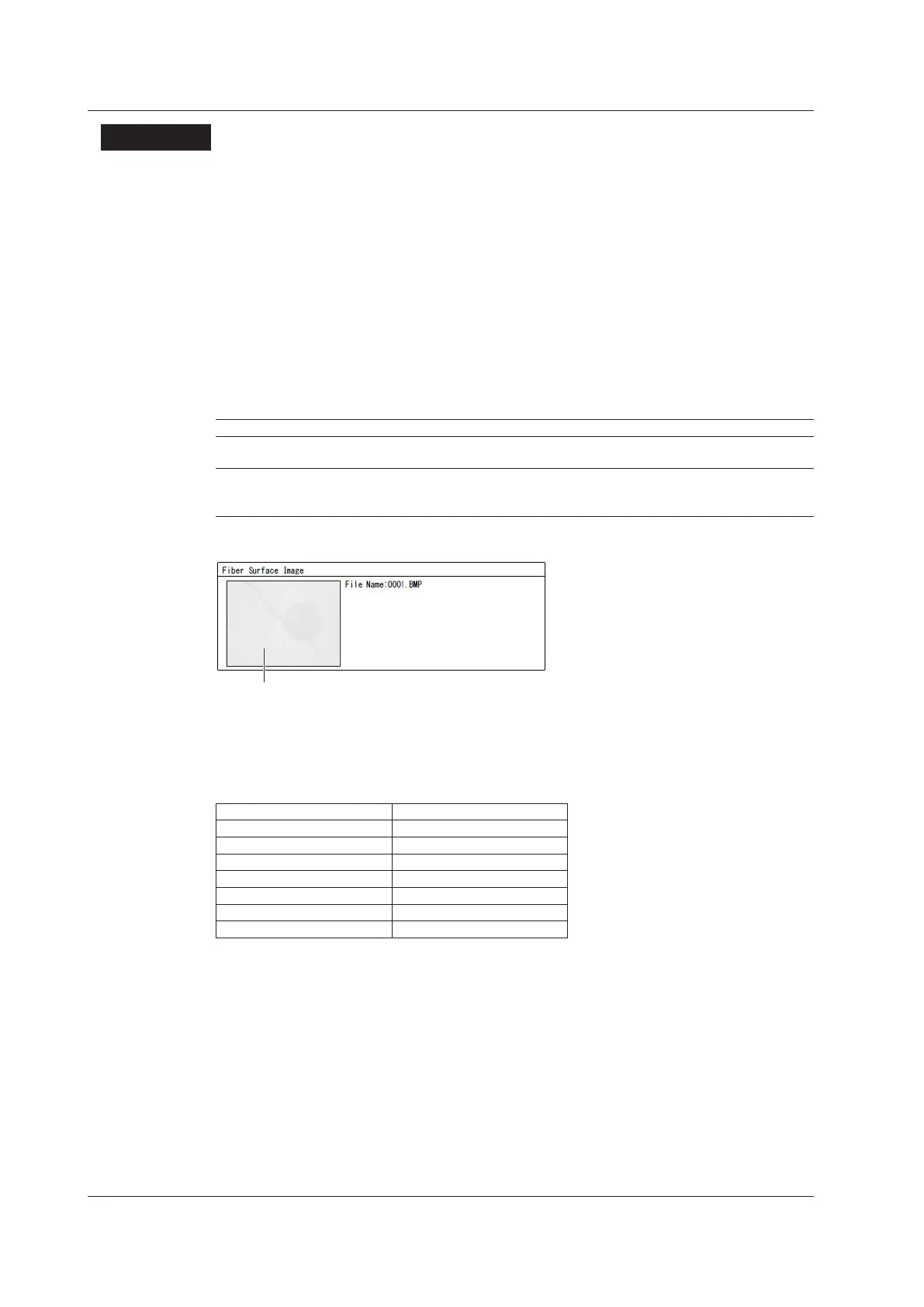

It is included as shown below.
• Measure Conditions
The following information is included.
Information such as label and company name can be specified in the file name label when the
file action is set to Save. Set these if necessary. For details, see section 6.3.
Label Originating Loc
Company Name Terminating Loc
Name Current Data Flag
Fiber ID Supplier Name
1
Fiber Type Model Name
1
Cable ID Unit Name
1
Cable Code FW Ver.
1, 2
Report Date
1
1 Automatically included by the AQ7280
2 Firmware version
• Measured Results
The following information is included.
• Total distance
• Total loss
• Total return loss
• Number of events
• Fault events
• Pass/fail judgments
6.8 Creating Reports of Waveform Data as PDF Data
