2-55
IM AQ7280-01EN
Optical Pulse Measurement (OTDR)
2
For details on how to operate the OPM module and VLS module, see the following sections.
• Optical power meter: Section 5.2
• Power checker: Section 5.2
• Light source, visible light source: Section 5.1
• Fiber end face inspection probe: Section 8.6

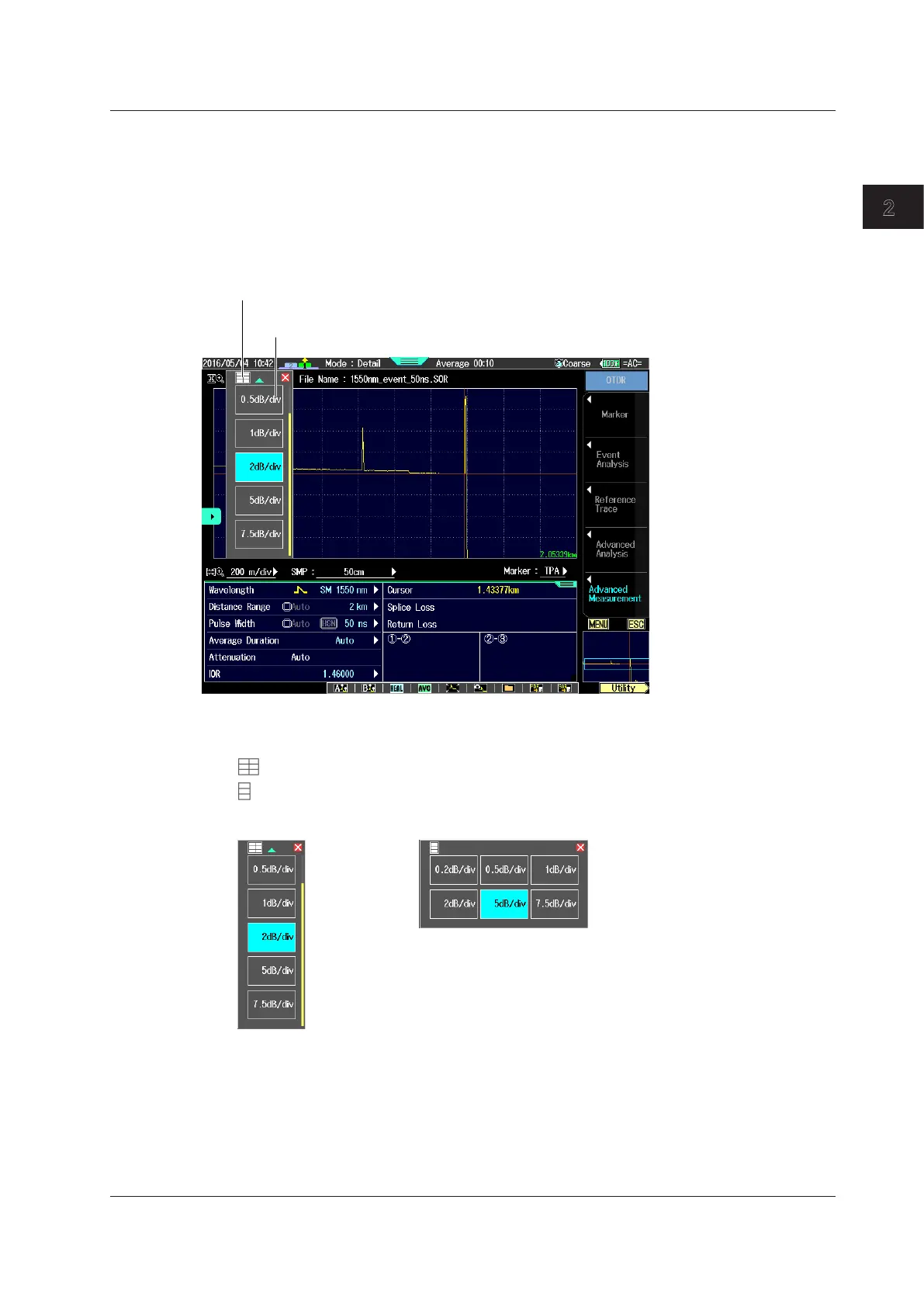

Changing the Scale
You can set the waveform amplitude span and the distance axis.
Tap to switch the menu display.
Set the display range.
Flick to scroll the menu.
• Switching the Menu Display
You can switch the menu display as follows.
: The menu is displayed in a tabular form.
: The menu is displayed in a scrollable form.
Scrollable form Tabular form
2.10 Using Convenient Touch Operation Features
To Next Page
