Zebra 110XiIII Plus Series User Manual

13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 4-47
Maintenance Section 4

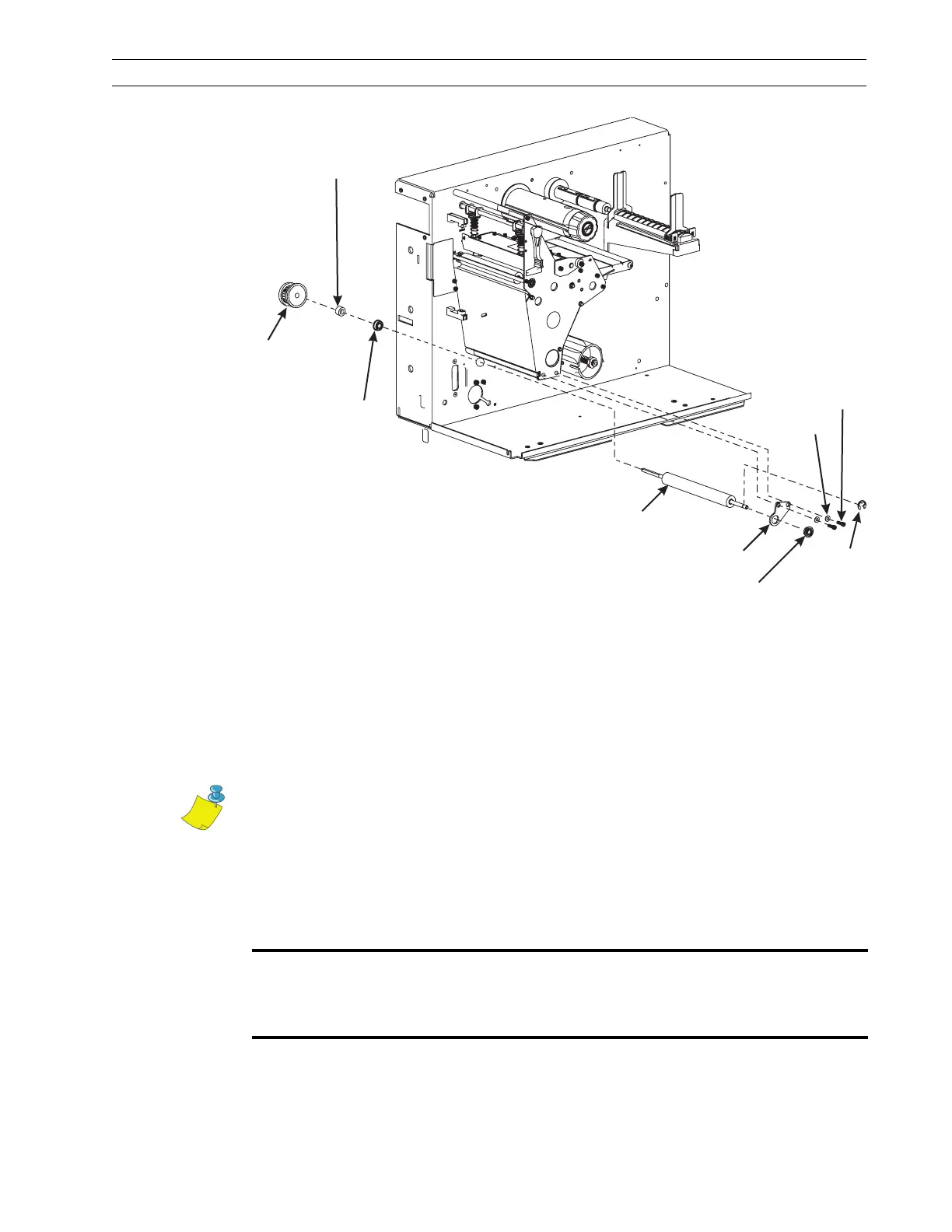

Figure 4-27. Print Mechanism View with Rewind Platen Roller
8. Refer to Figure 4-27. Loosen but do not remove the set screws in the rewind platen
pulley assembly.
9. Remove the lower platen roller pulley.
10. Remove the small spacer and bearing.
11. Push the lower platen roller to the right.
12. Remove the C-clip and bearing.
13. Slide the platen roller as far to the left as possible to free the right end and remove
the roller.
Bearing
Platen Roller
Roller Adjust Plate
Mounting
Screws
C-Clip
Washers
Bearing
Rewind Platen
Pulley
Small Spacer
H
E
A
D
C
L
O
S
E
D
O
P
E
N
Note • Do not remove the roller adjust plate unless it is damaged, twisted, or
bent. If the adjust plate is removed, the alignment is lost and an adjustment
procedure must be performed.
Caution:
Never reuse the old bearings. Use only the new bearings that were provided with
the replacement platen roller.
