13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 4-103
Maintenance Section 4

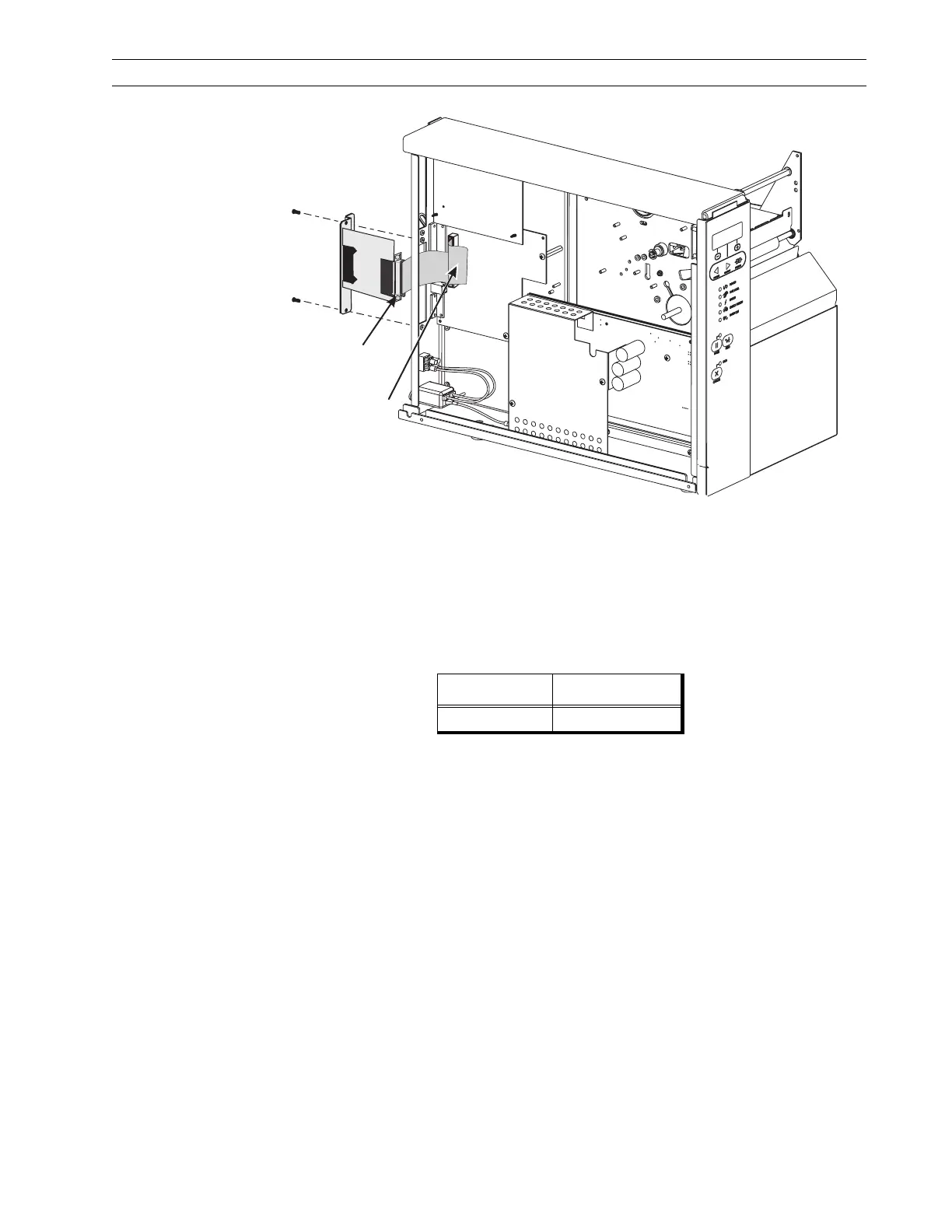

Figure 4-71. Twinax Interface Board Installation
10. Connect the twinax cable from the host computer to the mating connector on the
adapter cable.
11. Refer to Table 4-4. Set the DIP switches in the proper positions for the application,
then reconnect the AC power cord and turn the printer On (l).
12. Ensure that the printer configuration is set to:
Parameter Setting
Host Port Twinax/Coax
Data Cable
Connector
Ribbon Cable
