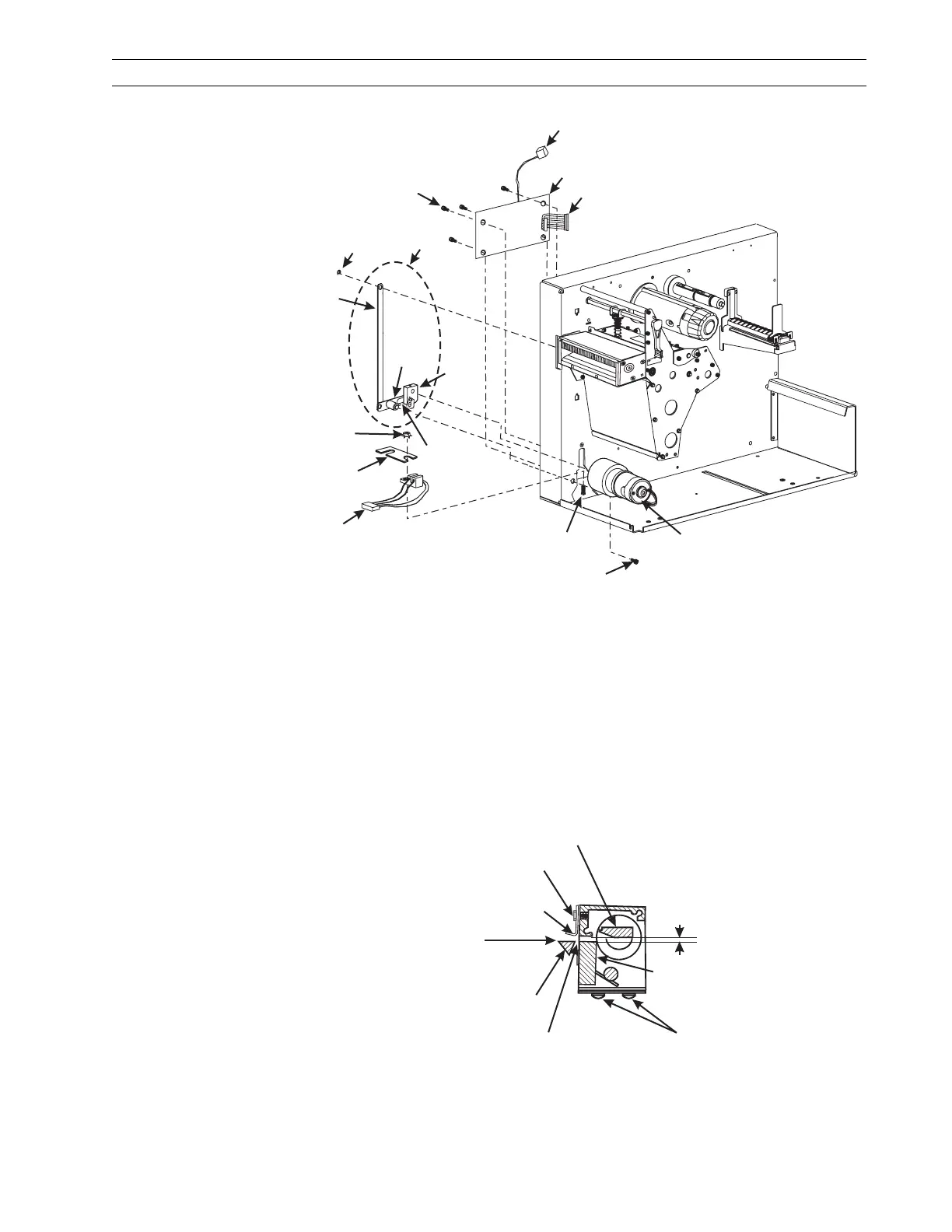

Figure 4-78. Linkage and Circuit Board Installation
4. Loosely attach the upper bracket to the side plate with two screws (9).
5. Align the slots in the lower cutter bracket with the threaded holes in the main frame
and loosely attach the bracket with two screws (9).
6. Refer to Figure 4-79. Open the printhead and observe the position of the tear-off bar
(in front of the platen roller) and the rear cutter blade. Align the rear cutter blade
parallel to the outer edge of the tear-off bar across the entire width of the media path.
The cutter mechanism must be positioned as far forward as possible while
maintaining parallelism with the tear-off bar. This should prevent interference of the
rear cutter blade with the tear-off bar. Tighten all mounting screws.
Figure 4-79. Position Cutter Mechanical Assembly
Lower
Drive
Arm
Long Drive
Link
Slotted
Link
Grease
Sensor Mounting
Post
16
15
2
1
3
4
6
5
7
14
11
HEAD OPEN
CLOSED
Rotary Cutter Blade
Upper Cutter Bracket
Mounting Screw
Media Guide
0.100 in.
(2.5 mm)
Ensure the top of the tear-off
bar is positioned above or
level with the top of the
rear cutter blade.
Tear-Off
Bar
Clearance of 0.030 in. (0.7 mm)
minimum between rear cutter blade
and tear-off bar
Screws control position
of cutter module and
squareness to media.
Rear Cutter
Blade
Relative position of the rotary cutter blade when the drive link assembly
is stopped by the optical sensor, when the power is On()inCutter Mode.l
