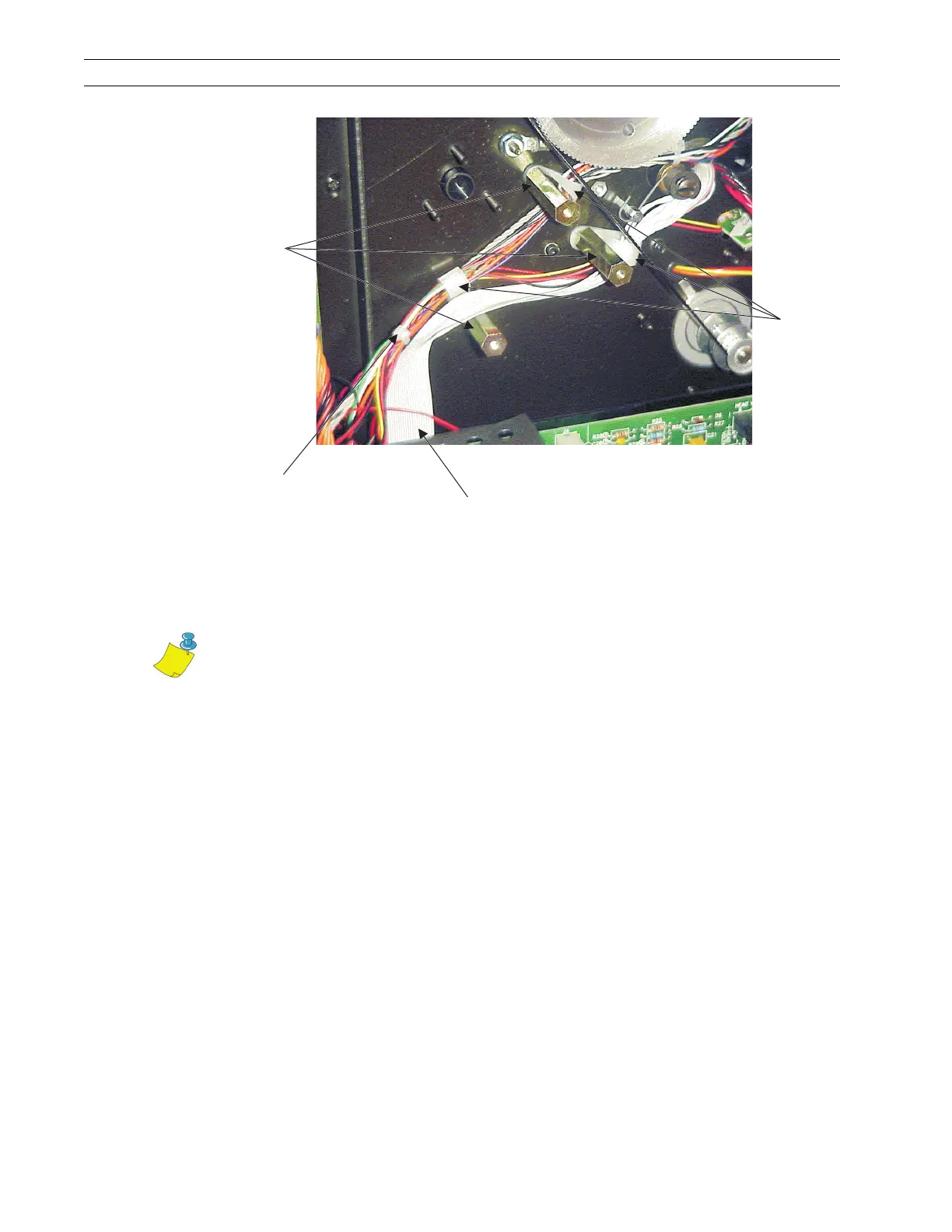

Figure 4-83. Locate Spacers
3. Refer to Figure 4-84. Install the Printhead Test Option Board using the three screws
supplied in the kit.
Spacers
Printhead
Data
Cable
Cable
Tie
Cable
Clamps
Note • Ensure all connectors are facing out.
